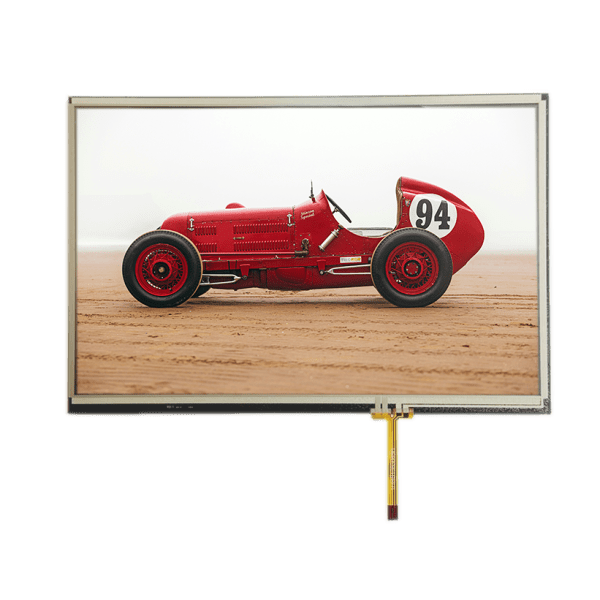

10.1″ Sunlight Readable IPS, 1280×800, 1000 Nits
$118.88CONTACT FOR VOLUME PRICING
9 in stock
Ships from Seattle- Model / Series Name: AFY1280800A0-10.1INTH
- Diagonal Dimension (inch): 10.1
- Dots WxH: 1280 x 800
- Module Size WxHxD max (mm): 228.85 x 152.74 x 4.25
- Display Mode: IPS / Normal black / Transmissive
Pricing table
| Quantity | Unit Price |
|---|---|
| 50- | $108.81 |
Contact us for larger volume orders and any other enquiries.
Description
A simple 10.1″ High Brightness / Sunlight Readable IPS Module, Transmissive / All Viewing Direction / Normal Black with 1280 x (RGB) x 800 dots.
1000 Nits TFT LCD Display – details
- 10.1″ IPS, 1280 x (RGB) x 800
- High Brightness / Sunlight Readable IPS
- Transmissive / Normal Black
- ALL Viewing Direction
- Operating Temp: -20°C to 70°C
- Storage Temp: -30°C to 80°C
- ROHS Compliant
info@orientdisplay.com.
| Model / Series Name | AFY1280800A0-10.1INTH |
| Diagonal Dimension (inch) | 10.1 |
| Dots WxH | 1280 x 800 |
| Module Size WxHxD max (mm) | 228.85 x 152.74 x 4.25 |
| Display Mode | IPS / Normal black / Transmissive |
| IC | HX8695-A HX8288-A |
| Interface Type | LVDS |
| Logic Power Supply Voltage | 3.3 V |
| Backlight | 42 Chip White LED, lf = 180mA |
| Luminance | 1000 cd/m2 |
| Touch Panel | None |
Custom Made Options
FPC or Cable Customization
Obtain a customized cable or FPC to enhance the security and efficiency of your connections, by adjusting cable length, position, pinout, or adding extra connectors.
Touch Panel with Optical Bonding
Improve your user experience by incorporating either capacitive or resistive touch screen. We will tailor the thickness, color or shape of the touch panel and cover lens to seamlessly integrate with your design with or without OCA or OCR bonding.
GUI or Interface Customization
Select the most suitable connection or GUI interface. We can integrate various interfaces such as HDMI, USB, SPI, I2C, UART, MCU, VGA, and others into your display to fulfill your design objective.
