2.1″ Sunlight Readable Round IPS, 480×480, 600 Nits
$19.23CONTACT FOR VOLUME PRICING
Free ground shipping on US orders over $50 (excl. AK and HI)
50 in stock
Ships from SeattleKey specs
- High Brightness / Sunlight Readable Round IPS
- Diagonal Dimension: 2.1 Inch
- Resolution: 480 x 480 pixels
- Interface: 24bit RGB
- Luminance: 600 cd/m2
- Viewing Direction: ALL
- Touch Panel: None
Volume pricing
| Quantity | Unit price | Save |
|---|---|---|
| 1–24 | $19.23 | — |
| 25–49 | $16.92 | −12% |
| 50+ | $14.61 | −24% |
Contact us for larger volume orders and any other enquiries.
Specifications
Downloads & resources

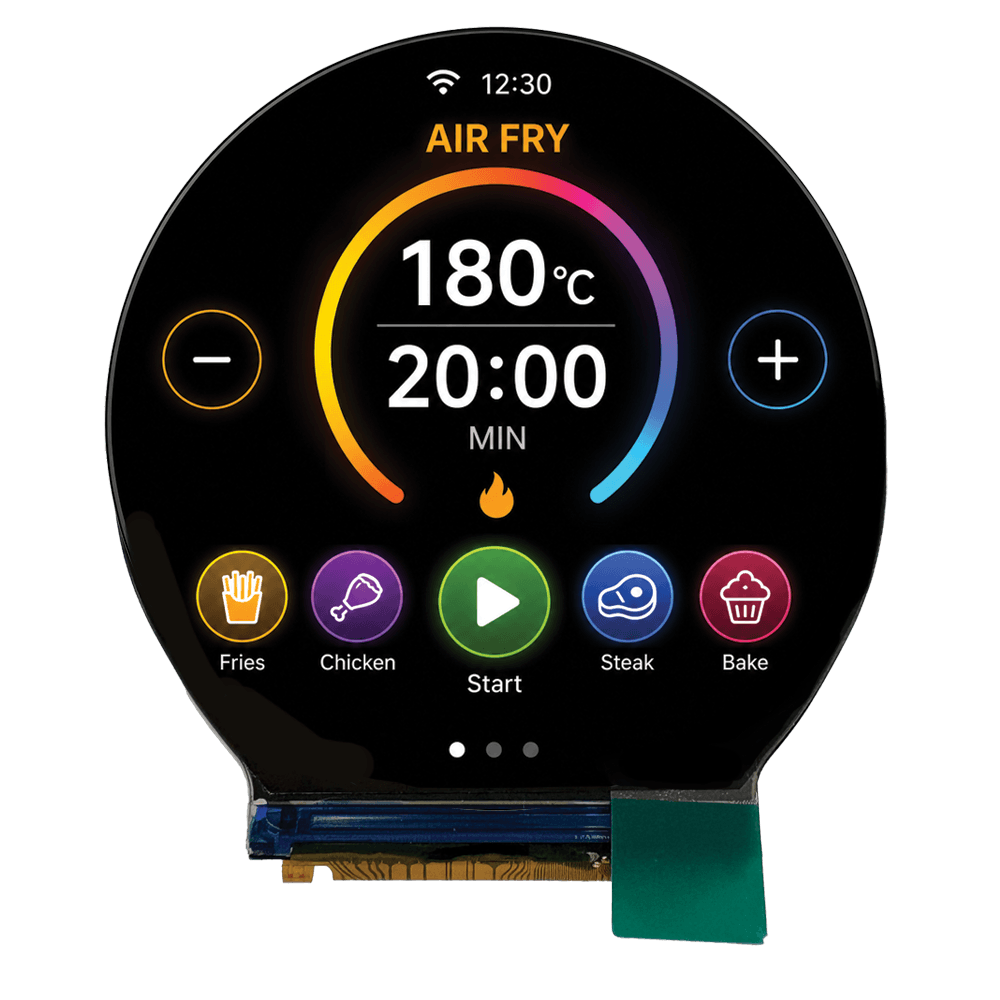

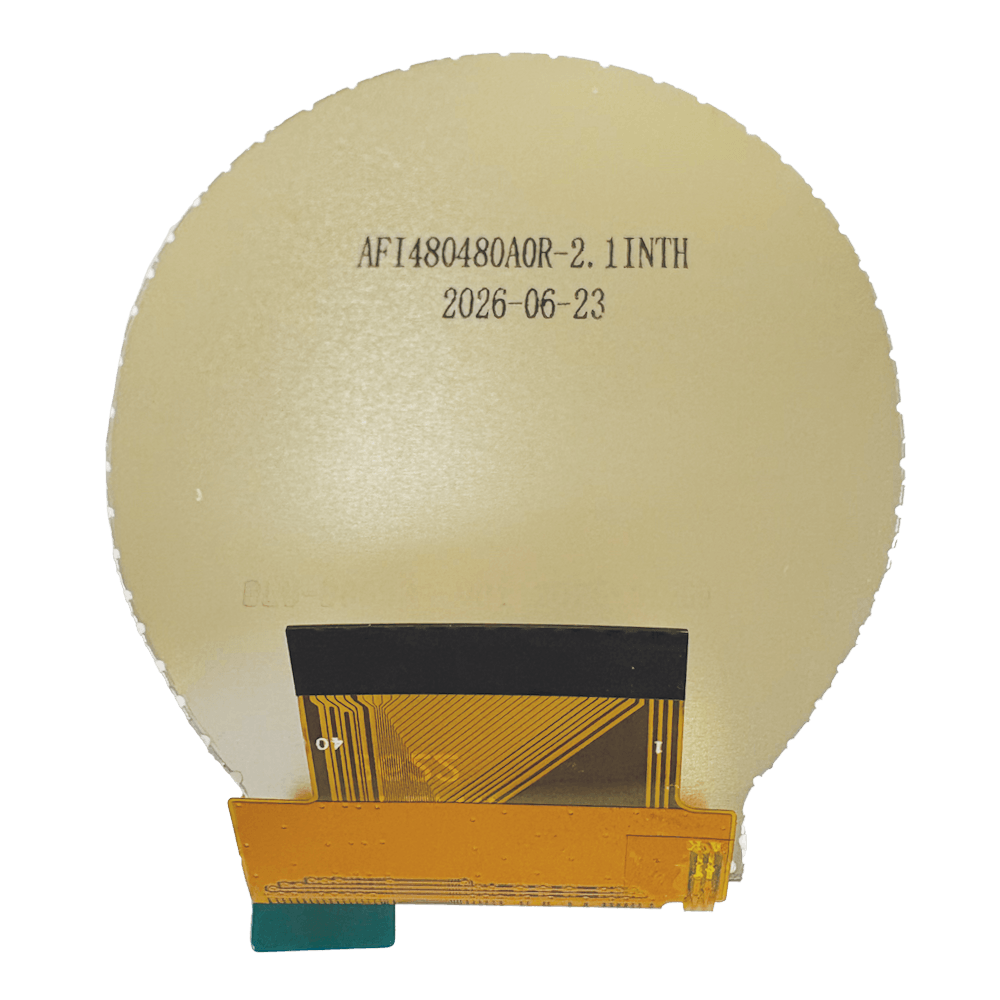

A simple 2.1″ High Brightness / Sunlight Readable Round IPS Module, Transmissive / All Viewing Direction / Normal Black with 480 x (RGB) x 480 dots.
2.1 Inch IPS Display – details
- 2.1″ Round IPS, 480 x (RGB) x 480
- High Brightness / Sunlight Readable Round IPS
- Transmissive / Normal Black
- ALL Viewing Direction
- Operating Temp: -20°C to 70°C
- Storage Temp: -30°C to 80°C
- ROHS Compliant
| Model / Series Name | AFI480480A0R-2.1INTH |
| Diagonal Dimension (inch) | 2.1 |
| Dots WxH | 480 x 480 |
| Module Size WxHxT max (mm) | 56.18 x 59.71 x 2.2 |
| Display Mode | Round IPS / Normal black / Transmissive / Anti-glare |
| IC | ST7701S |
| Interface Type | 24bit RGB |
| Logic Power Supply Voltage | 3.3V |
| Backlight | 2x4White LED |
| Luminance | 600 cd/m2 |
| Touch Panel | None |
Custom Made Options
FPC or Cable Customization
Obtain a customized cable or FPC to enhance the security and efficiency of your connections, by adjusting cable length, position, pinout, or adding extra connectors.
Touch Panel with Optical Bonding
Improve your user experience by incorporating either capacitive or resistive touch screen. We will tailor the thickness, color or shape of the touch panel and cover lens to seamlessly integrate with your design with or without OCA or OCR bonding.
GUI or Interface Customization
Select the most suitable connection or GUI interface. We can integrate various interfaces such as HDMI, USB, SPI, I2C, UART, MCU, VGA, and others into your display to fulfill your design objective.
