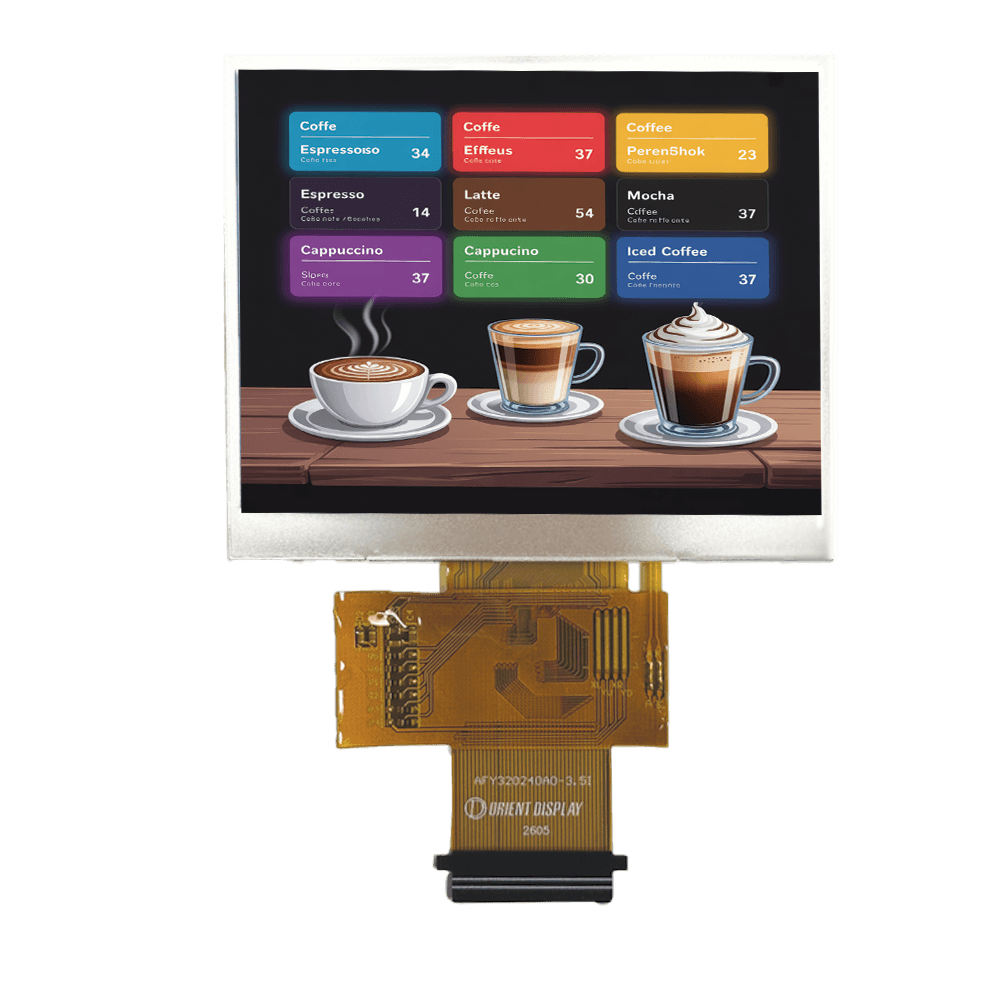

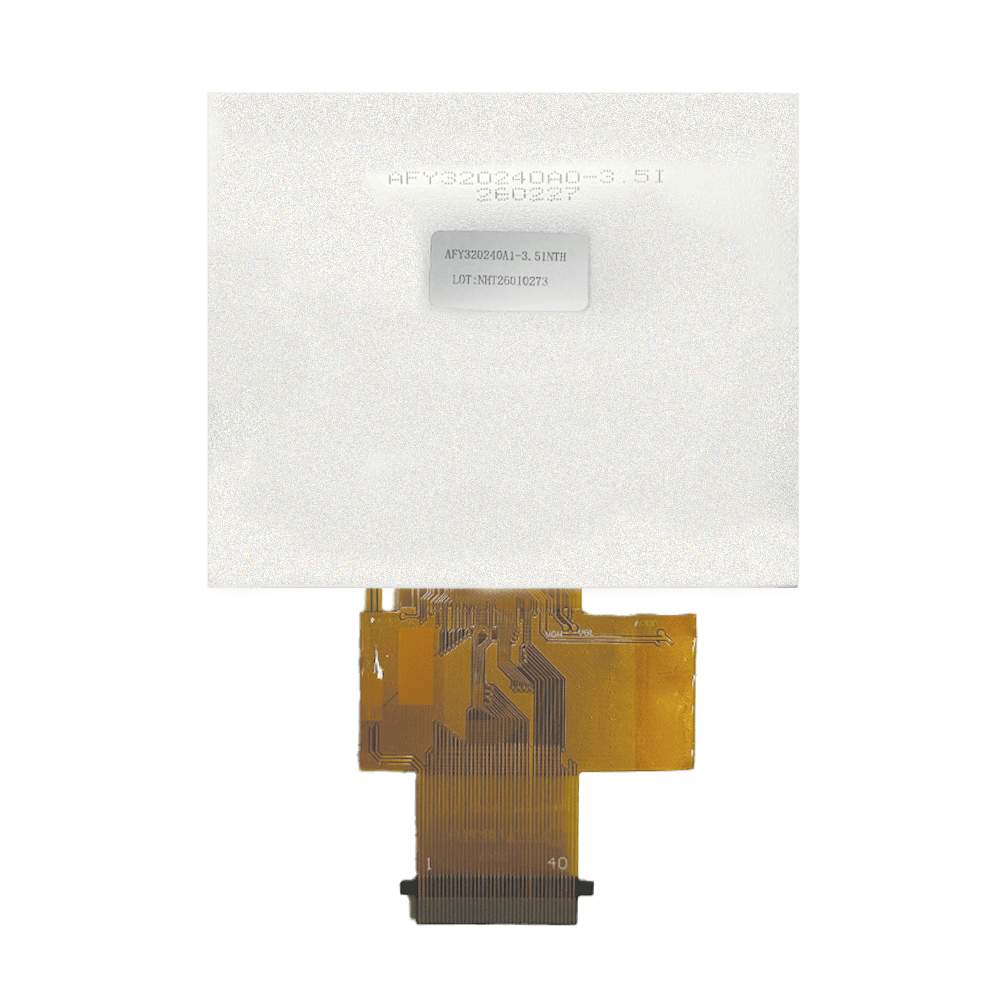

3.5″ Sunlight Readable IPS, 320×240, 1000 Nits
$20.61CONTACT FOR VOLUME PRICING
Out of stock · we can still source it
Key specs
- High Brightness / Sunlight Readable IPS
- Diagonal Dimension: 3.5 Inch
- Resolution: 320 x 240 pixels
- Interface: SPI 24bit RGB
- Luminance: 1000 cd/m2
- Viewing Direction: ALL
- Touch Panel: None
Volume pricing on quote. Tell us the quantity and we reply with a price.
Email when stock available
Specifications
A simple 3.5″ High Brightness / Sunlight Readable IPS Module, Transmissive / All Viewing Direction / Normal Black with 320 x (RGB) x 240 dots.
3.5 Inch IPS Display – details
- 3.5″ IPS, 320 x (RGB) x 240
- High Brightness / Sunlight Readable IPS
- Transmissive / Normal Black
- ALL Viewing Direction
- Operating Temp: -20°C to 70°C
- Storage Temp: -30°C to 80°C
- ROHS Compliant
| Model / Series Name | AFY320240A1-3.5INTH |
| Diagonal Dimension (inch) | 3.5 |
| Dots WxH | 320 x 240 |
| Module Size WxHxT max (mm) | 76.90 x 63.90 x 2.77 |
| Display Mode | IPS / Normal black / Transmissive / Anti-glare |
| IC | ST7272A |
| Interface Type | SPI 24bit RGB |
| Logic Power Supply Voltage | 3.3V |
| Backlight | 6 Chip White LED, lf = 40 mA |
| Luminance | 1000 cd/m2 |
| Touch Panel | None |
Custom Made Options
FPC or Cable Customization
Obtain a customized cable or FPC to enhance the security and efficiency of your connections, by adjusting cable length, position, pinout, or adding extra connectors.
Touch Panel with Optical Bonding
Improve your user experience by incorporating either capacitive or resistive touch screen. We will tailor the thickness, color or shape of the touch panel and cover lens to seamlessly integrate with your design with or without OCA or OCR bonding.
GUI or Interface Customization
Select the most suitable connection or GUI interface. We can integrate various interfaces such as HDMI, USB, SPI, I2C, UART, MCU, VGA, and others into your display to fulfill your design objective.
