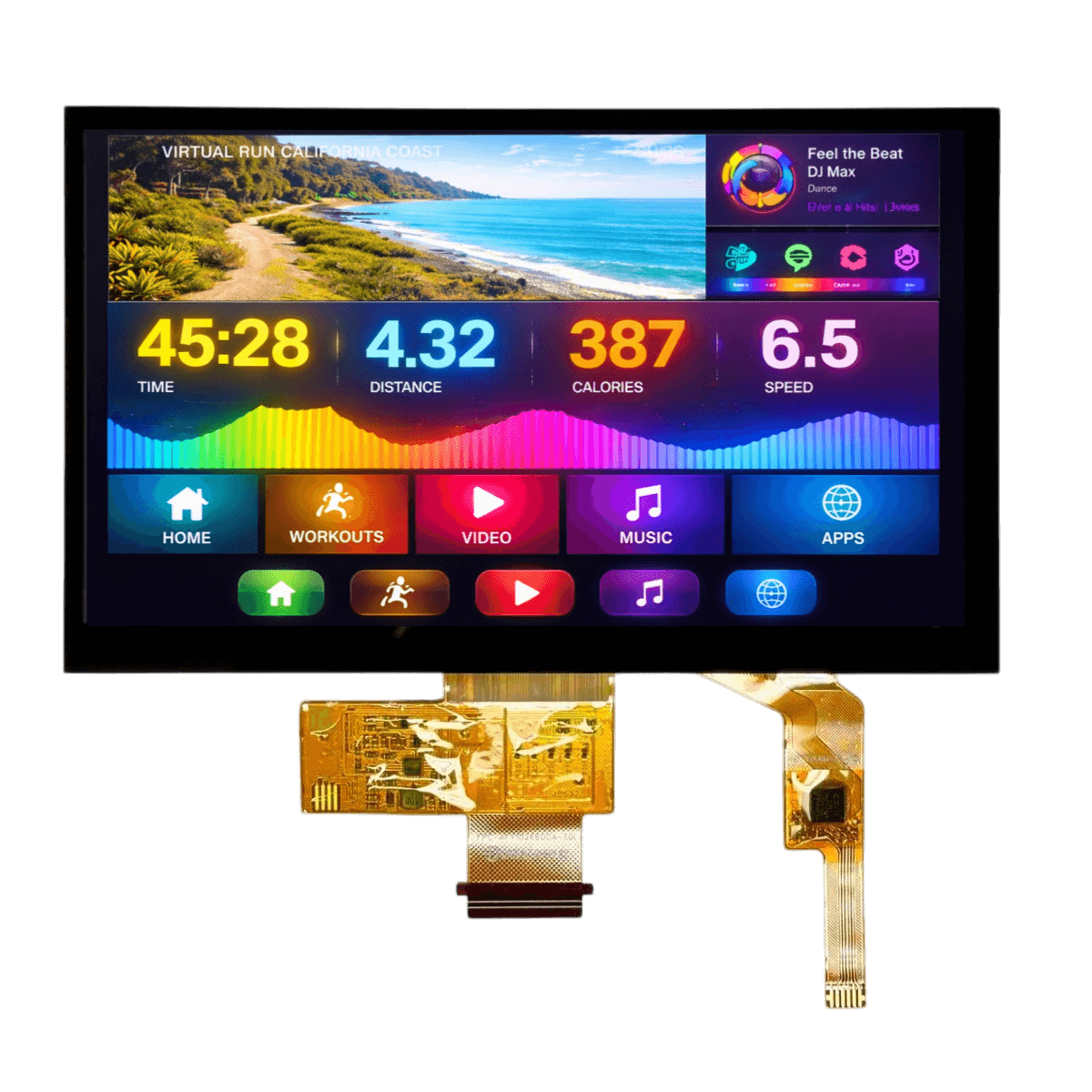

7.0″ Sunlight Readable IPS, 1024×600, 800 Nits with Capacitive Touch Panel
$64.00CONTACT FOR VOLUME PRICING
206 in stock
Ships from SeattleKey specs
- High Brightness / Sunlight Readable IPS
- Diagonal Dimension: 7 Inch
- Resolution: 1024 x 600 pixels
- Interface: LVDS
- Luminance: 800 cd/m2
- Viewing Direction: ALL
- Touch Panel: Capacitive
Volume pricing
| Quantity | Unit price | Save |
|---|---|---|
| 1–24 | $64.00 | — |
| 25–49 | $61.16 | −4% |
| 50+ | $58.32 | −9% |
Contact us for larger volume orders and any other enquiries.
Specifications
A simple 7.0″ High Brightness / Sunlight Readable IPS Module with Capacitive Touch Panel, Transmissive / All Viewing Direction / Normal Black with 1024 x (RGB) x 600 dots.
-
- 7.0″ IPS, 1024 x (RGB) x 600
- High Brightness / Sunlight Readable IPS
- Transmissive / Normal Black / Capacitive Touch Panel
- ALL Viewing Direction
- Operating Temp: -20°C to 70°C
- Storage Temp: -30°C to 80°C
- ROHS Compliant
| Model / Series Name | AFY1024600A3-7.0INTH-C |
| Diagonal Dimension (Inches) | 7.0 |
| Dots WxH | 1024 x 600 |
| Module Size WxHxD max (mm) | 164.9 x 100.0 x 7.5 |
| Display Mode | IPS / Normal black / Transmissive |
| IC | EK79001Â Â EK73215BCGA |
| Interface Type | LVDS |
| Logic Power Supply Voltage | 3.3 |
| Backlight | 30 Chip White LED, lf = 150mA |
| Luminance | 800 cd/m2 |
| Touch Panel | Capacitive |
Custom Made Options
FPC or Cable Customization
Obtain a customized cable or FPC to enhance the security and efficiency of your connections, by adjusting cable length, position, pinout, or adding extra connectors.
Touch Panel with Optical Bonding
Improve your user experience by incorporating either capacitive or resistive touch screen. We will tailor the thickness, color or shape of the touch panel and cover lens to seamlessly integrate with your design with or without OCA or OCR bonding.
GUI or Interface Customization
Select the most suitable connection or GUI interface. We can integrate various interfaces such as HDMI, USB, SPI, I2C, UART, MCU, VGA, and others into your display to fulfill your design objective.
Contact Us
Additional information
| Weight | 0.82 lbs |
|---|---|
| Dimensions | 100.00 × 164.90 × 5.40 mm |
| Backlight color | White |
| Diagonal size | 7.0 |
| Display type | TFT – IPS |
| Polarizer type | Transmissive |
| Resolution | 1024×600 |
| Touch panel | Capacitive Touch Panel |
| Viewing direction | All |
| Interface | LVDS |
