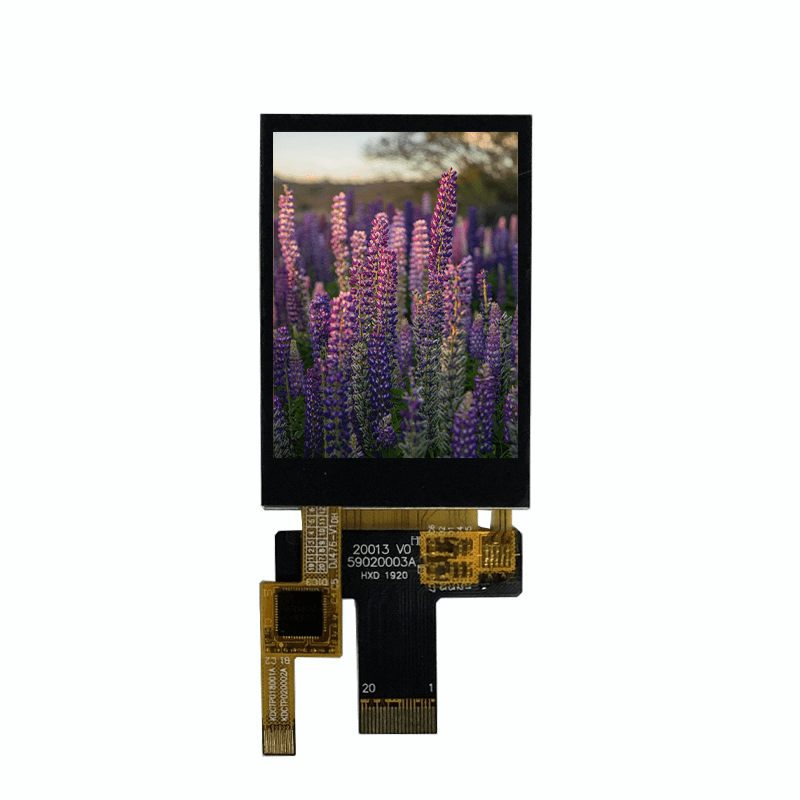

2.0″ IPS display, 240×320, 550 Nits, Capacitive Touch Panel, MIPI Interface
$21.04CONTACT FOR VOLUME PRICING
200 in stock
Ships from SeattleKey specs
- Medium Brightness / IPS
- Diagonal Dimension: 2.0 Inch
- Resolution: 240 x 320 pixels
- Interface: MIPI
- Luminance: 550 cd/m2
- Viewing Direction: ALL
- Touch Panel: Capacitive
Volume pricing
| Quantity | Unit price | Save |
|---|---|---|
| 1–24 | $21.04 | — |
| 25–49 | $18.52 | −12% |
| 50–99 | $16.00 | −24% |
| 100–199 | $14.71 | −30% |
| 200+ | $12.55 | −40% |
Contact us for larger volume orders and any other enquiries.
Specifications
A simple 2.0″ with Capacitive Touch Panel Normal Brightness / IPS Module, Transmissive / All Viewing Direction / Normal Black with 240 x 320 dots.
- 2.0″ IPS, 240 x 320
- Normal Brightness / IPS / Capacitive Touch Panel
- Transmissive / Normal Black
- ALL Viewing Direction
- Operating Temp: -20°C to 70°C
- Storage Temp: -30°C to 80°C
- ROHS Compliant
| Model / Series Name | AFR240320A0-2.0INTM-I-C |
| Diagonal Dimension (Inches) | 2.0 |
| Dots WxH | 240 x 320 |
| Module Size WxHxD max (mm) | 35.80 x 52.10 x 4.40 |
| Display Mode | IPS / Normal black / Transmissive |
| IC | JD9852 |
| Interface Type | MIPI Interface |
| Logic Power Supply Voltage | 3.3 |
| Backlight | 4 LED, WHITE, If=20mA |
| Luminance | 550 cd/m2 |
| Touch Panel | Capacitive |
Custom Made Options
FPC or Cable Customization
Obtain a customized cable or FPC to enhance the security and efficiency of your connections, by adjusting cable length, position, pinout, or adding extra connectors.
Touch Panel with Optical Bonding
Improve your user experience by incorporating either capacitive or resistive touch screen. We will tailor the thickness, color or shape of the touch panel and cover lens to seamlessly integrate with your design with or without OCA or OCR bonding.
GUI or Interface Customization
Select the most suitable connection or GUI interface. We can integrate various interfaces such as HDMI, USB, SPI, I2C, UART, MCU, VGA, and others into your display to fulfill your design objective.
