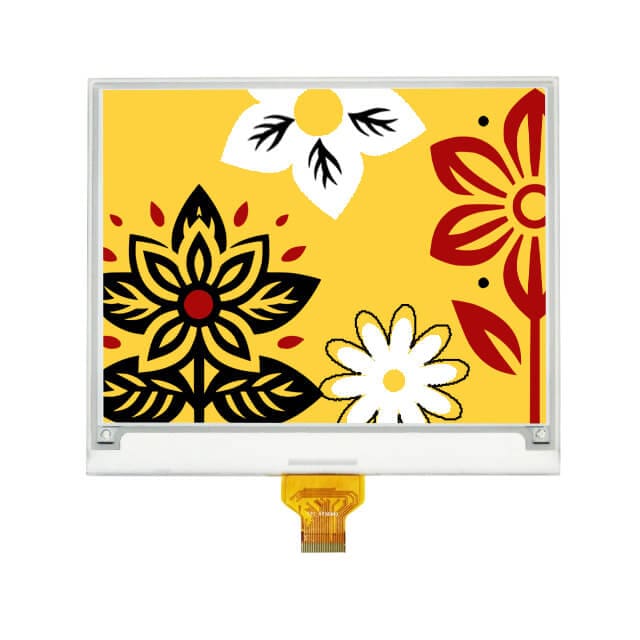

AED648480A00-5.83ENRS4
5.83″ E-Paper with Four Colors (B/W/R/Y), 648×480, All Viewing Angle, SPI Interface
$25.27CONTACT FOR VOLUME PRICING
Free ground shipping on US orders over $50 (excl. AK and HI)
2 in stock
Ships from SeattleNo MOQ on standard partsFree shipping over $5024-hour sample shipping from US stock
Key specs
- EPD – Electrophoretic Display (Active Matrix)
- Diagonal Dimension: 5.83 Inch
- Color: Black, White, Red, Yellow
- Resolution: 648 x 480 pixels
- Interface: 3-/4-wire SPI
- Polarizer: Reflective
- Viewing Direction: All
- Touch Panel: None
- Front Light: None
Need volume, a modified part or a lead time?
Need a display built to your own spec? Start a custom project and our engineers respond within one business day.
Start a Custom ProjectSpecifications
Downloads & resources
5.83″ E-Paper with Four Colors (Black, White, Red, Yellow) Display, All Viewing Direction with 648 x 480 dots, SPI Interface.
- 5.83″ E-Paper, 648 x 480
- Four Colors: Black, White, Red, Yellow
- Reflective Polarizer
- All Viewing Direction
- Operating Temp: 0°C to 50°C
- Storage Temp: -25°C to 70°C
- ROHS Compliant
Controller: JD79665CA
| Model / Series Name | AED648480A00-5.83ENRS4 |
| Diagonal Dimension (Inches) | 5.83 |
| Dots WxH | 648 x 480 |
| Module Size WxHxD max (mm) | 125.40×99.50×1.20 mm |
| Display Mode | EPD – Electrophoretic Display (Active Matrix) / Reflective |
| IC | JD79665CA |
| Interface Type | 3-/4-wire SPI |
| Logic Power Supply Voltage | 3.0 |
| Frontlight | No |
| Luminance | None |
| Touch Panel | None |
Need something different? Talk to an engineer Start a custom project
Additional information
| Weight | 0.005 lbs |
|---|---|
| Dimensions | 31 × 51 × 1 mm |
| Display type | E-Paper |
| Polarizer type | Reflective |
| Diagonal Size (Inch) | 5.83 |
| Resolution | 648×480 |
| Touch Panel | None |
| Viewing direction | All |
