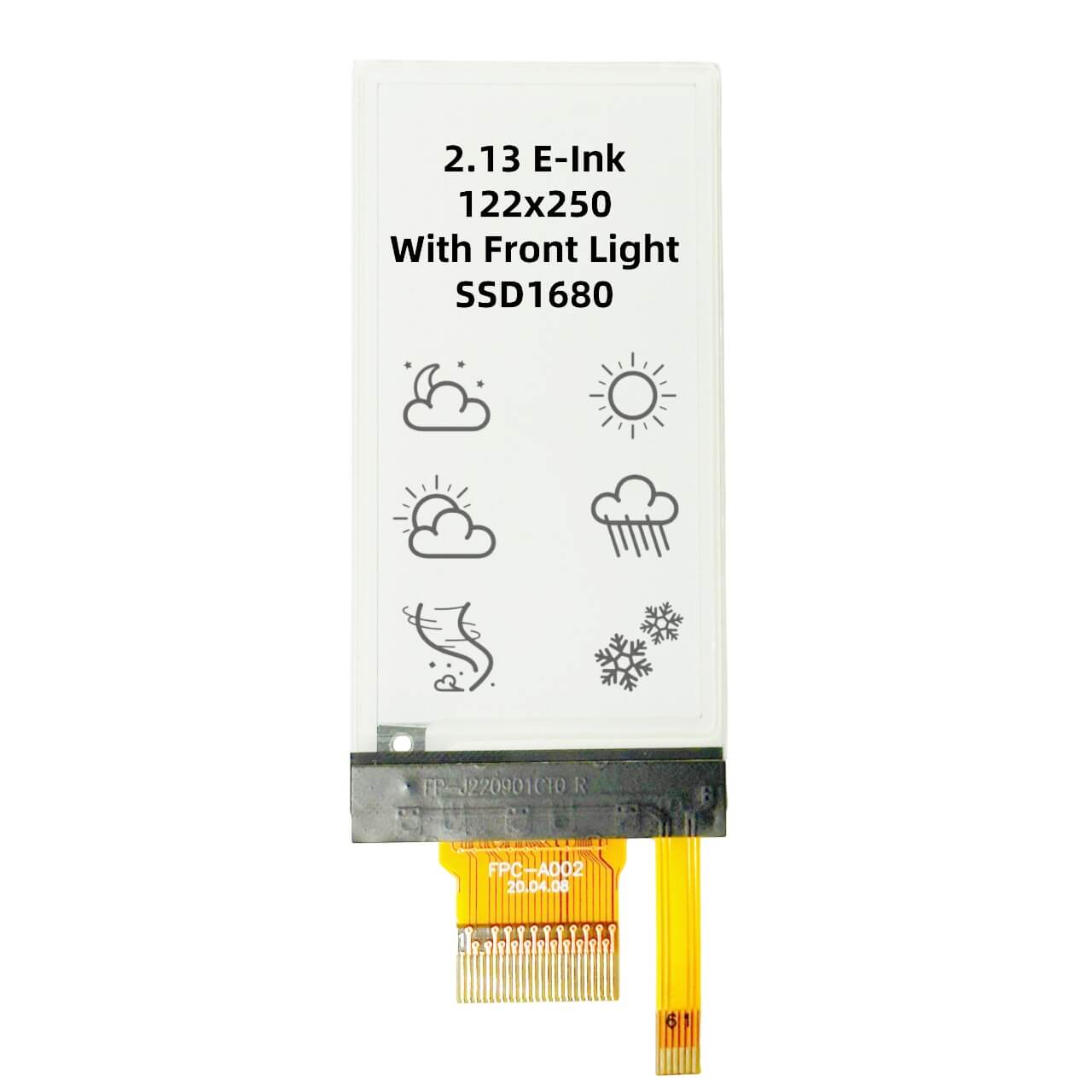

AEZ122250A00-2.13ENRWS
2.13″ E-Paper with Front Light, 122×250, All Viewing Angle, SPI Interface
$13.94CONTACT FOR VOLUME PRICING
Free ground shipping on US orders over $50 (excl. AK and HI)
49 in stock
Ships from SeattleNo MOQ on standard partsFree shipping over $5024-hour sample shipping from US stock
Key specs
- EPD – Electrophoretic Display (Active Matrix)
- Diagonal Dimension: 2.13 Inch
- Resolution: 122 x 250 pixels
- Interface: 3-/4-wire SPI
- Polarizer: Reflective
- Viewing Direction: All
- Touch Panel: None
- FrontLight: Yes
Volume pricing
| Quantity | Unit price | Save |
|---|---|---|
| 1–24 | $13.94 | — |
| 25–49 | $12.30 | −12% |
| 50+ | $10.65 | −24% |
Contact us for larger volume orders and any other enquiries.
Need volume, a modified part or a lead time?
Need a display built to your own spec? Start a custom project and our engineers respond within one business day.
Start a Custom ProjectSpecifications
2.13″ E-Paper (Black and White) Display, All Viewing Direction with 122 x 250 dots, 3-/4-wire SPI Interface.
- 2.13″ E-Paper, 122 x 250
- Reflective with Front Light
- All Viewing Direction
- Operating Temp: 0°C to 50°C
- Storage Temp: -25°C to 70°C
- ROHS Compliant
| Model / Series Name | AEZ122250A00-2.13ENRWS |
| Diagonal Dimension (Inches) | 2.13 |
| Dots WxH | 122 x 250 |
| Module Size WxHxD max (mm) | 29.2×59.2×1.65 mm |
| Display Mode | EPD – Electrophoretic Display (Active Matrix) / Reflective |
| IC | SSD1680 |
| Interface Type | 3-/4-wire SPI |
| Logic Power Supply Voltage | 3.0 |
| Frontlight | Yes 💡 |
| Luminance | None |
| Touch Panel | None |
Need something different? Talk to an engineer Start a custom project
Additional information
| Weight | 0.005 lbs |
|---|---|
| Dimensions | 31 × 51 × 1 mm |
| Display type | E-Paper |
| Polarizer type | Reflective |
| Diagonal Size (Inch) | 2.13 |
| Resolution | 200×200 |
| Touch Panel | None |
| Viewing direction | All |
