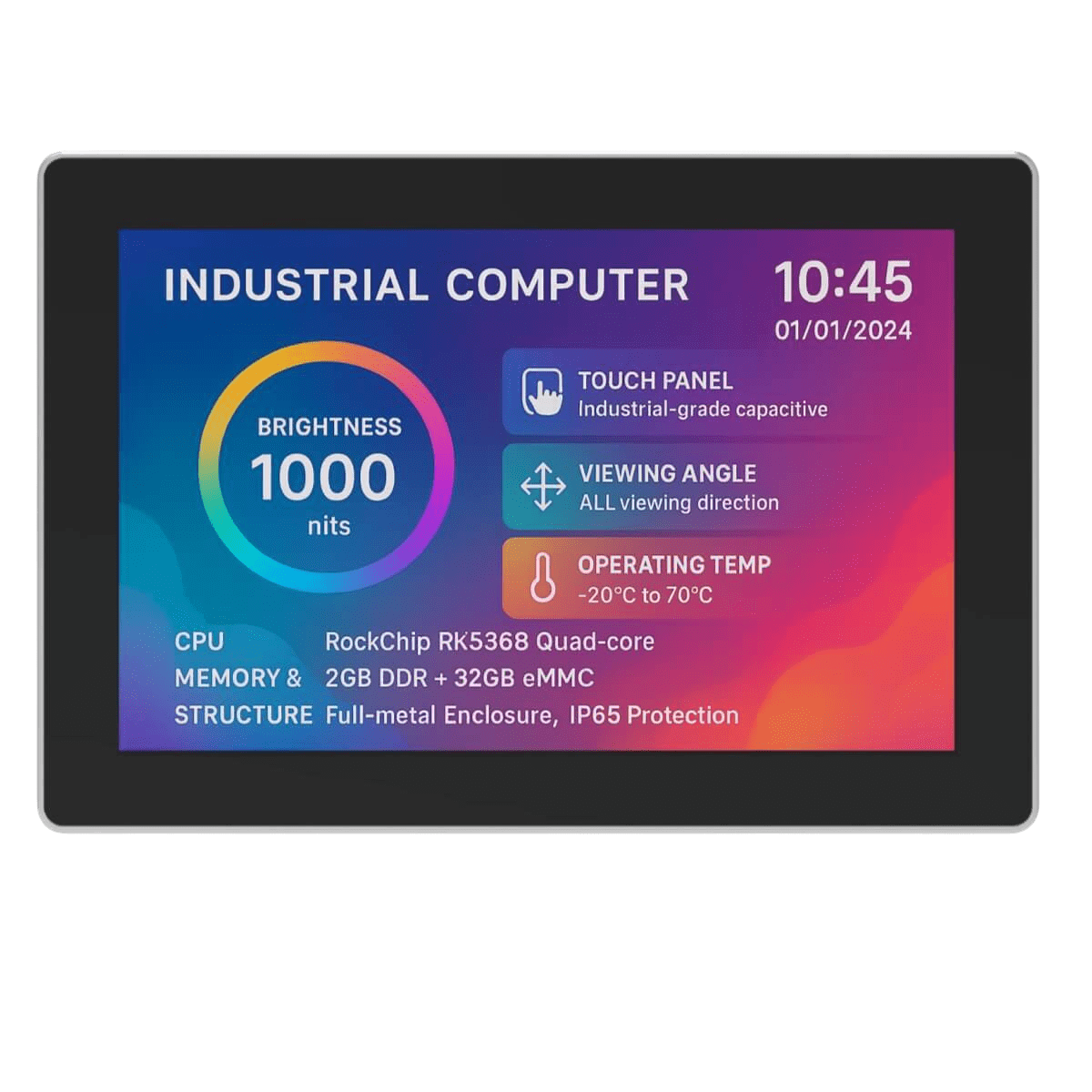

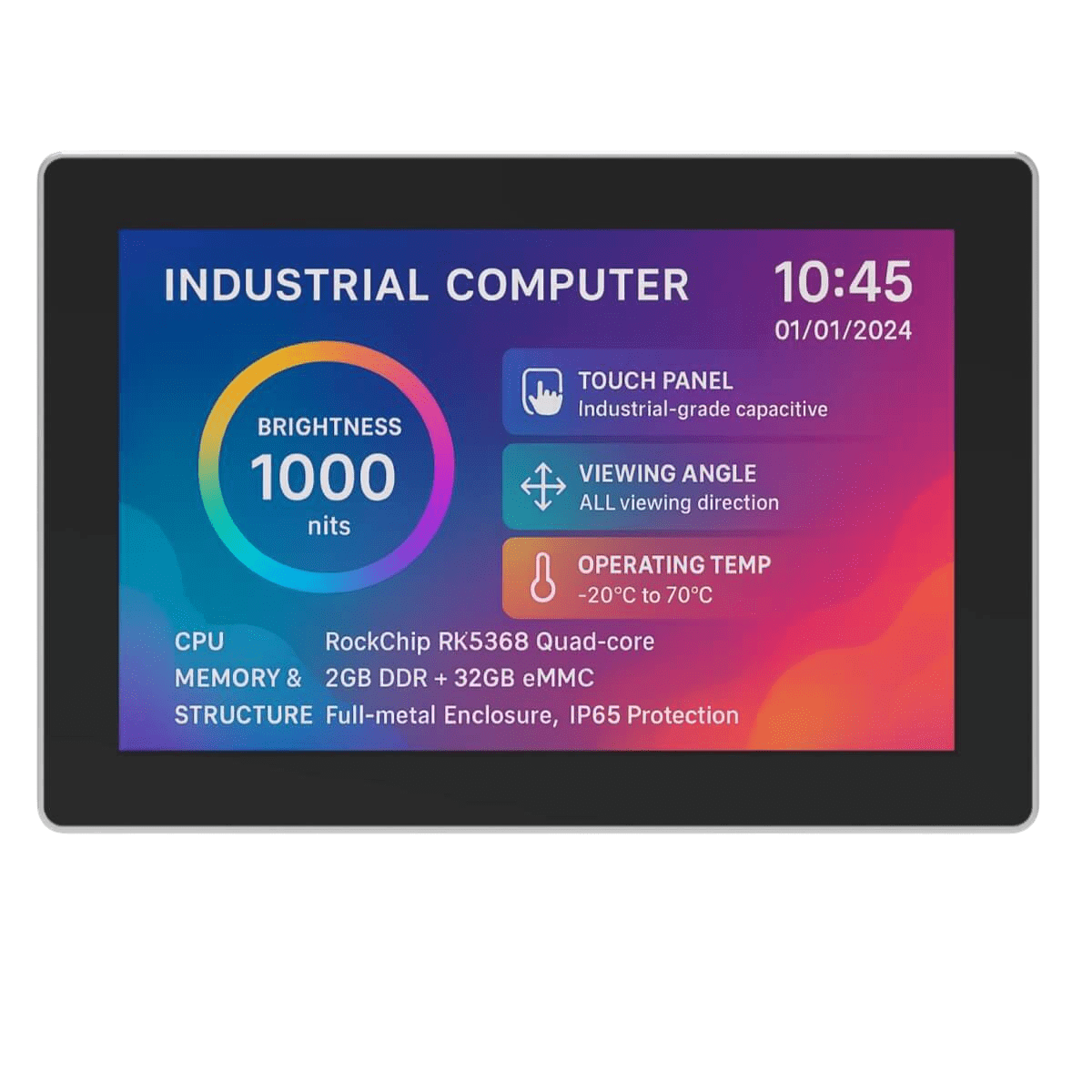

10.1″ Sunlight Readable IPS Industrial Computer, 1280×800, 1000 Nits with Capacitive Touch Panel
$250.83CONTACT FOR VOLUME PRICING
Out of stock · we can still source it
Key specs
- Model / Series Name: APV1280800A0-10.1CS-R3881
- Diagonal Dimension (inch): 10.1
- Dots WxH: 1280 x 800
- Module Size WxHxD max (mm): 260.4*177.4*37.00
- Display Mode: IPS / Normal black / Transmissive
Email when stock available
Specifications
Downloads & resources
A 10.1″ High Brightness / Sunlight Readable IPS Industrial Computer, Transmissive / All Viewing Direction / Normal Black with 1280 x (RGB) x 800 dots.
- 10.1″ IPS, 1280 x (RGB) x 800
- High Brightness (1000nits) / Sunlight Readable IPS
- Transmissive / Normal Black / Industrial-grade Capacitive Touch Panel
- ALL Viewing Direction
- Operating Temp: -20°C to 70°C
- Storage Temp: -30°C to 80°C
- CPU: RockChip RK3568 Quad-core Processor
- Memory & Storage: 2GB DDR + 32GB eMMC
- Structure: Full-metal Enclosure, IP65 Front Protection
- ROHS Compliant
| Model / Series Name | APV1280800A0-10.1CS-R3881 |
| Diagonal Dimension (inch) | 10.1 |
| Dots WxH | 1280 x 800 |
| Module Size WxHxD max (mm) | 260.4*177.4*37.00 |
| Display Mode | IPS / Normal black / Transmissive |
| Operating System | Linux/Andriod |
| Interface Type | HDMI / USB |
| Power Supply | 12 V |
| Backlight | White LED |
| Luminance | 1000 cd/m2 |
| Touch Panel | Industrial-grade Capacitive |
Custom Made Options
FPC or Cable Customization
Obtain a customized cable or FPC to enhance the security and efficiency of your connections, by adjusting cable length, position, pinout, or adding extra connectors.
Touch Panel with Optical Bonding
Improve your user experience by incorporating either capacitive or resistive touch screen. We will tailor the thickness, color or shape of the touch panel and cover lens to seamlessly integrate with your design with or without OCA or OCR bonding.
GUI or Interface Customization
Select the most suitable connection or GUI interface. We can integrate various interfaces such as HDMI, USB, SPI, I2C, UART, MCU, VGA, and others into your display to fulfill your design objective.
Contact Us
Additional information
| Weight | 1.87 lbs |
|---|---|
| Dimensions | 233 × 155 × 37 mm |
| Backlight color | White |
| Diagonal size | 10.1 |
| Display type | TFT – IPS |
| Polarizer type | Transmissive |
| Resolution | 1280×800 |
| Touch panel | Capacitive Touch Panel |
| Viewing direction | All |
| Interface | USB, HDMI |
