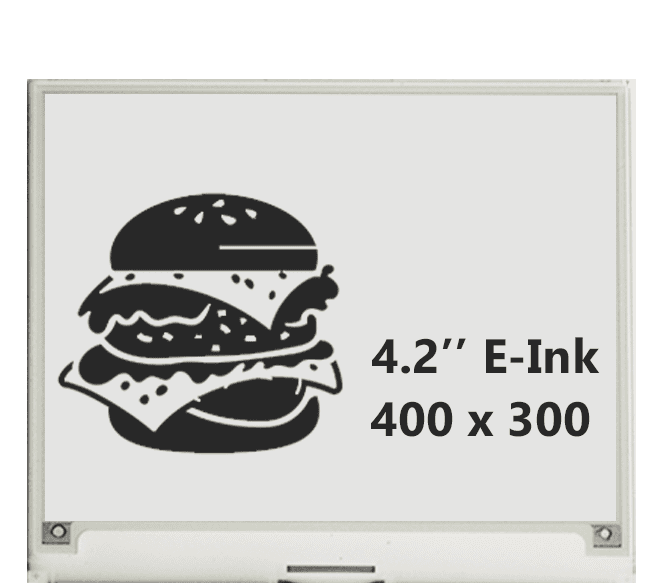

4.2″ E-Paper, 400×300, All Viewing Angle, SPI Interface
$16.58CONTACT FOR VOLUME PRICING
49 in stock
Ships from Seattle- EPD – Electrophoretic Display (Active Matrix)
- Diagonal Dimension: 4.2 Inch
- Resolution: 400 x 300 pixels
- Interface: 3-/4-wire SPI
- Polarizer: Reflective
- Viewing Direction: All
- Touch Panel: None
Pricing table
| Quantity | Unit Price |
|---|---|
| 25-49 | $15.81 |
| 50-99 | $15.03 |
| 100- | $14.35 |
Contact us for larger volume orders and any other enquiries.
Description
4.2″ E-Paper (Black and White) Display, All Viewing Direction with 400 x 300 dots, 3-/4-wire SPI Interface.
The highest quality product at the lowest price. Ships from the USA.
- 4.2″ E-Paper, 400 x 300
- Reflective
- All Viewing Direction
- Operating Temp: 0°C to 50°C
- Storage Temp: -25°C to 70°C
- ROHS Compliant
Download Product References Below
Product Datasheet: AES400300B00-4.2ENRS
Controller Datasheet: SSD1683
Optional Accessory: TBD
| Model / Series Name | AES400300B00-4.2ENRS |
| Diagonal Dimension (Inches) | 4.2 |
| Dots WxH | 400 x 300 |
| Module Size WxHxD max (mm) | 91.0(H)×77.0(V) ×1.20(D) |
| Display Mode | EPD – Electrophoretic Display (Active Matrix) / Reflective |
| IC | SSD1683 |
| Interface Type | 3-/4-wire SPI |
| Logic Power Supply Voltage | 1.8 |
| Backlight | None |
| Luminance | None |
| Touch Panel | None |
These are just few of our famous display modules; we still have a lot of products to offer.
If none of these part numbers meet your requirements in terms of brightness, interface, or connection method, please email us at info@orientdisplay.com.
Additional information
| Weight | 0.006 lbs |
|---|---|
| Dimensions | 91 × 96 × 1 mm |
| Diagonal Size (Inch) | 4.2 |
| displaytype | E-Paper |
| polarizertype | Reflective |
| resolution | 400×300 |
| Touch Panel | None |
| viewingdirection | All |
