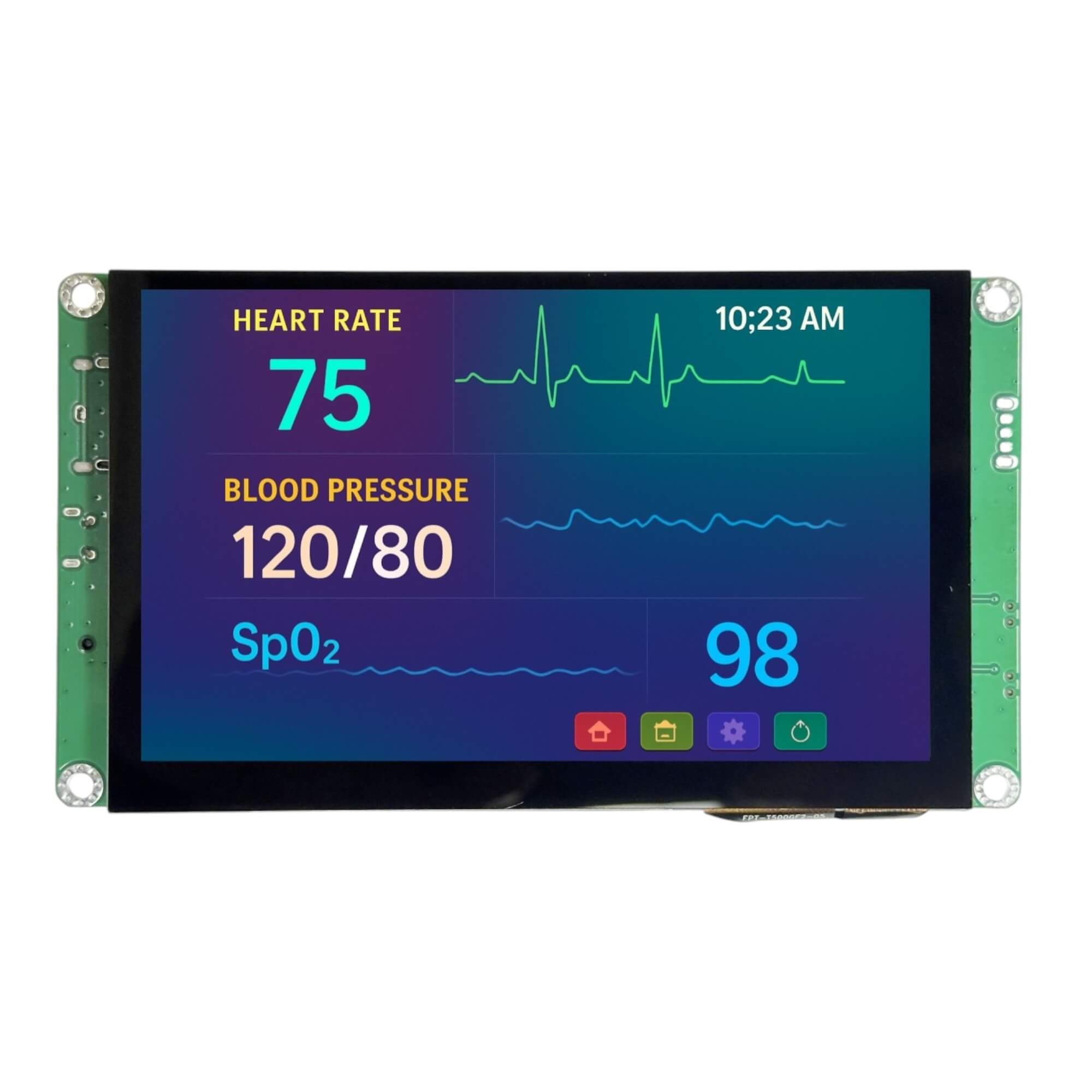

5.0″ Raspberry Pi TFT with CTP, 800×480, 1000 Nits, HDMI/USB Interface
$61.19CONTACT FOR VOLUME PRICING
80 in stock
Ships from SeattleKey specs
- High Brightness / Sunlight Readable IPS
- Diagonal Dimension: 5 Inch
- Resolution: 800 x 480 pixels
- Interface: HDMI / USB
- Luminance: 1000 cd/m2
- Viewing Direction: ALL
- Touch Panel: Capacitive
Specifications
A simple 5.0″ High Brightness / Sunlight Readable IPS Module with HDMI / USB interface, Transmissive / All Viewing Direction / Normal Black with 800 x (RGB) x 480 dots.
- 5.0″ IPS, 800 x (RGB) x 480
- High Brightness / Sunlight Readable IPS
- Transmissive / Normal Black / Capacitive Touch Panel
- ALL Viewing Direction
- Operating Temp: -20°C to 70°C
- Storage Temp: -30°C to 80°C
- ROHS Compliant
| Model / Series Name | AFK800480A0-5.0INTH-C-HDMI |
| Diagonal Dimension (inch) | 5.0 |
| Dots WxH | 800 x 480 |
| Module Size WxH max (mm) | 120.70 x 75.80 |
| Display Mode | IPS / Normal black / Transmissive |
| IC | ST7262 |
| Interface Type | HDMI / USB |
| Logic Power Supply Voltage | 12 V |
| Backlight | White LED |
| Luminance | 1000 cd/m2 |
| Touch Panel | Capacitive |
Custom Made Options
FPC or Cable Customization
Obtain a customized cable or FPC to enhance the security and efficiency of your connections, by adjusting cable length, position, pinout, or adding extra connectors.
Touch Panel with Optical Bonding
Improve your user experience by incorporating either capacitive or resistive touch screen. We will tailor the thickness, color or shape of the touch panel and cover lens to seamlessly integrate with your design with or without OCA or OCR bonding.
GUI or Interface Customization
Select the most suitable connection or GUI interface. We can integrate various interfaces such as HDMI, USB, SPI, I2C, UART, MCU, VGA, and others into your display to fulfill your design objective.
Contact Us
Additional information
| Weight | 0.99 lbs |
|---|---|
| Dimensions | 92 × 120.70 × 5.10 mm |
| Backlight color | White |
| Diagonal size | 5.0 |
| Display type | TFT – IPS |
| Polarizer type | Transmissive |
| Resolution | 800×480 |
| Viewing direction | All |
| Touch panel | Capacitive Touch Panel |
