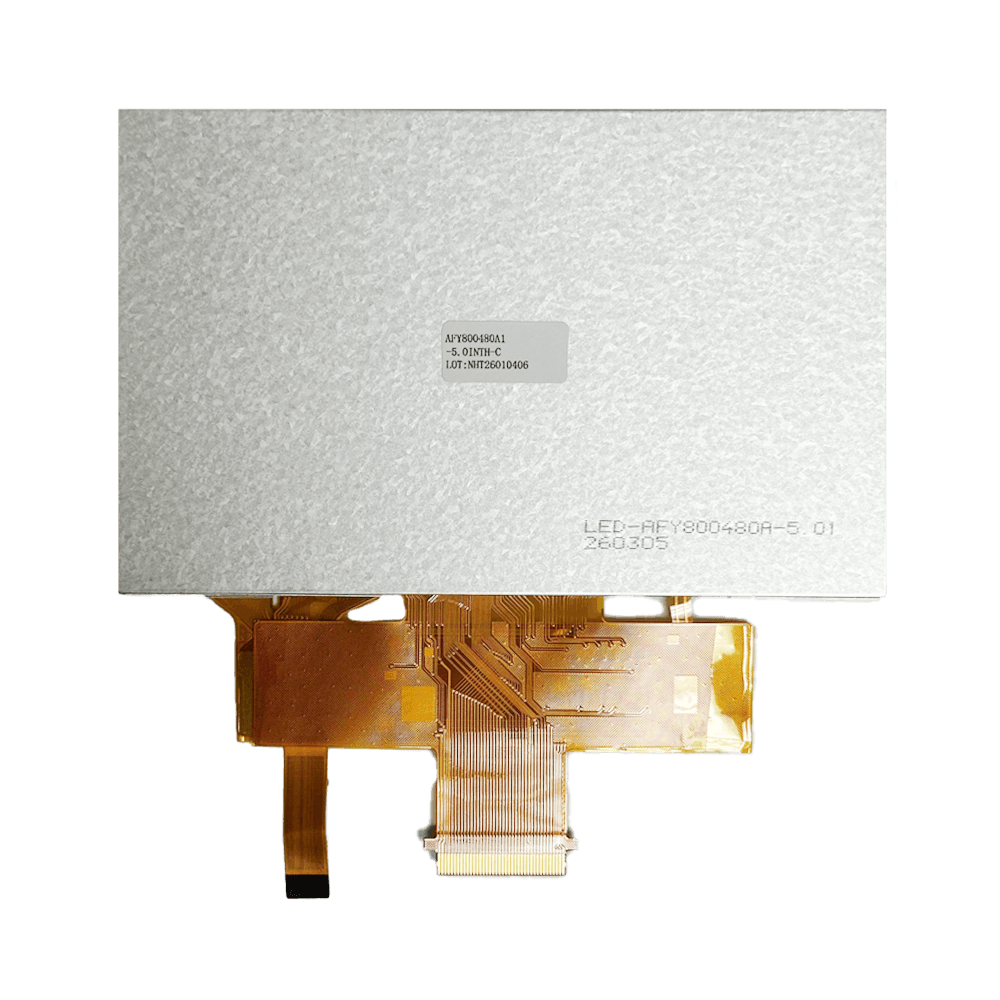

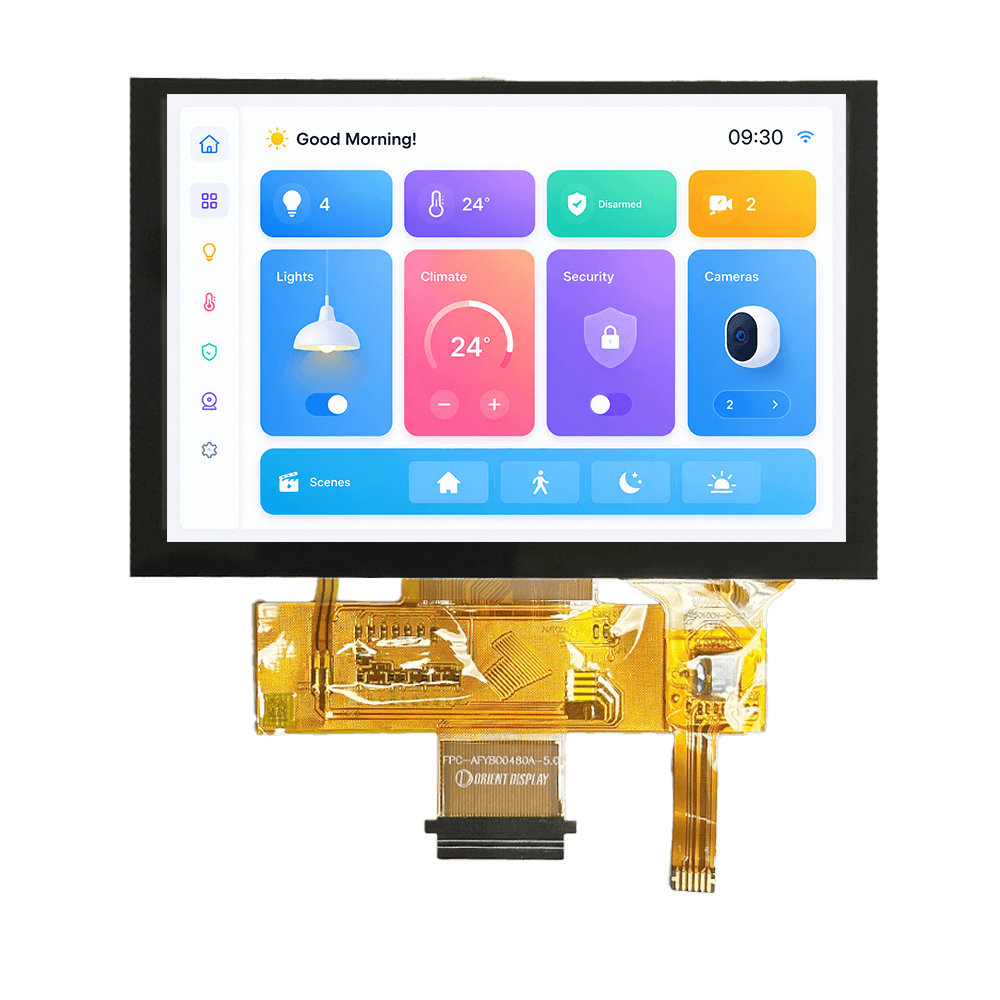

5.0″ Sunlight Readable IPS, 800×480, 800 Nits with Capacitive Touch Panel
$43.86CONTACT FOR VOLUME PRICING
50 in stock
Ships from Seattle- High Brightness / Sunlight Readable IPS
- Diagonal Dimension: 5 Inch
- Resolution: 800 x 480 pixels
- Interface: 24bit RGB
- Luminance: 800 cd/m2
- Viewing Direction: ALL
- Touch Panel: Capacitive
Pricing table
| Quantity | Unit Price |
|---|---|
| 25-49 | $41.97 |
| 50- | $40.08 |
Contact us for larger volume orders and any other enquiries.
Description
A simple 5.0″ High Brightness / Sunlight Readable IPS Module, Transmissive / All Viewing Direction / Normal Black with 800 x (RGB) x 480 dots.
- 5.0″ IPS, 800 x (RGB) x 480
- High Brightness / Sunlight Readable IPS
- Transmissive / Normal Black / Capacitive Touch Panel
- ALL Viewing Direction
- Operating Temp: -20°C to 70°C
- Storage Temp: -30°C to 80°C
- ROHS Compliant
| Model / Series Name | AFY800480A1-5.0INTH-C |
| Diagonal Dimension (inch) | 5.0 |
| Dots WxH | 800 x 480 |
| Module Size WxHxD max (mm) | 120.70 x 75.80 x 5.10 |
| Display Mode | IPS / Normal black / Transmissive |
| IC | ST72568 OR COMPATIBLE(TFT), MXT336T(CTP) |
| Interface Type | 24bit RGB |
| Logic Power Supply Voltage | 3.3 V |
| Backlight | 20 Chip White LED, lf = 80 mA |
| Luminance | 800 cd/m2 |
| Touch Panel | Capacitive |
These are just few of our famous TFT modules; we still have a lot of TFT products to offer.
If none of these part numbers meet your requirements in terms of brightness, interface, or connection method, please email us at info@orientdisplay.com.
Custom Made Options
FPC or Cable Customization
Obtain a customized cable or FPC to enhance the security and efficiency of your connections, by adjusting cable length, position, pinout, or adding extra connectors.
Touch Panel with Optical Bonding
Improve your user experience by incorporating either capacitive or resistive touch screen. We will tailor the thickness, color or shape of the touch panel and cover lens to seamlessly integrate with your design with or without OCA or OCR bonding.
GUI or Interface Customization
Select the most suitable connection or GUI interface. We can integrate various interfaces such as HDMI, USB, SPI, I2C, UART, MCU, VGA, and others into your display to fulfill your design objective.
Contact Us
Additional information
| Weight | 0.99 lbs |
|---|---|
| Dimensions | 75.80 × 120.70 × 5.10 mm |
| backlightcolor | White |
| diagonal-size | 5.0 |
| displaytype | TFT – IPS |
| polarizertype | Transmissive |
| resolution | 800×480 |
| touchpanel | Capacitive Touch Panel |
| viewingdirection | All |
| interface | RGB |
