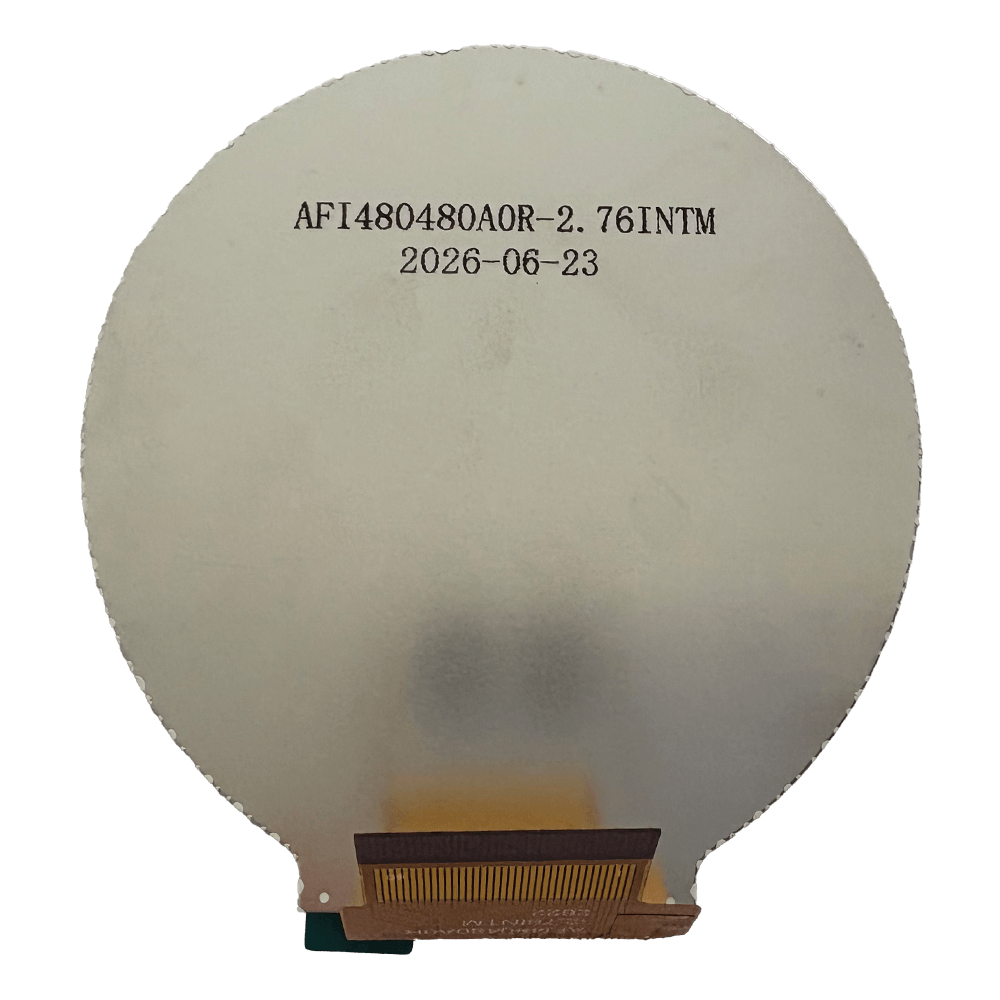

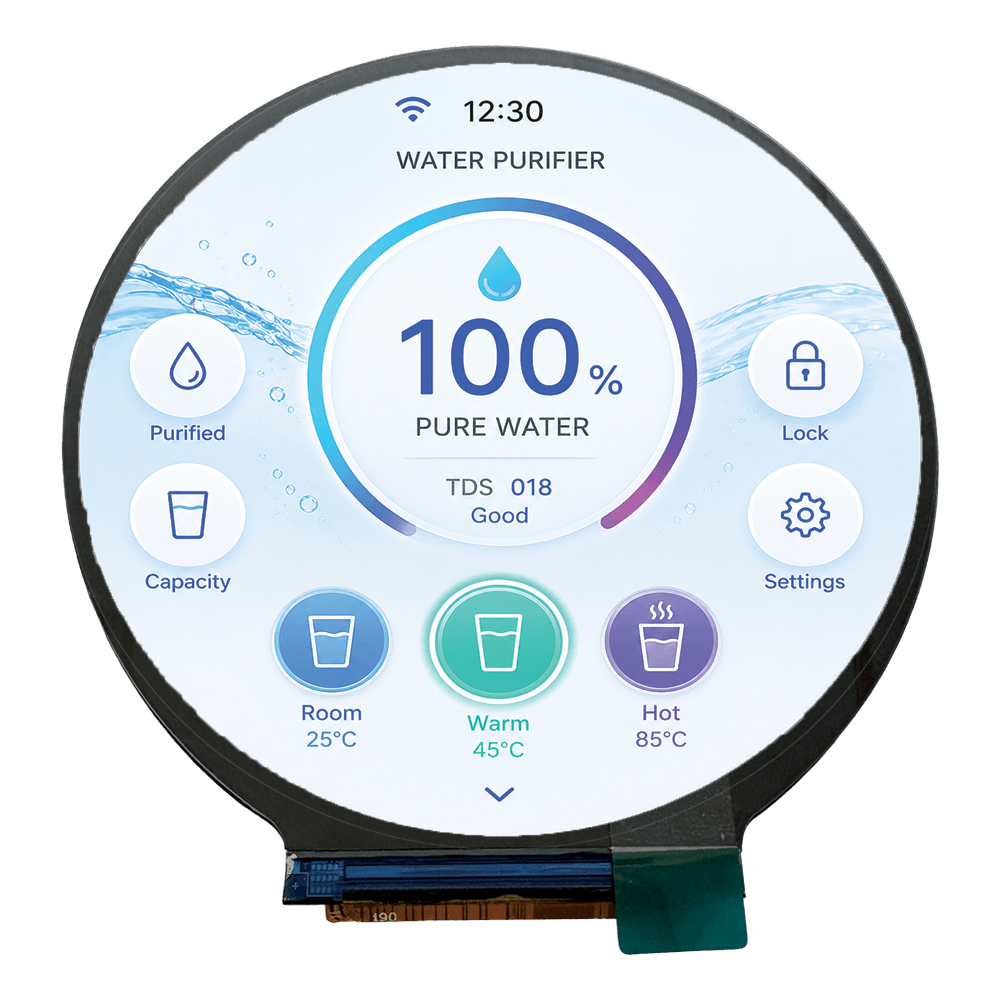

2.76″ Medium Brightness Round IPS, 480×480, 500 Nits
$24.37CONTACT FOR VOLUME PRICING
50 in stock
Ships from Seattle- Medium Brightness / Round IPS
- Diagonal Dimension: 2.76 Inch
- Resolution: 480 x 480 pixels
- Interface: RGB
- Luminance: 500 cd/m2
- Viewing Direction: ALL
- Touch Panel: None
Pricing table
| Quantity | Unit Price |
|---|---|
| 25-49 | $21.43 |
| 50- | $18.49 |
Contact us for larger volume orders and any other enquiries.
Description
A simple 2.76″ Medium Brightness Round IPS Module, Transmissive / All Viewing Direction / Normal Black with 480 x (RGB) x 480 dots.
2.76 Inch IPS Display – details
- 2.76″ Round IPS, 480 x (RGB) x 480
- Medium Brightness / Round IPS
- Transmissive / Normal Black
- ALL Viewing Direction
- Operating Temp: -10°C to 60°C
- Storage Temp: -20°C to 70°C
- ROHS Compliant
Download Product References Below
| Model / Series Name | AFI480480A0R-2.76INTM |
| Diagonal Dimension (inch) | 2.76 |
| Dots WxH | 480 x 480 |
| Module Size WxHxT max (mm) | 73.03×76.48×2.26 |
| Display Mode | Round IPS / Normal black / Transmissive / Anti-glare |
| IC | ST7701S |
| Interface Type | RGB |
| Power Supply Voltage | 3.3V |
| Backlight | 1x4White LED |
| Luminance | 500 cd/m2 |
| Touch Panel | None |
These are just few of our famous TFT modules; we still have a lot of TFT products to offer.
If none of these part numbers meet your requirements in terms of brightness, interface, or connection method, please email us at info@orientdisplay.com.
Custom Made Options
FPC or Cable Customization
Obtain a customized cable or FPC to enhance the security and efficiency of your connections, by adjusting cable length, position, pinout, or adding extra connectors.
Touch Panel with Optical Bonding
Improve your user experience by incorporating either capacitive or resistive touch screen. We will tailor the thickness, color or shape of the touch panel and cover lens to seamlessly integrate with your design with or without OCA or OCR bonding.
GUI or Interface Customization
Select the most suitable connection or GUI interface. We can integrate various interfaces such as HDMI, USB, SPI, I2C, UART, MCU, VGA, and others into your display to fulfill your design objective.
