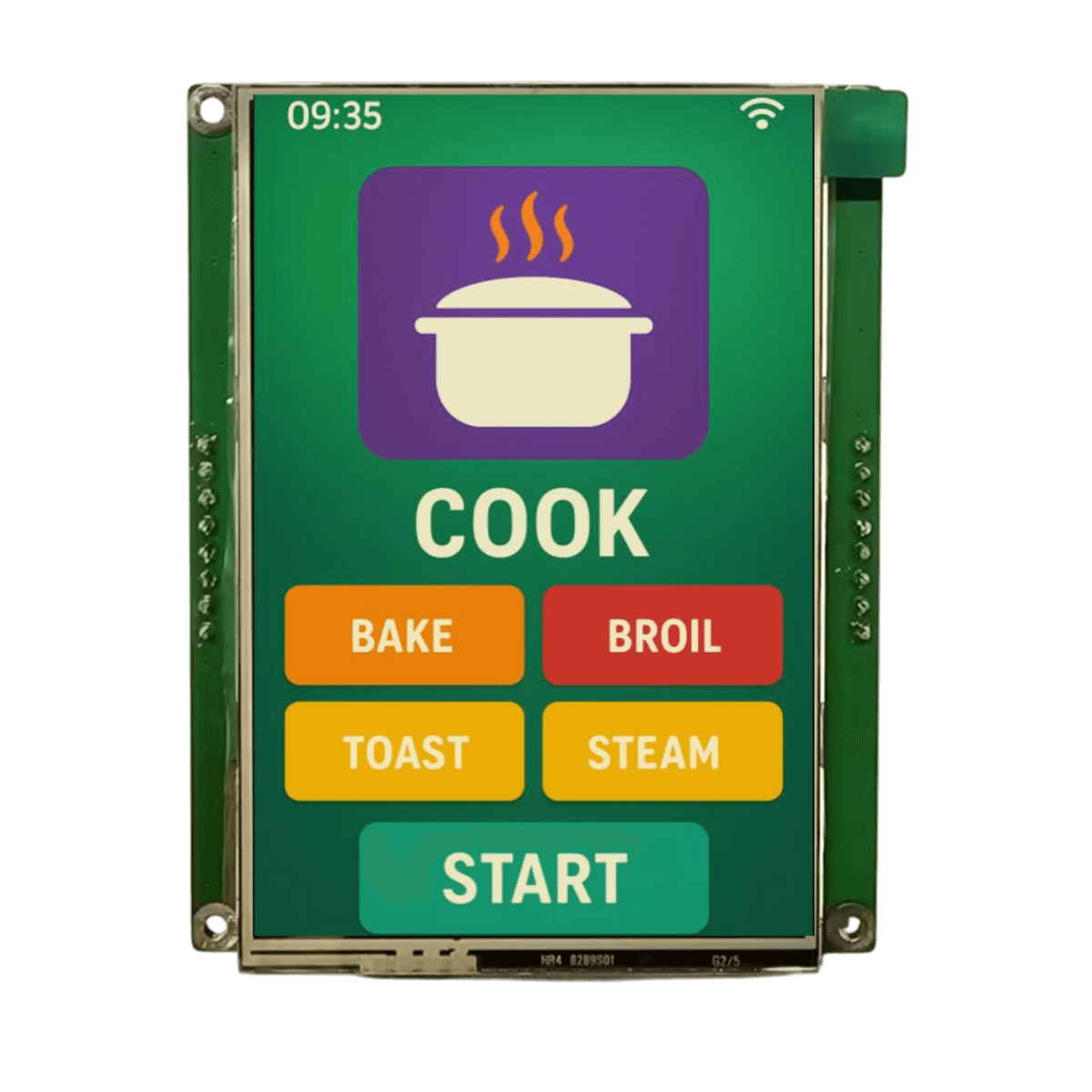

3.5" Arduino IPS TFT with Resistive Touch Panel, 320x480, 800 Nits, 4-wire SPI Interface - Image 1

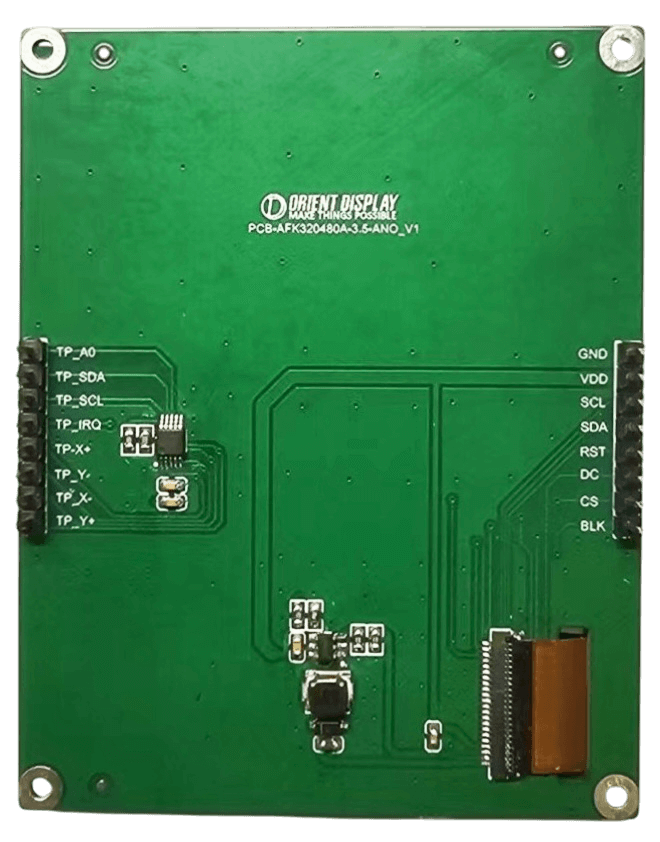

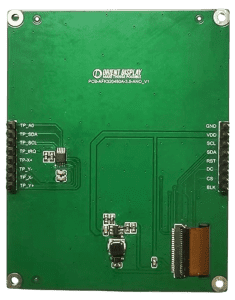

3.5" Arduino IPS TFT with Resistive Touch Panel, 320x480, 800 Nits, 4-wire SPI Interface - Image 2
More Stock Coming Soon
Click to enlarge
3.5" Arduino IPS TFT with Resistive Touch Panel, 320x480, 800 Nits, 4-wire SPI Interface
3.5" Arduino IPS TFT with Resistive Touch Panel, 320x480, 800 Nits, 4-wire SPI Interface - Image 2

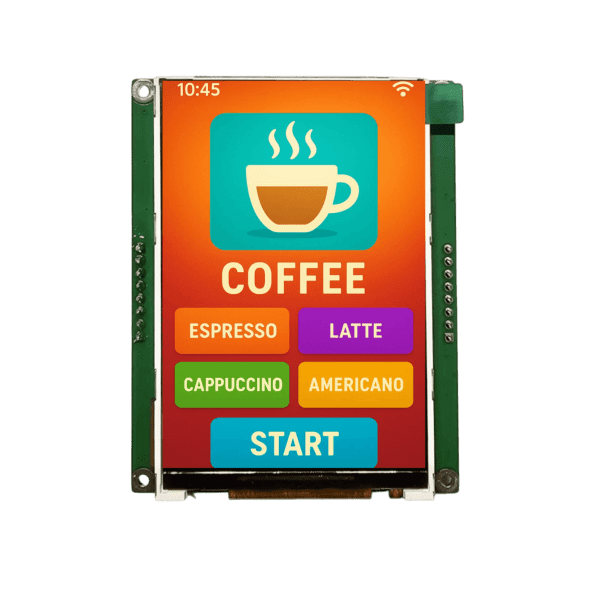

3.5" Arduino IPS TFT, 320x480, 800 Nits, 4-wire SPI Interface
3.5" Arduino IPS TFT, 320x480, 800 Nits, 4-wire SPI Interface $22.90
Back to products

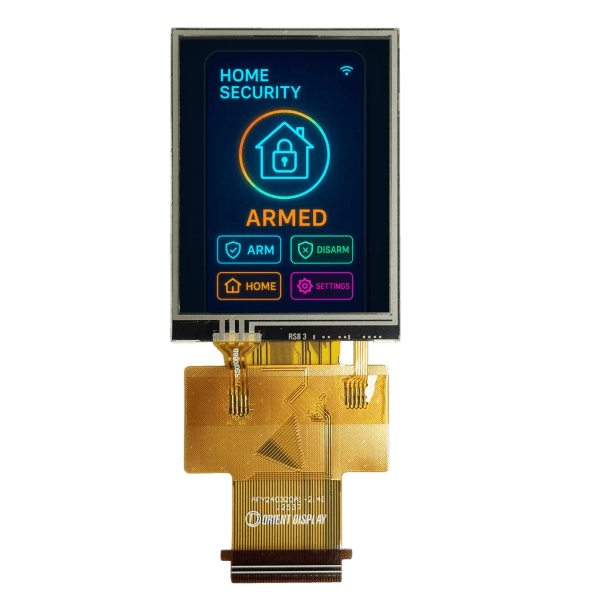

2.4" Sunlight Readable IPS with Resistive Touch Panel, 240x320, 800 Nits, RGB/MCU/SPI Interface
2.4" Sunlight Readable IPS with Resistive Touch Panel, 240x320, 800 Nits, RGB/MCU/SPI Interface $13.13
AFK320480A0-3.5INTH-R-ANO

3.5″ Arduino IPS TFT with Resistive Touch Panel, 320×480, 800 Nits, 4-wire SPI Interface

$25.65CONTACT FOR VOLUME PRICING

Free ground shipping on US orders over $50 (excl. AK and HI)

Out of stock · we can still source it

Datasheet (PDF)

Key specs

  • High Brightness / IPS display
  • Diagonal Dimension: 3.5 Inch
  • Resolution: 320 x 480 pixels
  • Interface: 4-wire SPI + Arduino Compatible
  • Luminance: 800 cd/m2
  • Viewing Direction: ALL
  • Touch Panel: Resistive

Email when stock available

Request this part

Tell us how many you need. We reply with price and lead time, and email you when stock lands.

Only if you have a firm date. Otherwise pick one of the options above.
Include country code
What do you need?
What would you change? (pick any)
PDF, STEP, DXF, DWG, IGES, image or ZIP, up to 20 MB
Add a note

Only want the stock alert? Leave quantity at 1.

By submitting you agree to our Privacy Policy; we use your details to respond to your request.

Need a custom build instead? Start a custom project.

Compare
Add to wishlist
SKU: AFK320480A0-3.5INTH-R-ANO Categories: ,

Specifications

Downloads & resources

Datasheet (PDF)

A simple Arduino IPS TFT 3.5″ High Brightness / IPS Mode with Resistive Touch Panel, Transmissive / All Viewing Direction with 320 x 480 dots, 4-wire SPI Interface.

  • 3.5″ IPS, 320 x 480
  • High Brightness / IPS
  • Transmissive
  • All Viewing Direction
  • Operating Temp: -20°C to 70°C
  • Storage Temp: -30°C to 80°C
  • ROHS Compliant
Controller Datasheet: HX8357D
Model / Series Name AFK320480A0-3.5INTH-R-ANO
Diagonal Dimension (Inches) 3.5
Dots WxH 320 x 480
Module Size WxHxD max (mm) 54.66(W)x82.94(H)x7.74Max(D)
Display Mode IPS / Transmissive
IC HX8357D
Interface Type 4-wire SPI + Compatible Arduino
Logic Power Supply Voltage 3.3
Backlight LED, WHITE
Luminance 800 cd/m2
Touch Panel Resistive
Need something different? Talk to an engineer Start a custom project

Custom Made Options

FPC or Cable Customization

Obtain a customized cable or FPC to enhance the security and efficiency of your connections, by adjusting cable length, position, pinout, or adding extra connectors.

Touch Panel with Optical Bonding

Improve your user experience by incorporating either capacitive or resistive touch screen. We will tailor the thickness, color or shape of the touch panel and cover lens to seamlessly integrate with your design with or without OCA or OCR bonding.

GUI or Interface Customization

Select the most suitable connection or GUI interface. We can integrate various interfaces such as HDMI, USB, SPI, I2C, UART, MCU, VGA, and others into your display to fulfill your design objective.

Contact Us

Start a custom project Talk to an engineer

Additional information

Weight 0.06 lbs
Dimensions 83 × 52 × 13 mm
Backlight color
Diagonal Size (Inch) 3.5
Display type
Polarizer type
Resolution
Touch Panel Resistive Touch Panel
Viewing direction
Interface SPI
