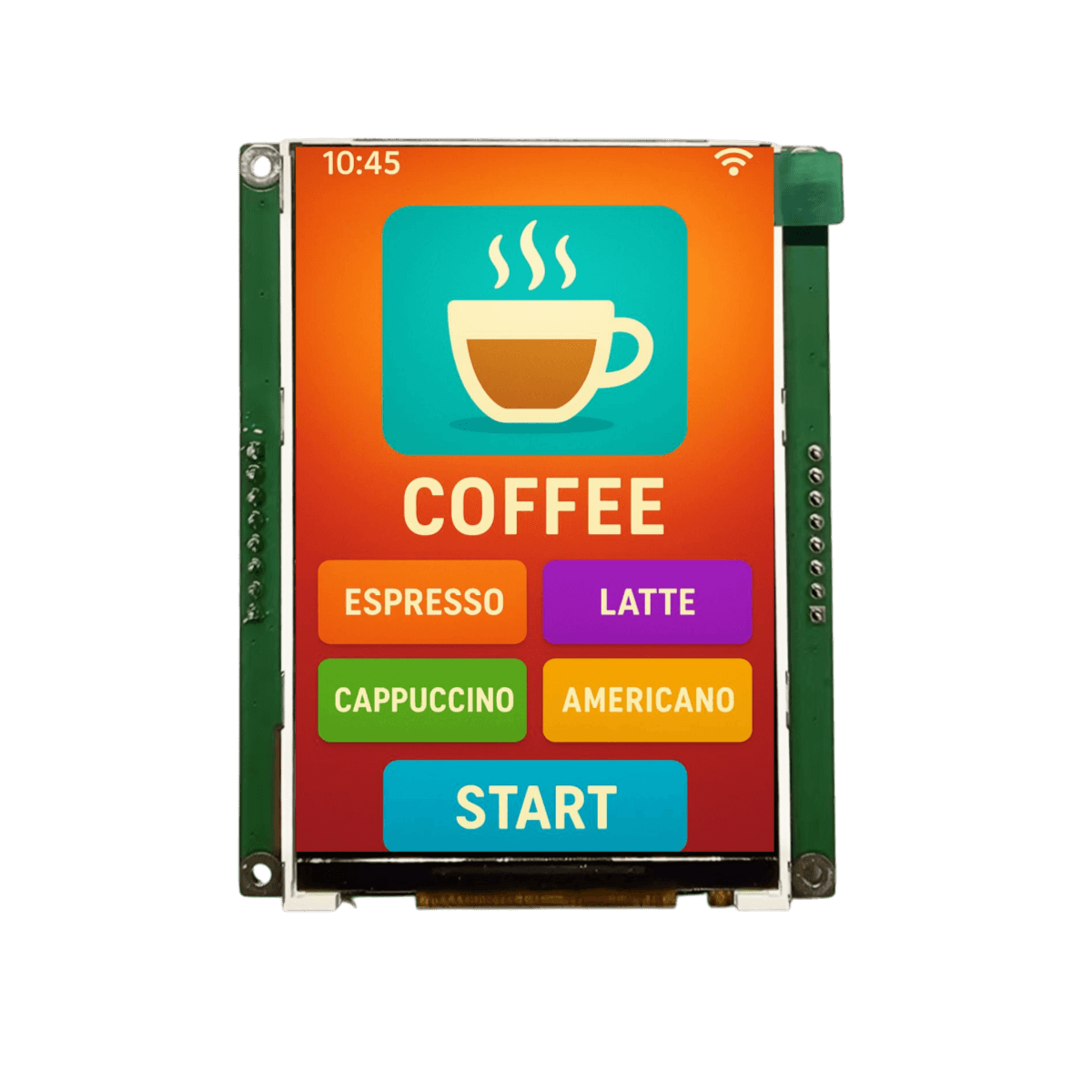

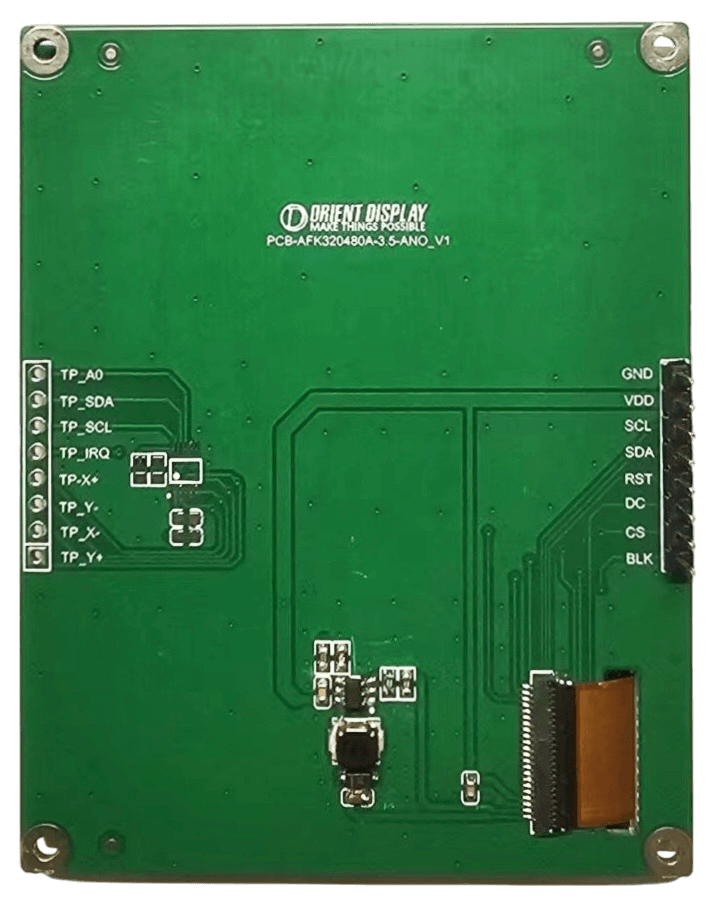

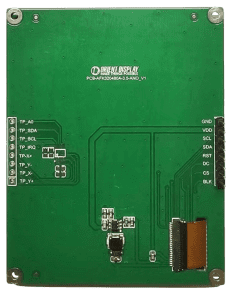

3.5″ Arduino IPS TFT, 320×480, 800 Nits, 4-wire SPI Interface
$22.90CONTACT FOR VOLUME PRICING
50 in stock
Ships from SeattleKey specs
- High Brightness / IPS display
- Diagonal Dimension: 3.5 Inch
- Resolution: 320 x 480 pixels
- Interface: 4-wire SPI + Arduino Compatible
- Luminance: 800 cd/m2
- Viewing Direction: ALL
- Touch Panel: None
Specifications
Downloads & resources
A simple Arduino IPS TFT 3.5″ High Brightness / IPS Mode, Transmissive / All Viewing Direction with 320 x 480 dots, 4-wire SPI Interface.
- 3.5″ IPS, 320 x 480
- High Brightness / IPS
- Transmissive
- All Viewing Direction
- Operating Temp: -20°C to 70°C
- Storage Temp: -30°C to 80°C
- ROHS Compliant
| Model / Series Name | AFK320480A0-3.5INTH-ANO |
| Diagonal Dimension (Inches) | 3.5 |
| Dots WxH | 320 x 480 |
| Module Size WxHxD max (mm) | 54.66(W)x82.94(H)x7.74Max(D) |
| Display Mode | IPS / Transmissive |
| IC | HX8357D |
| Interface Type | 4-wire SPI + Compatible Arduino |
| Logic Power Supply Voltage | 3.3 |
| Backlight | LED, WHITE |
| Luminance | 800 cd/m2 |
| Touch Panel | None |
Custom Made Options
FPC or Cable Customization
Obtain a customized cable or FPC to enhance the security and efficiency of your connections, by adjusting cable length, position, pinout, or adding extra connectors.
Touch Panel with Optical Bonding
Improve your user experience by incorporating either capacitive or resistive touch screen. We will tailor the thickness, color or shape of the touch panel and cover lens to seamlessly integrate with your design with or without OCA or OCR bonding.
GUI or Interface Customization
Select the most suitable connection or GUI interface. We can integrate various interfaces such as HDMI, USB, SPI, I2C, UART, MCU, VGA, and others into your display to fulfill your design objective.
Contact Us
Additional information
| Weight | 0.06 lbs |
|---|---|
| Dimensions | 83 × 52 × 13 mm |
| Backlight color | White |
| Diagonal Size (Inch) | 3.5 |
| Display type | Arduino TFT Display, TFT – IPS |
| Polarizer type | Transmissive |
| Resolution | 320×480 |
| Touch Panel | None |
| Viewing direction | 12 o'clock |
| Interface | SPI |
