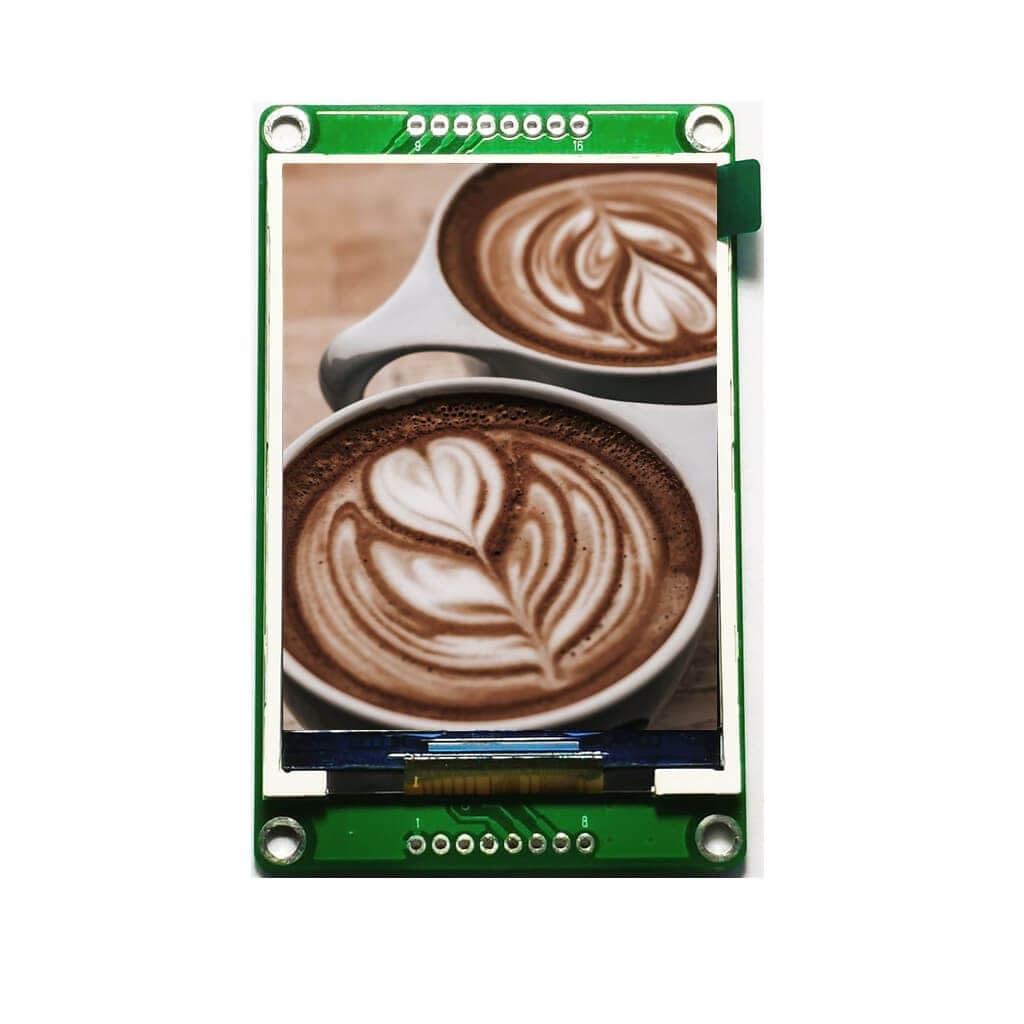

2.8″ Arduino TN TFT, 240×320, 300 Nits, 4-wire SPI Interface
$14.85CONTACT FOR VOLUME PRICING
98 in stock
Ships from SeattleKey specs
- Medium Brightness / TN display
- Diagonal Dimension: 2.8 Inch
- Resolution: 240 x 320 pixels
- Interface: 4-wire SPI + Arduino Compatible
- Luminance: 300 cd/m2
- Viewing Direction: 12 o’clock
- Touch Panel: None
Volume pricing
| Quantity | Unit price | Save |
|---|---|---|
| 1–24 | $14.85 | — |
| 25–49 | $14.15 | −5% |
| 50–99 | $13.45 | −9% |
| 100–149 | $12.82 | −14% |
| 150–199 | $12.43 | −16% |
| 200+ | $12.04 | −19% |
Contact us for larger volume orders and any other enquiries.
Specifications
Downloads & resources
A simple Arduino TN TFT 2.8″ Medium Brightness / TN Mode, Transmissive / 12 o’clock Viewing Direction with 240 x 320 dots, 4-wire SPI Interface.
- 2.8″ TN, 240 x 320
- Medium Brightness / TN
- Transmissive
- 12 o’clock Viewing Direction
- Operating Temp: -20°C to 70°C
- Storage Temp: -30°C to 80°C
- ROHS Compliant

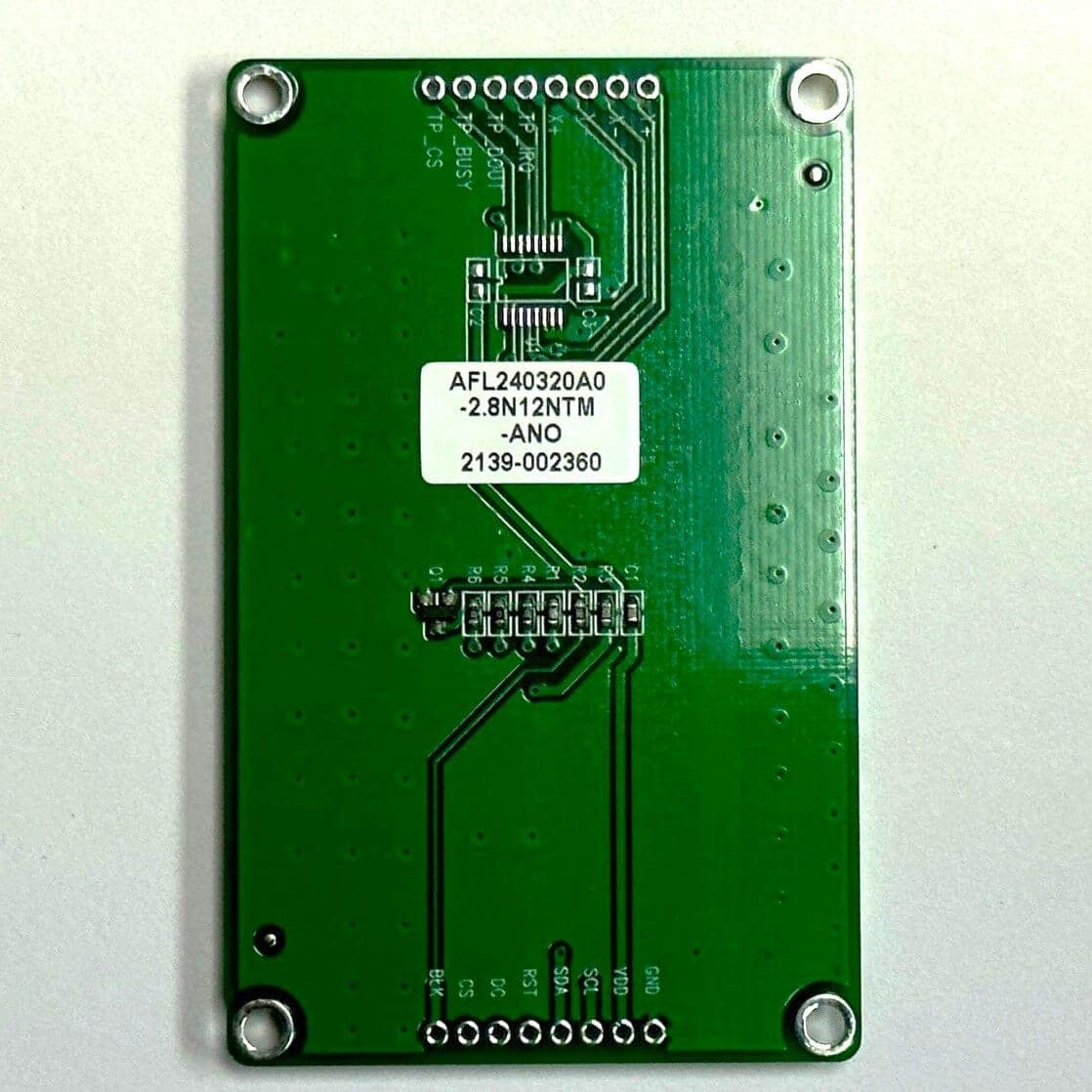

| Model / Series Name | AFL240320A0-2.8N12NTM-ANO |
| Diagonal Dimension (Inches) | 2.8 |
| Dots WxH | 240 x 320 |
| Module Size WxHxD max (mm) | 52.0 x 83.0 x 6.0 |
| Display Mode | TN / Transmissive |
| IC | ST7789V |
| Interface Type | 4-wire SPI + Compatible Arduino |
| Logic Power Supply Voltage | 3.3 |
| Backlight | LED, WHITE |
| Luminance | 300 cd/m2 |
| Touch Panel | None |
Custom Made Options
FPC or Cable Customization
Obtain a customized cable or FPC to enhance the security and efficiency of your connections, by adjusting cable length, position, pinout, or adding extra connectors.
Touch Panel with Optical Bonding
Improve your user experience by incorporating either capacitive or resistive touch screen. We will tailor the thickness, color or shape of the touch panel and cover lens to seamlessly integrate with your design with or without OCA or OCR bonding.
GUI or Interface Customization
Select the most suitable connection or GUI interface. We can integrate various interfaces such as HDMI, USB, SPI, I2C, UART, MCU, VGA, and others into your display to fulfill your design objective.
Contact Us
Additional information
| Weight | 0.06 lbs |
|---|---|
| Dimensions | 83 × 52 × 13 mm |
| Backlight color | White |
| Diagonal Size (Inch) | 2.8 |
| Display type | TFT – IPS, Arduino TFT Display |
| Polarizer type | Transmissive |
| Resolution | 240×320 |
| Touch Panel | None |
| Viewing direction | All |
| Interface | SPI |
Reviews (0)
Shipping & Delivery
Related products
2.4” TN TFT display with UART interface, 240×320, 460nits
- Diagonal Dimension: 2.4 Inch
- Resolution: 240 x 320 pixels
- Luminance: 460cd/m2
- Viewing Direction: 6 O'clock
- Touch Panel: None
- Interface: UART
- Optional Accessary:Â Accessary Kit
- Download other documents for AGU series here: Supporting Documents and Software Tools

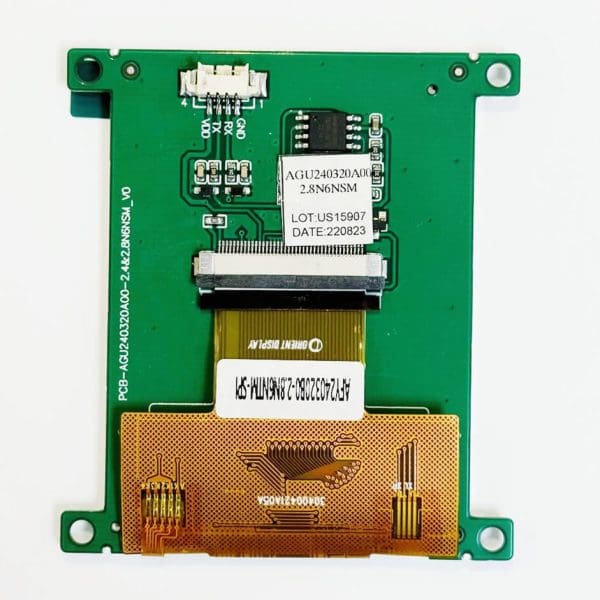

2.8” TN TFT display with UART interface, 240×320, 460nits
