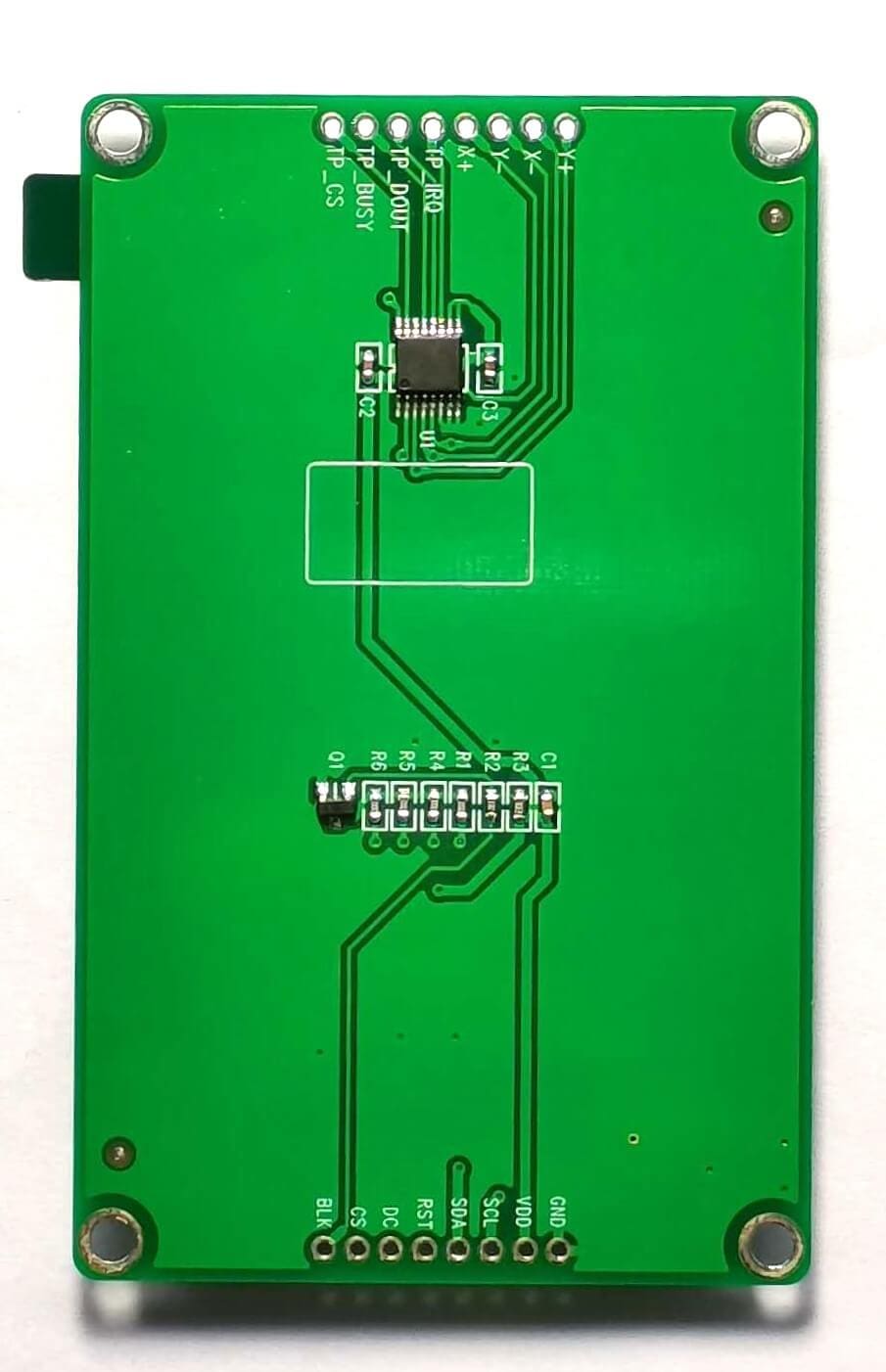

3.2″ Arduino TN TFT, 240×320, 300 Nits, 4-wire SPI Interface
$14.50CONTACT FOR VOLUME PRICING
Free ground shipping on US orders over $50 (excl. AK and HI)
Out of stock · we can still source it
Key specs
- Medium Brightness / TN display
- Diagonal Dimension: 3.2 Inch
- Resolution: 240 x 320 pixels
- Interface: 4-wire SPI + Arduino Compatible
- Luminance: 300 cd/m2
- Viewing Direction: 12 o’clock
- Touch Panel: None
Volume pricing
| Quantity | Unit price | Save |
|---|---|---|
| 1–24 | $14.50 | — |
| 25–49 | $13.83 | −5% |
| 50–99 | $13.15 | −9% |
| 100–149 | $12.54 | −14% |
| 150–199 | $12.17 | −16% |
| 200+ | $11.80 | −19% |
Email when stock available
Request this part
Tell us how many you need. We reply with price and lead time, and email you when stock lands.
Request sent
Specifications
Downloads & resources
A simple Arduino TN TFT 3.2″ Medium Brightness / TN Mode, Transmissive / 12 o’clock Viewing Direction with 240 x 320 dots, 4-wire SPI Interface.
- 3.2″ TN, 240 x 320
- Medium Brightness / TN
- Transmissive
- 12 o’clock Viewing Direction
- Operating Temp: -20°C to 70°C
- Storage Temp: -30°C to 80°C
- ROHS Compliant
| Model / Series Name | AFL240320A0-3.2N12NTM-ANO |
| Diagonal Dimension (Inches) | 3.2 |
| Dots WxH | 240 x 320 |
| Module Size WxHxD max (mm) | 56.0 x 90.0 x 6.0 |
| Display Mode | TN / Transmissive |
| IC | ST7789V |
| Interface Type | 4-wire SPI + Compatible Arduino |
| Logic Power Supply Voltage | 3.3 |
| Backlight | LED, WHITE |
| Luminance | 300 cd/m2 |
| Touch Panel | None |
Custom Made Options
FPC or Cable Customization
Obtain a customized cable or FPC to enhance the security and efficiency of your connections, by adjusting cable length, position, pinout, or adding extra connectors.
Touch Panel with Optical Bonding
Improve your user experience by incorporating either capacitive or resistive touch screen. We will tailor the thickness, color or shape of the touch panel and cover lens to seamlessly integrate with your design with or without OCA or OCR bonding.
GUI or Interface Customization
Select the most suitable connection or GUI interface. We can integrate various interfaces such as HDMI, USB, SPI, I2C, UART, MCU, VGA, and others into your display to fulfill your design objective.
Contact Us
Additional information
| Weight | 0.06 lbs |
|---|---|
| Dimensions | 83 × 52 × 13 mm |
| Backlight color | White |
| Diagonal Size (Inch) | 3.2 |
| Display type | Arduino TFT Display, TFT – IPS |
| Polarizer type | Transmissive |
| Resolution | 240×320 |
| Touch Panel | None |
| Viewing direction | 12 o'clock |
| Interface | SPI |
