7.0” TN TFT display with SPI interface, 800×480, Medium Brightness
$54.43CONTACT FOR VOLUME PRICING
20 in stock

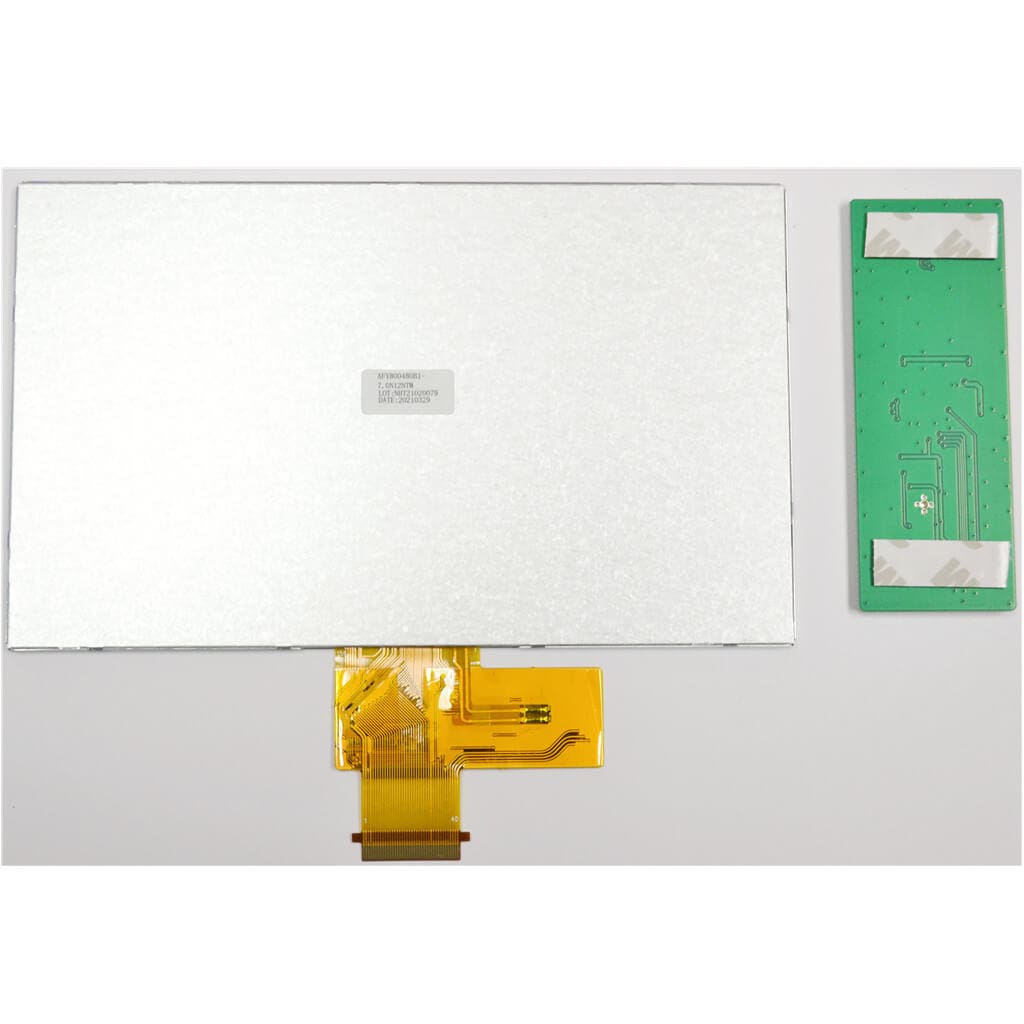

Ships from Seattle- Includes 1pc AFY800480B1-7.0N12NTM and 1pc AFY7.0NB-SPI-PCB01
- Diagonal Dimension: 7.0 Inch
- Resolution: 800 x 480 pixels
- Interface: SPI
- Luminance: 472 cd/m2
- Viewing Direction: 12 o’clock
- Touch Panel: None
Description
7.0″ TN TFT Display 800×480 Full Color / Medium Brightness TFT Module, Transmissive, with SPI interface.
7.0 Inch TN TFT Display with SPI interface
- 7.0″ TFT, 800 x 480
- Full Color / Medium Brightness TFT Module
- 12 o’clock Viewing Direction
- Transmissive
- Operating Temp: -20°C to 70°C
- Storage Temp: -30°C to 80°C
- ROHS Compliant
| Model / Series Name | AFY800480B1-7.0N12NTM-SPI |
| Diagonal Dimension (inch) | 7.0 |
| Dots WxH | 800 x 480 |
| Module Size WxHxD max (mm) | 164.9 * 100.0 * 5.4mm |
| Display Mode | TN TFT / Transmissive / Normal White |
| IC | NP4185 |
| Interface Type | SPI interface |
| Logic Power Supply Voltage | 3.3V |
| Backlight | White LED |
| Luminance | 472 cd/m2 |
| Touch Panel | None |
These are just few of our famous TFT modules; we still have a lot of TFT products to offer.
If none of these part numbers meet your requirements in terms of brightness, interface, or connection method, please email us at info@orientdisplay.com.
Custom Made Options
FPC or Cable Customization
Obtain a customized cable or FPC to enhance the security and efficiency of your connections, by adjusting cable length, position, pinout, or adding extra connectors.
Touch Panel with Optical Bonding
Improve your user experience by incorporating either capacitive or resistive touch screen. We will tailor the thickness, color or shape of the touch panel and cover lens to seamlessly integrate with your design with or without OCA or OCR bonding.
GUI or Interface Customization
Select the most suitable connection or GUI interface. We can integrate various interfaces such as HDMI, USB, SPI, I2C, UART, MCU, VGA, and others into your display to fulfill your design objective.
Contact Us
Additional information
| Weight | 0.7 lbs |
|---|---|
| Dimensions | 100 × 164.5 × 4 mm |
| backlightcolor | White |
| diagonal-size | 7.0 |
| displaytype | TFT – TN |
| polarizertype | Transmissive |
| touchpanel | None |
| viewingdirection | 12 o'clock |
| interface | SPI |
