Introducing a Smarter Low-Power LCD Design for Small Home Appliances

In the ever-evolving world of smart appliances, power efficiency and user experience are equally vital. We’re excited to introduce our innovative dual-layer LCD solution, designed specifically for small home appliance applications that demand both high-resolution visuals and ultra-low-power standby modes.

The Architecture: Two Displays in One Panel

Our LCD module integrates two independent layers:

Upper Layer: Segment-type SVTN (VA panel)

Lower Layer: High-resolution IPS panel

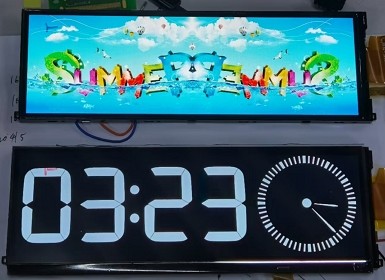

This unique structure allows the device to switch seamlessly between high-performance display and low-power standby mode:

IPS Display (Active Mode):
When the device is in use, the vibrant IPS panel delivers a crisp, detailed user interface.

SVTN (VA) Display (Standby Mode):
When idle, the device shifts to the VA segment display. This layer consumes extremely low power, and can still display dynamic information like time, temperature, or status updates. To further reduce energy use, the backlight can be dimmed without losing visibility.



Why Not Use RAM-LCD ICs Instead?

While an alternative solution is to use a RAM-integrated LCD driver IC, that approach has several limitations:

  1. Static-only content unless the MCU frequently wakes up, leading to more power consumption.
  2. Software complexity increases significantly with real-time content.
  3. Higher BOM cost due to limited IC availability and premium pricing.

In contrast, our SVTN (VA) -based design is:

  1. Software-friendly: Minimal MCU involvement needed.
  2. Cost-effective: SVTN (VA) segments are simpler to drive, and component selection is broader.
  3. Power-efficient with dynamic capability.

Application Scenarios

Smart kettles, cookers, and humidifiers

IoT-enabled thermostats or timers

Battery-powered home gadgets requiring long standby time



Frequently asked questions

What is a dual-layer LCD?

An LCD module that integrates two independent layers: an upper segment-type SVTN (VA) panel and a lower high-resolution IPS panel. It is designed for small home appliances that need both high-resolution visuals and ultra-low-power standby.

How does a dual-layer LCD save power?

In active mode the IPS panel shows a crisp, detailed interface. When idle, the device switches to the VA segment display, which consumes extremely low power and can still show time, temperature or status. The backlight can also be dimmed without losing visibility.

Why use an SVTN (VA) layer instead of a RAM-LCD IC?

RAM-LCD ICs show static-only content unless the MCU wakes frequently, which uses more power, add software complexity for real-time content, and raise BOM cost. The SVTN (VA) design needs minimal MCU involvement and is cost-effective, with simpler segments to drive and broader component choice.

What applications suit the dual-layer LCD?

Smart kettles, cookers and humidifiers, IoT-enabled thermostats or timers, and battery-powered home gadgets that need long standby time.
