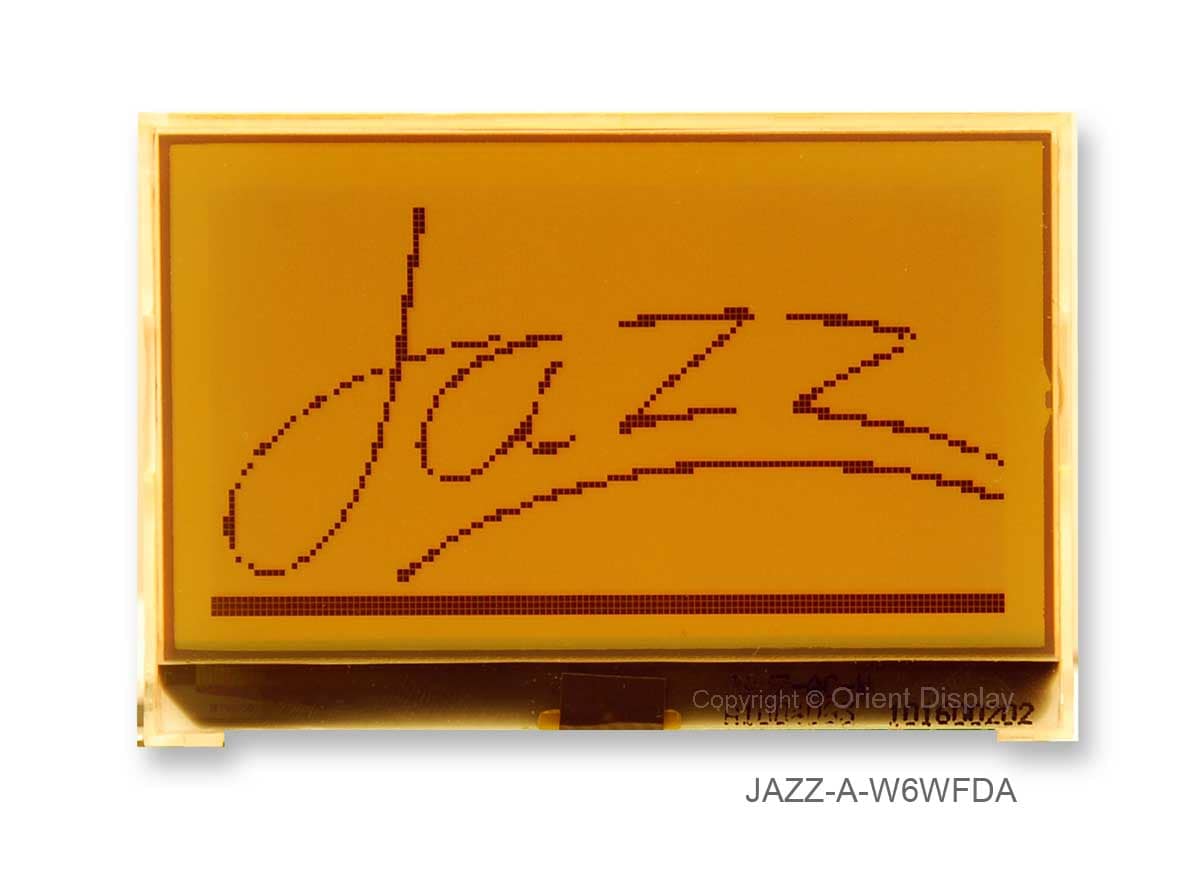

JAZZ A-W6WFDA Module (LCD+BL, Graphic COG 128×64)
$9.27CONTACT FOR VOLUME PRICING
Free ground shipping on US orders over $50 (excl. AK and HI)
6 in stock
Ships from SeattleKey specs
- JAZZ Monochrome Graphic LCD Module
- Diagonal Dimension: 2.7 Inch
- Resolution: 128 x 64 pixels
- LCD mode: FSTN Positive (JAZZ-AC-W)
- Polarizer: Transflective
- Backlight: Amber LED (JAZZ-AE-A)
- Dark on Amber Background
- Connection: FPC
- IC Package Type: COG
- Touch Panel: None
Volume pricing
| Quantity | Unit price | Save |
|---|---|---|
| 1–24 | $9.27 | — |
| 25–49 | $8.18 | −12% |
| 50–99 | $7.09 | −24% |
| 100–149 | $6.58 | −29% |
| 150–199 | $6.20 | −33% |
| 200+ | $5.81 | −37% |
Contact us for larger volume orders and any other enquiries.
Need volume, a modified part or a lead time?
Need a display built to your own spec? Start a custom project and our engineers respond within one business day.
Start a Custom ProjectSpecifications
Downloads & resources
JAZZ A-W6WFDA is a combination of JAZZ-AC-W (LCD in FSTN positive mode) and JAZZ-AE-A (Amber LED backlight). This JAZZ product is a 2.7″ monochrome 128×64 dot matrix, COG (Chip on Glass) Graphic LCD Module in FSTN Positive LCD Mode with Wide Temperature Range (Operating Temp: -20°C to 70°C, Storage Temp: -30°C to 80°C), and Amber LED Backlight. It has a six O’clock viewing direction and a transflective polarizer recommended for applications that will be used both indoor and outdoor. This product is assembled chip on glass with 1/65 Duty and 1/9 Bias. This LCD uses Controller IC ST7567 or equivalent with an option to choose between serial interface (4-line SPI) and parallel interface (6800 or 8080). This is an ROHS compliant product manufactured with ISO standards and procedures.
- LCD in FSTN Positive Mode with Amber LED Backlight
- 6 o’clock Viewing Direction
- Operating Temp: -20°C to 70°C
- Storage Temp: -30°C to 80°C
- Transflective Polarizer
- Amber Backlight
- COG Type (Chip on Glass)
- ROHS Compliant
Downloadable Example Codes for JAZZ-A Modules
JAZZ-AC-W Software Code (Controller ST7567 MCU NXP1766)
JAZZ-AC-W Display Code
Product Demo (Video): JAZZ-AC-W with White LED backlight
Optional Accessories
JAZZ-A Evaluation Board: JAZZ-AB
JAZZ-A Standard Resistive Touch Panel: JAZZ-AT
| Model/Series Name | JAZZ-AC-W JAZZ-AE-A |
| Dots/ Resolution | 128 x 64 |
| LCD Mode | FSTN Positive |
| Polarizer Type | Transflective |
| Diagonal Dimension (inches) | 2.7 |
| Module Size WxHxT max(mm) | 71.20 x 48.50 x 5.20 (with BL) |
| View Area WxH (mm) | 65.50 x 37.20 |
| Dot Size WxH (mm) | 0.49 x 0.45 |
| Dot Pitch WxH (mm) | 0.52 x 0.48 |
| Backlight | Amber |
| Controller | ST7567 |
| LCD Assembly | COG (Chip on Glass) |
JAZZ-A Modules are one of our best selling graphic LCD module offerings. It is widely known in the LCD market because it is available in many varieties which gives it a lot of versatility to formulate any LCD mode and back-light color combination you can think of while having very competitive pricing. This Line also offers these combinations without having to modify your PCB or software design.
LCD Options: FSTN Positive JAZZ-AC-W | FSTN Negative JAZZ-AC-T |
STN Positive Gray JAZZ-AC-G | STN Positive Yellow Green JAZZ-AC-Y | STN Negative Blue JAZZ-AC-B
LED backlight Options: White JAZZ-AE-W | Red JAZZ-AE-R | Blue JAZZ-AE-B
Green JAZZ-AE-G | Amber JAZZ-AE-A | Yellow Green JAZZ-AE-Y
.jpg)
Additional information
| Weight | 0.63 lbs |
|---|---|
| Dimensions | 48.50 × 71.20 × 5.20 mm |
| Backlight color | Amber |
| Diagonal size | 2.7 |
| Display mode | FSTN – Positive |
| Display type | Graphic LCD |
| Polarizer type | Transflective |
| Resolution | 128×64 |
| Touch panel | None |
| Viewing direction | 6 o'clock |
