JAZZ COG Graphic LCD (128×64)

Orient Display’s exclusive JAZZ graphic LCD line — JAZZ-A (2.7″) and JAZZ-B (1.0″) chip-on-glass 128×64 modules, built so you can mix LCD mode and backlight-color combinations without redesigning your PCB.

Start a custom project Explore standard products
Features

JAZZ-A (2.7 Inch) COG Graphic LCD Features

JAZZ A Series is one of our best selling graphic LCD module offerings. It is widely known to the LCD market because of its versatility in formulating LCD mode and back-light color combinations and for its competitive pricing. We created this product in order to offer convenient options for customers to easily build their own LCD combinations without having to rebuild their PCB design

  • 2.7″ Graphic COG (Chip-on-glass) LCD Module with 128×64 dots
  • Long-term product availability
  • Downloadable example codes for product testing. Access them here
  • Accessories: JAZZ-AB and JAZZ-AT (Resistive Touch Panel)
Orient Display: JAZZ-A LCD and Backlight combinations, matching resistive touch panel and evaluation kit
At a glance

JAZZ-A LCD Mode Options

Size
Type
Resolution
Dimension (mm)
Viewing Area (mm)
Mode
Features
Temp Range
Model
Stock
IC
Eval Kit
2.7
LCD
128×64
69.10×46.40×2.90
65.50×37.20
+ FSTN
6:00, Transflective, 1/65Duty, 1/9Bias
Op: -20°C-70°C, St: -30°C-80°C
2.7
LCD
128×64
69.10×46.40×2.90
65.50×37.20
– FSTN
6:00, Transflective, 1/65Duty, 1/9Bias
Op: -20°C-70°C, St: -30°C-80°C
2.7
LCD
128×64
69.10×46.40×2.90
65.50×37.20
STN YG
6:00, Transflective, 1/65Duty, 1/9Bias
Op: -20°C-70°C, St: -30°C-80°C
2.7
LCD
128×64
69.10×46.40×2.90
65.50×37.20
STN Gray
6:00, Transflective, 1/65Duty, 1/9Bias
Op: -20°C-70°C, St: -30°C-80°C
2.7
LCD
128×64
69.10×46.40×2.90
65.50×37.20
STN Blue
6:00, Transmissive, 1/65Duty, 1/9Bias
Op: -20°C-70°C, St: -30°C-80°C
2.7
LCD
128×64
69.10×46.40×2.90
65.50×37.20
ASTN
6:00, Transflective, 1/65Duty, 1/9Bias
Op: -20°C-70°C, St: -30°C-80°C
 Contact Us
At a glance

JAZZ-A LCD Backlight Color Options

Size
Type
Dimension (mm)
Color
Features
Model
Stock
2.7
LED
71.20×48.50×5.20
White
Snap-in Frame, Wired Type
2.7
LED
71.20×48.50×5.20
Amber
Snap-in Frame, Wired Type
2.7
LED
71.20×48.50×5.20
Yellow Green
Snap-in Frame, Wired Type
2.7
LED
71.20×48.50×5.20
Blue
Snap-in Frame, Wired Type
2.7
LED
71.20×48.50×5.20
Green
Snap-in Frame, Wired Type
2.7
LED
71.20×48.50×5.20
Red
Snap-in Frame, Wired Type
2.7
LED
71.20×48.50×5.20
Red, Green, and Blue
Snap-in Frame, Wired Type
At a glance

JAZZ-A LCD Accessories

Size
Type
Dimension (mm)
Viewing Area (mm)
Features
Model
Stock
2.7
4-Wire
Resistive Touch Panel
69.10 x 46.40 x 1.00
65.50 x 37.20
ITO Glass, F/G Film-Glass Structure, Operating Pressure: 30-70g,  3H Surface Hardness, Scratch Resistant
Evaluation Kit for JAZZ-A Modules
 JAZZ-AB
  • 1.0″ Graphic COG (Chip-on-glass) LCD Module with 128×64 dots
  • LCD Mode: FSTN positive
  • Backlight Colors: Green or White
  • Long-term product availability
JAZZ-BE-G 1.0-inch JAZZ-B COG graphic LCD module
At a glance

JAZZ-B LCD Mode Options

Size
Type
Resolution
Dimension (mm)
Viewing Area (mm)
Mode
Features
Temp Range
Model
Stock
IC
Eval Kit
1 .0
LCD
128×64
28.50 x 20.00 x 1.80
26.50 x 14.00
+ FSTN
6:00, Transflective
Op: -20°C-70°C, St: -30°C-80°C
At a glance

JAZZ-B LCD Backlight Color Options

Size
Type
Dimension (mm)
Color
Features
Model
Stock
1 .0
LED
28.00 x 20.00 x 2.30
White
Pin Type
1 .0
LED
28.00 x 20.00 x 2.30
Green
Pin Type
Stay in the LCD family

Related LCD lines

JAZZ modules are the proprietary, compact end of Orient Display’s graphic-LCD range. Explore the broader dot-matrix Graphic LCD catalog, fixed-text Character LCD modules, or bare LCD Glass Panels.

Graphic LCD

GRAPHIC LCD

Pixel-addressable monochrome and multi-color dot-matrix graphic modules, 1″–5.2″, in COG, COB and COF builds.

Read more
Character LCD

CHARACTER LCD

Ready-to-drive alphanumeric text modules, shipped with initialization code and schematics.

Read more

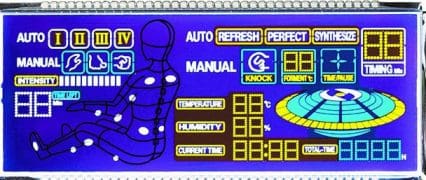

LCD Glass Panels
