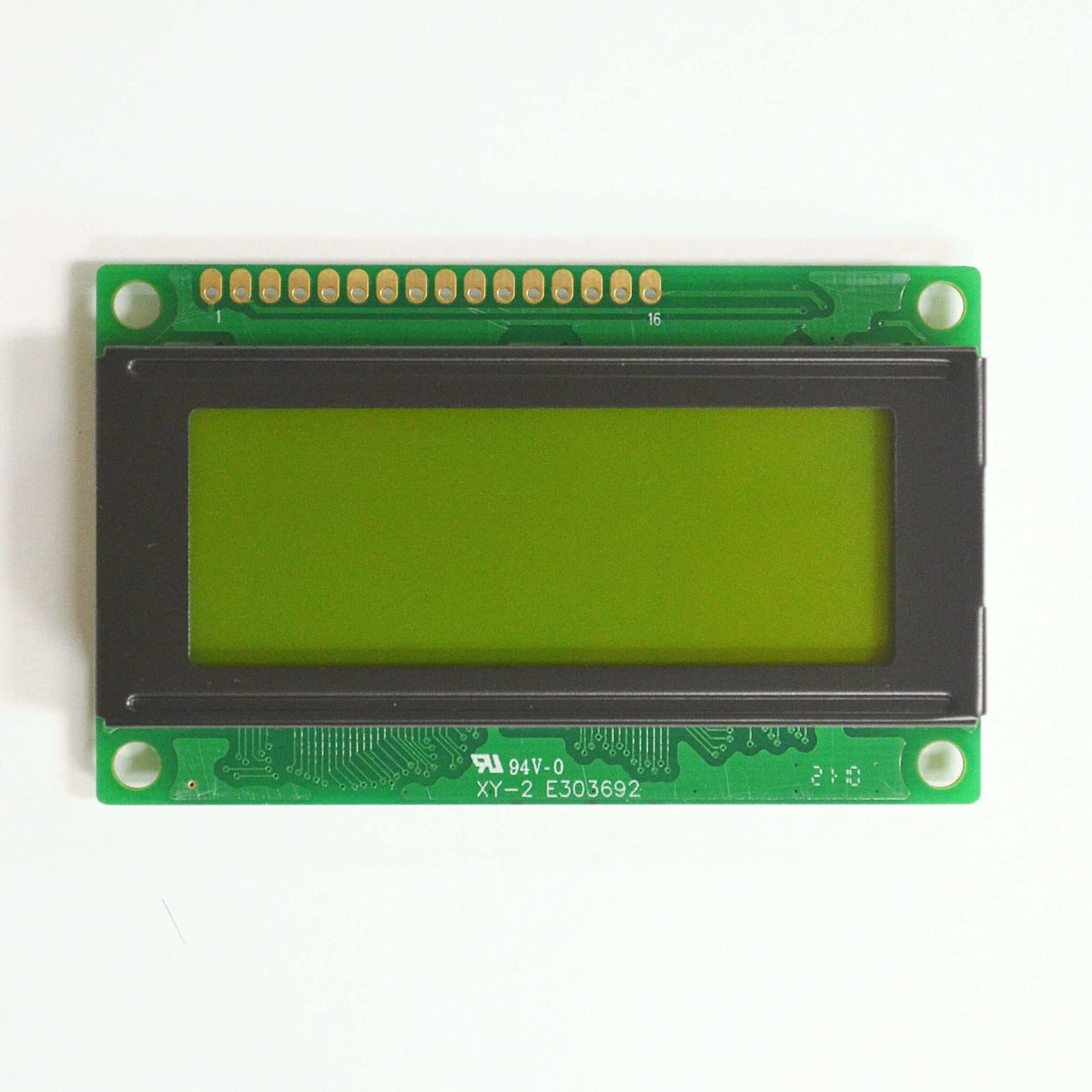

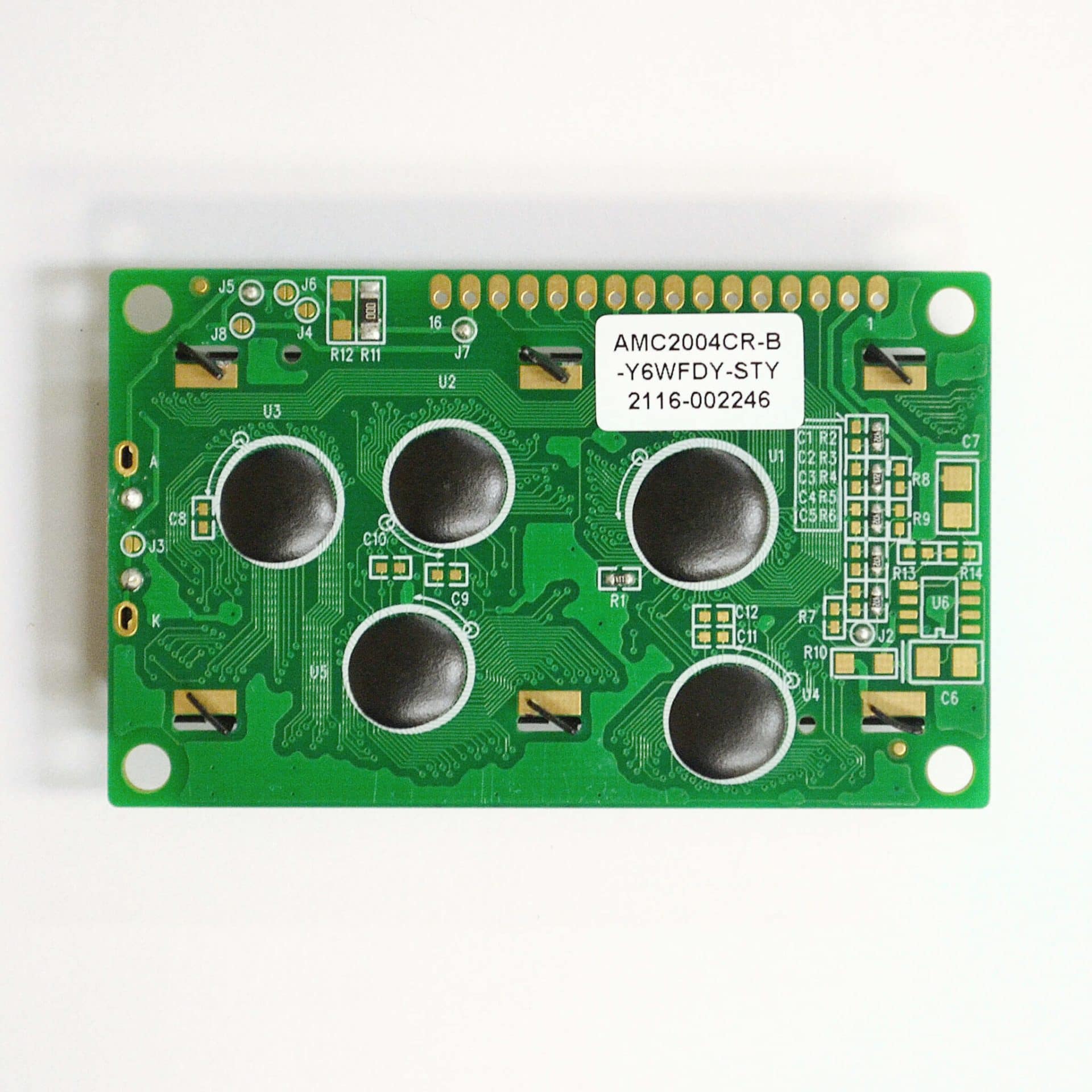

AMC2004CR-B-Y6WFDY-STY (20×4 Character LCD Module)
$12.33CONTACT FOR VOLUME PRICING
108 in stock
Ships from Seattle- Number of Characters: 20 x 4
- LCD mode: STN Positive
- Polarizer: Transflective
- Backlight: Yellow Green LED
- Dark Character on Yellow Green Background
- IC Package Type: COB
Pricing table
| Quantity | Unit Price |
|---|---|
| 50-99 | $9.46 |
| 100- | $8.72 |
Contact us for larger volume orders and any other enquiries.
Description
AMC2004CR-B-Y6WFDY-STY from Orient Display
A 20×4 dot matrix Character LCD Module display in STN Positive LCD Mode, Six O’clock viewing direction, Wide Temperature Range (Operating Temp: -20°C to 70°C, Storage Temp: -30°C to 80°C), and Yellow Green LED Backlight. AMC2004CR-B-Y6WFDY-STY has a transflective polarizer, recommended for applications that will be used both indoor and outdoor. This product is assembled Chip On Board with 1/16 Duty and a Controller. The interface type is Parallel. This is an ROHS Compliant product manufactured with ISO standards and procedures.
20×4 Character LCD Module AMC2004CR-B-Y6WFDY-STY
The highest quality product at the lowest price.
- STN Positive
- 6 o’clock Viewing Direction
- Operating Temp: -20°C to 70°C
- Storage Temp: -30°C to 80°C
- Transflective Polarizer
- Yellow Green LED Backlight
- COB Type (Chip on Board)
- ROHS Compliant
| Model/Series Name | AMC2004CR-B-Y6WFDY-STY |
| Characters Displayed x Lines | 20 x 4 |
| LCD Mode | STN Positive |
| Polarizer Type | Transflective |
| Module Size WxHxT max(mm) | 77.0 x 47.0 x 14.0（MAX) |
| View Area WxH (mm) | 60.0 x 22.0 |
| Character Size WxH (mm) | 2.30 x 4.03 |
| Backlight | Yellow Green LED |
| Controller | ST7066Uv22 or equivalent |
| Interface Type | Parallel |
| LCD Assembly | COB (Chip on Board) |
Please visit Orient Display to see the full range of Character LCD Modules, Graphic LCD Modules, LCD Glass Panels, and Full Colored TFT Modules that we can offer.
Please send your inquiries to info@orientdisplay.com
Additional information
| Weight | 0.1 lbs |
|---|---|
| Dimensions | 77 × 46 × 13 mm |
| backlightcolor | Yellow-Green |
| characterxlines | 20 x 4 |
| displaymode | STN – Positive (Gray) |
| displaytype | Character LCD |
| polarizertype | Transflective |
| touchpanel | None |
| viewingdirection | 6 o'clock |
