AMC0802BR-B-G6WFDY
AMC0802BR-B-G6WFDY (8×2 Character LCD Module)
$5.98CONTACT FOR VOLUME PRICING
136 in stock
Ships from SeattleNo MOQ on standard partsFree shipping over $5024-hour sample shipping from US stock
Key specs
- Number of Characters: 8 x 2
- LCD mode: STN Positive Gray
- Polarizer: Transflective
- Backlight: Yellow Green LED
- Dark Character on Yellow Green Background
- IC Package Type: COB
Volume pricing
| Quantity | Unit price | Save |
|---|---|---|
| 1–24 | $5.98 | — |
| 25–49 | $5.30 | −11% |
| 50–99 | $4.61 | −23% |
| 100–149 | $4.26 | −29% |
| 150–199 | $3.97 | −34% |
| 200+ | $3.68 | −38% |
Contact us for larger volume orders and any other enquiries.
Need a display built to your own spec? Start a custom project and our engineers respond within one business day.
Start a Custom ProjectSpecifications
Downloads & resources

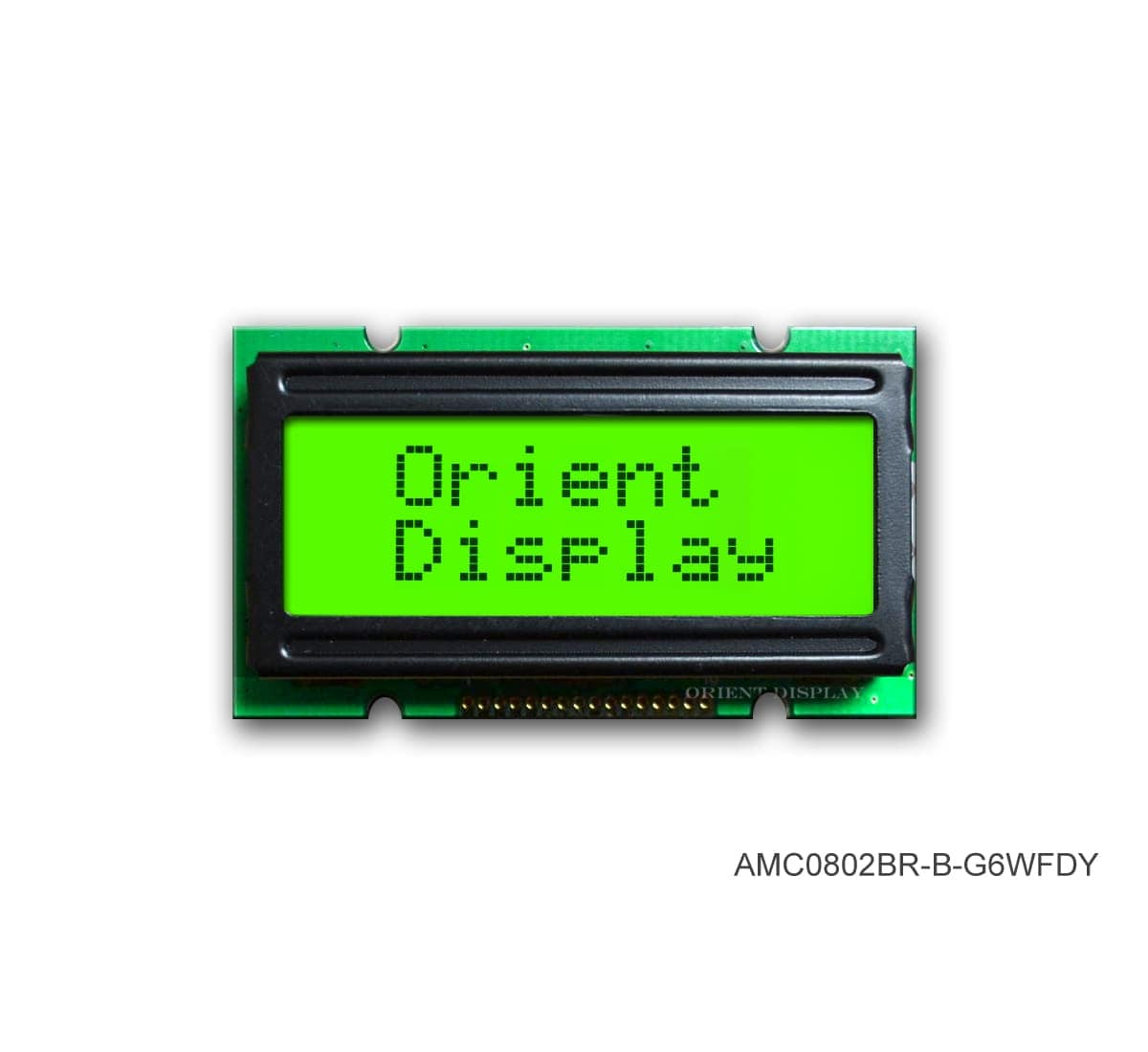

An 8×2 dot matrix Character LCD Module display STN Positive Gray LCD Mode, Six O’clock viewing direction, Wide Temperature Range (Operating Temp: -20°C to 70°C, Storage Temp: -30°C to 80°C), and Yellow Green LED Backlight. It has a transflective polarizer suitable for indoor and outdoor usage. This product is assembled Chip On board with 1/16 Duty and a Controller IC S6A0069 or equivalent. The interface type is Parallel. This is an ROHS Compliant product manufactured with ISO standards and procedures.
- STN Positive Gray
- 6 o’clock Viewing Direction
- Operating Temp: -20°C to 70°C
- Storage Temp: -30°C to 80°C
- Transflective Polarizer
- Yellow Green LED Backlight
- COB Type (Chip on Board)
- ROHS Compliant

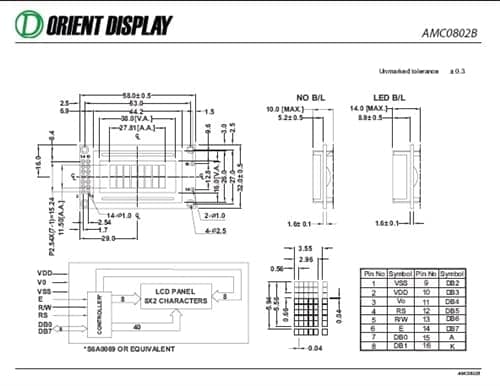

| Model/Series Name | AMC0802B |
| Characters Displayed x Lines | 8 x 2 |
| LCD Mode | STN Positive Gray |
| Polarizer Type | Transflective |
| Module Size WxHxT max(mm) | 58.0 x 32.0 x 14.0 |
| View Area WxH (mm) | 38.0 x 16.0 |
| Character Size WxH (mm) | 2.96 x 5.56 |
| Back-light | Yellow Green LED |
| Controller | S6A0069 or equivalent |
| Interface Type | Parallel |
| LCD Assembly | COB (Chip on Board) |
Check out our Character LCD Module Evaluation Kit
Additional information
| Weight | 0.27 lbs |
|---|---|
| Dimensions | 32 × 58 × 14 mm |
| Backlight color | Yellow-Green |
| Characters × lines | 8×2 |
| Display mode | STN – Positive (Gray) |
| Display type | Character LCD |
| Polarizer type | Transflective |
| Touch panel | None |
| Viewing direction | 6 o'clock |
