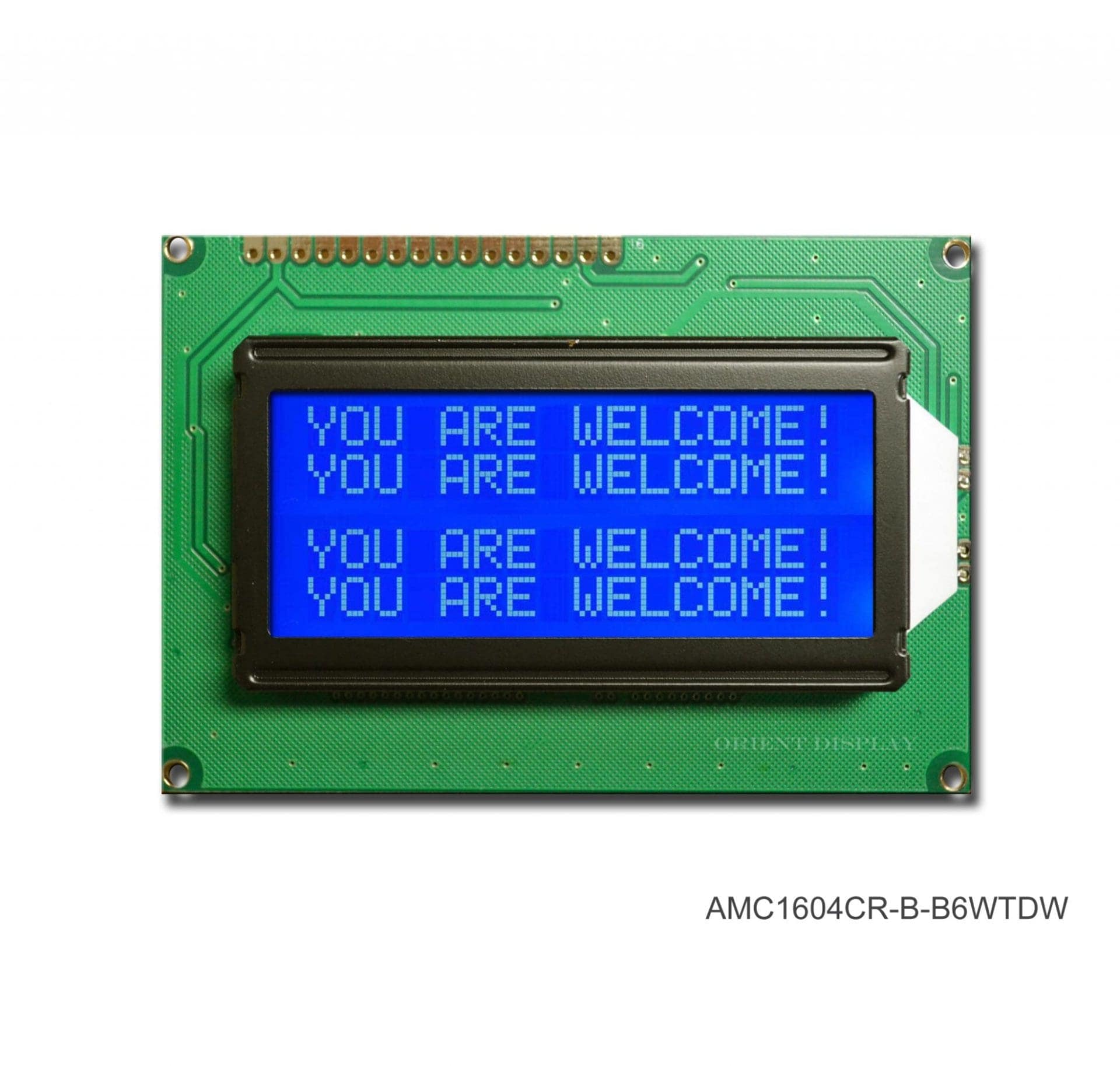

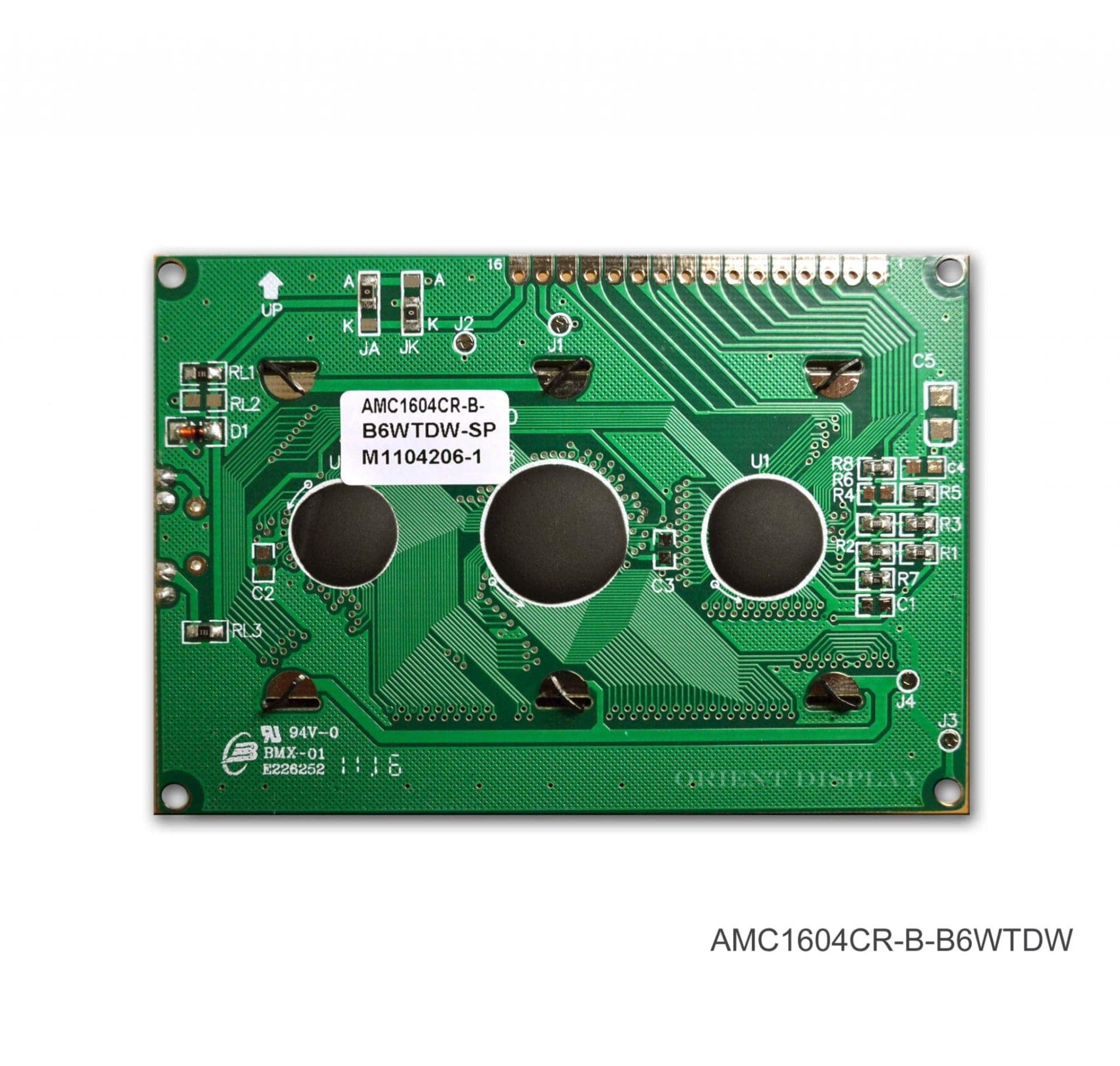

AMC1604CR-B-B6WTDW (16×4 Character LCD Module)
$10.87CONTACT FOR VOLUME PRICING
Free ground shipping on US orders over $50 (excl. AK and HI)
357 in stock
Ships from SeattleKey specs
- Number of Characters: 16 x 4
- LCD mode: STN Negative Blue
- Polarizer: Transmissive
- Backlight: White LED
- White Character on Blue Background
- IC Package Type: COB
Volume pricing
| Quantity | Unit price | Save |
|---|---|---|
| 1–24 | $10.87 | — |
| 25–49 | $9.64 | −11% |
| 50–99 | $8.40 | −23% |
| 100–149 | $7.76 | −29% |
| 150–199 | $7.23 | −33% |
| 200+ | $6.70 | −38% |
Contact us for larger volume orders and any other enquiries.
Need volume, a modified part or a lead time?
Need a display built to your own spec? Start a custom project and our engineers respond within one business day.
Start a Custom ProjectSpecifications
Downloads & resources
A 16×4 dot matrix Character LCD Module display in STN Negative Blue LCD Mode, Six O’clock viewing direction, Wide Temperature Range (Operating Temp: -20°C to 70°C, Storage Temp: -30°C to 80°C), and White LED Backlight. It has a transmissive polarizer suitable for darker environment. This product is assembled Chip On board with 1/16 Duty and a Controller IC S6A0069 or equivalent. The interface type is Parallel. This is an ROHS Compliant product manufactured with ISO standards and procedures.
- STN Negative Blue
- 6 o’clock Viewing Direction
- Operating Temp: -20°C to 70°C
- Storage Temp: -30°C to 80°C
- Transmissive Polarizer
- White LED Backlight
- COB Type (Chip on Board)
- ROHS Compliant
| Model/Series Name | AMC1604C |
| Characters Displayed x Lines | 16 x 4 |
| LCD Mode | STN Negative Blue |
| Polarizer Type | Transmissive |

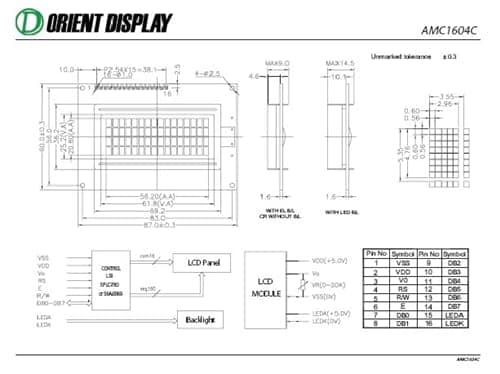

| Module Size WxHxT max(mm) | 87.0 x 60.0 x 14.5 |
| View Area WxH (mm) | 61.8 x 25.2 |
| Character Size WxH (mm) | 2.96 x 4.76 |
| Backlight | White LED |
| Controller | S6A0069 or equivalent |
| Interface Type | Parallel |
| LCD Assembly | COB (Chip on Board) |
Additional information
| Weight | 0.54 lbs |
|---|---|
| Dimensions | 60 × 87 × 14.5 mm |
| Backlight color | White |
| Characters × lines | 16 x 4 |
| Display mode | STN – Negative (Blue) |
| Display type | Character LCD |
| Polarizer type | Transmissive |
| Touch panel | None |
| Viewing direction | 6 o'clock |
