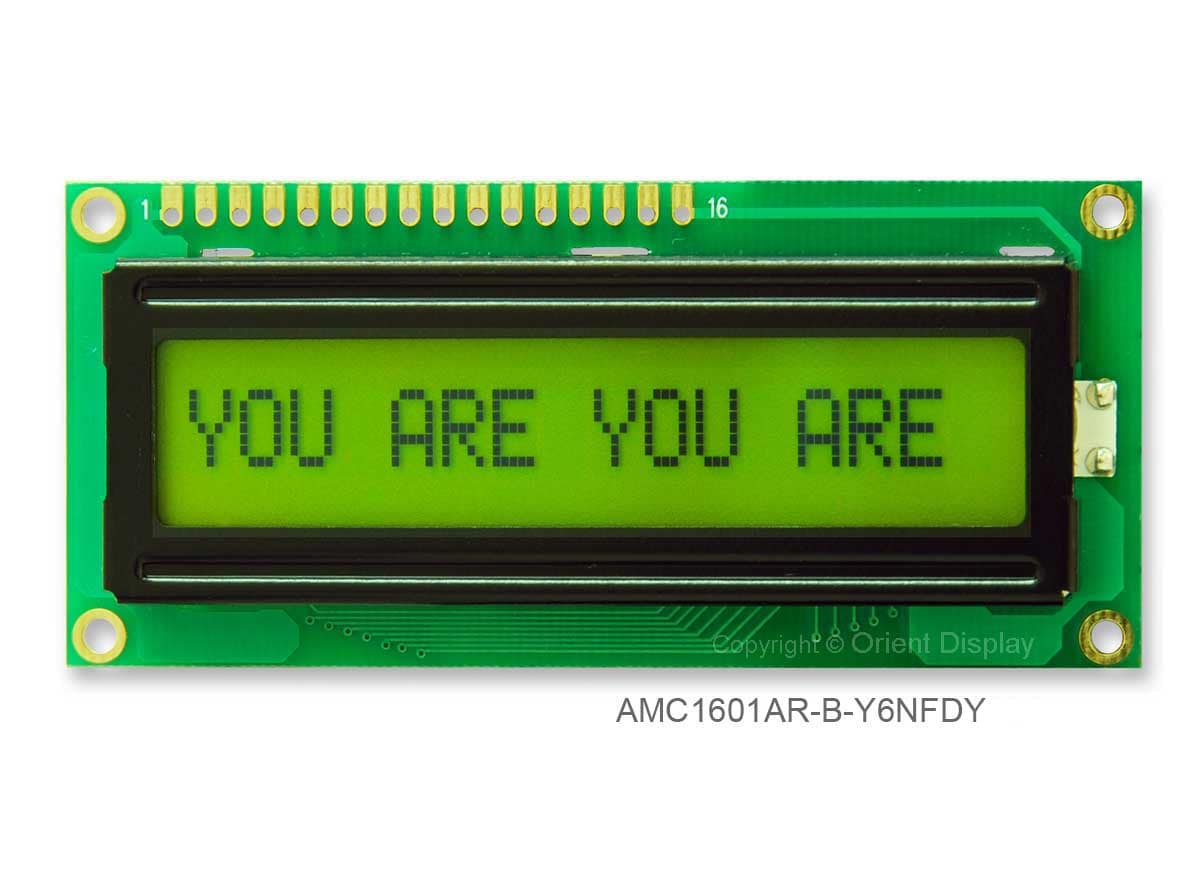

AMC1601AR-B-Y6NFDY (16×1 Character LCD Module)
$5.83CONTACT FOR VOLUME PRICING
Free ground shipping on US orders over $50 (excl. AK and HI)
Out of stock · we can still source it
Key specs
- Number of Characters: 16 x 1
- LCD mode: STN Positive Yellow Green
- Polarizer: Transflective
- Backlight: Yellow Green LED
- Dark Character on Yellow Green Background
- IC Package Type: COB
Volume pricing
| Quantity | Unit price | Save |
|---|---|---|
| 1–24 | $5.83 | — |
| 25–49 | $5.17 | −11% |
| 50–99 | $4.50 | −23% |
| 100–149 | $4.16 | −29% |
| 150–199 | $3.88 | −33% |
| 200+ | $3.59 | −38% |
Email when stock available
Request this part
Tell us how many you need. We reply with price and lead time, and email you when stock lands.
Request sent
Need a display built to your own spec? Start a custom project and our engineers respond within one business day.
Start a Custom ProjectSpecifications
Downloads & resources
A 16×1 dot matrix Character LCD Module display in STN Positive Yellow Green LCD Mode, Six O’clock viewing direction, Normal Temperature Range (Operating Temp: 0°C to 50°C, Storage Temp: -20°C to 60°C), and Yellow Green LED Backlight. It has a transflective polarizer, recommended for applications that will be used both indoor and outdoor. This product is assembled Chip On board with 1/16 Duty and a Controller IC S6A0069 or equivalent. The interface type is Parallel. This is an ROHS Compliant product manufactured with ISO standards and procedures.
- STN Positive Yellow Green
- 6 o’clock Viewing Direction
- Operating Temp: -20°C to 70°C
- Storage Temp: -30°C to 80°C
- Transflective Polarizer
- Yellow Green LED Backlight
- COB Type (Chip on Board)
- ROHS Compliant

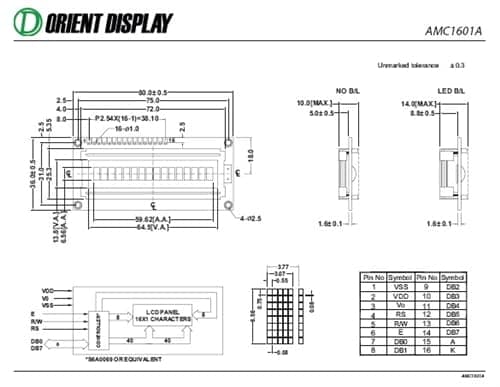

| Model/Series Name | AMC1601AR-B-Y6NFDY |
| Characters Displayed x Lines | 16 x 1 |
| LCD Mode | STN Positive Yellow Green |
| Polarizer Type | Transflective |
| Module Size WxHxT max(mm) | 80.0 x 36.0 x 14.0 |
| View Area WxH (mm) | 64.5.0 x 13.8 |
| Character Size WxH (mm) | 3.07 x 6.56 |
| Backlight | Yellow Green LED |
| Controller | S6A0069 or equivalent |
| Interface Type | Parallel |
| LCD Assembly | COB (Chip on Board) |
Additional information
| Weight | 0.33 lbs |
|---|---|
| Dimensions | 36 × 80 × 14 mm |
| Chars x Lines | 16×1 |
| Characters × lines | 16×1 |
| Backlight color | Yellow-Green |
| Display mode | STN – Positive (Yellow Green) |
| Display type | Character LCD |
| Polarizer type | Transflective |
| Touch panel | None |
| Viewing direction | 6 o'clock |
