CTP035B0

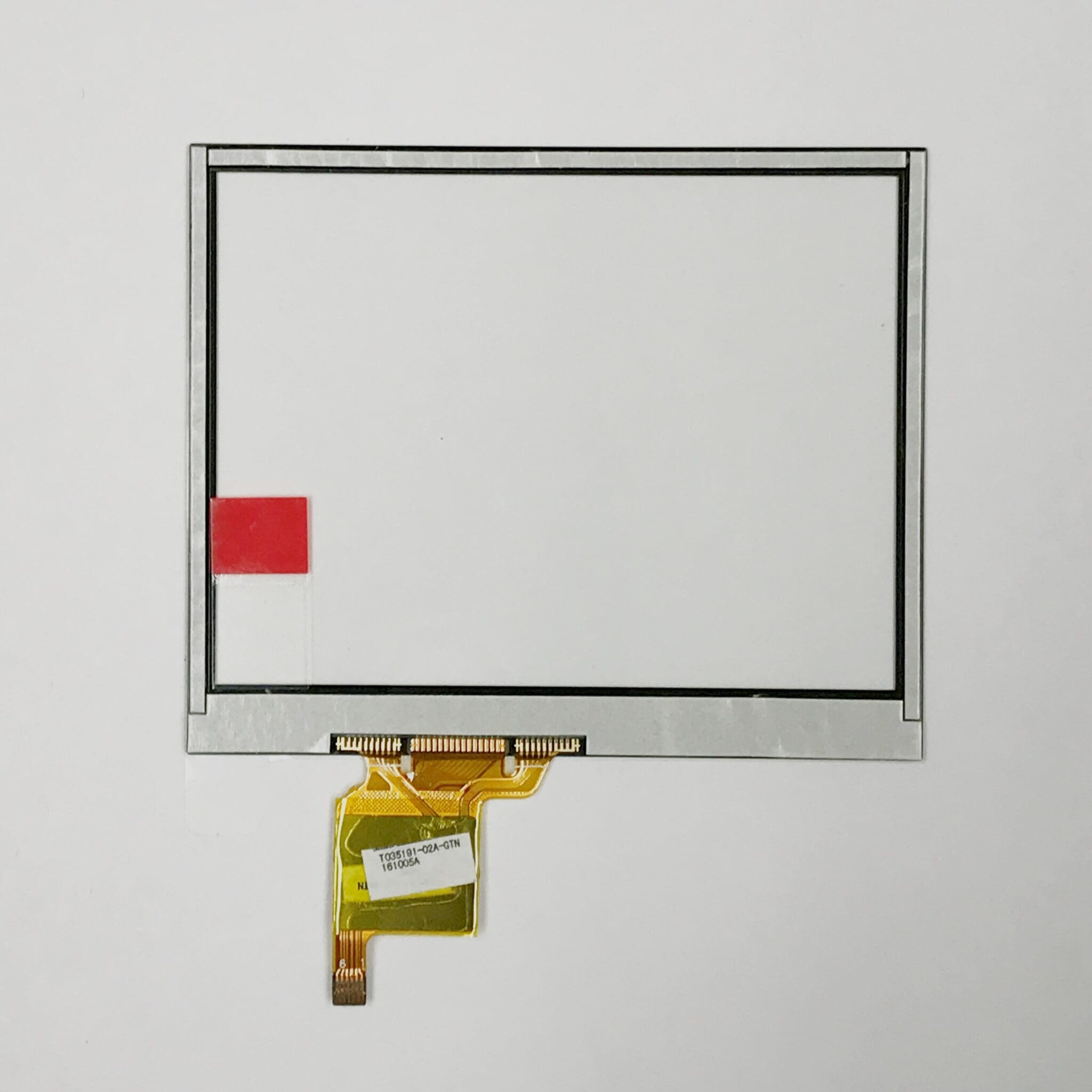

3.5” Capacitive Touch Panel CTP035B0
$16.00CONTACT FOR VOLUME PRICING
Free ground shipping on US orders over $50 (excl. AK and HI)
153 in stock
Ships from SeattleNo MOQ on standard partsFree shipping over $5024-hour sample shipping from US stock
Key specs
- Diagonal Dimension: 3.5 Inch
- Resolution: 320 x 240pixels
- Interface: I2C
- Touch Panel: Capacitive
Need volume, a modified part or a lead time?
Need a display built to your own spec? Start a custom project and our engineers respond within one business day.
Start a Custom ProjectSpecifications
A 3.5″ Capacitive Touch Panel for 3.5” TFT.
- 3.5″ Capacitive Touch Panel for TFT
- Glass (Lens) + Glass (Sensor)
- 5 Point Touch
- 320 x 240 Resolution
- Operating Temp: -20°C to 70°C
- Storage Temp: -30°C to 80°C
- ROHS Compliant
| Model / Series Name | CTP035B0 |
| Diagonal Dimension (inch) | 3.5 |
| Dots WxH | 320 x 240 |
| Cover Lens Size WxHxT (mm) | 76.9 x 63.9 x 1.5 |
| Sensor Size WxHxT (mm) | 76.4 x 63.3 x 0.55 |
| IC | FT5416 |
| Interface Type | I2C |
| Power Voltage | 3.3V |
| Operating Temp | -20°C to 70°C |
| Storage Temp | -30°C to 80°C |
| Structure | Glass (Lens) + Glass (Sensor) |
Need something different? Talk to an engineer Start a custom project
Additional information
| Weight | 0.04 lbs |
|---|---|
| Dimensions | 77 × 90 × 2 mm |
| Touch Panel | Capacitive Touch Panel |
| Diagonal Size (Inch) | 3.5 |
| Resolution | 320×240 |
