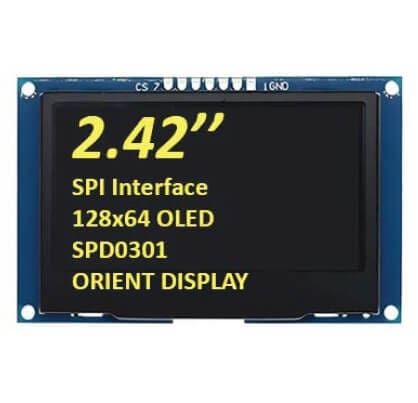

2.42″ Arduino OLED, 128×64, Monochrome Blue, 110 Nits, 4-wire SPI Interface
$14.66CONTACT FOR VOLUME PRICING
7 in stock
Ships from SeattleKey specs
- Monochrome Blue
- Diagonal Dimension: 2.42 Inch
- Resolution: 128 x 64pixels
- Interface: 4-wire SPI + Arduino Compatible
- Luminance: 110 cd/m2
- Viewing Direction: All
- Touch Panel: None
Volume pricing
| Quantity | Unit price | Save |
|---|---|---|
| 1–24 | $14.66 | — |
| 25–49 | $13.98 | −5% |
| 50+ | $13.29 | −9% |
Contact us for larger volume orders and any other enquiries.
Specifications
Downloads & resources
A simple Arduino 2.42″ OLED 128 x 64 dots, Passive Matrix, Monochrome Blue, 4-wire SPI Interface.
- 2.42″ OLED, 128x 64
- Monochrome Blue
- All Viewing Direction
- Operating Temp: -40°C to 70°C
- Storage Temp: -40°C to 85°C
- ROHS Compliant
| Model / Series Name | AOM12864A0-2.42BW-ANO |
| Diagonal Dimension (Inches) | 2.42 |
| Dots WxH | 128 x 64 |
| Module Size WxHxD max (mm) | 71.00 x 43.50 x 6.oo |
| Display Mode | Monochrome Blue |
| IC | SPD0301 |
| Interface Type | 4-wire SPI + Compatible Arduino |
| Logic Power Supply Voltage | 3.3 |
| Backlight | / |
| Luminance | 110 cd/m2 |
| Touch Panel | None |
Custom Made Options
FPC or Cable Customization
Obtain a customized cable or FPC to enhance the security and efficiency of your connections, by adjusting cable length, position, pinout, or adding extra connectors.
Touch Panel with Optical Bonding
Improve your user experience by incorporating either capacitive or resistive touch screen. We will tailor the thickness, color or shape of the touch panel and cover lens to seamlessly integrate with your design with or without OCA or OCR bonding.
GUI or Interface Customization
Select the most suitable connection or GUI interface. We can integrate various interfaces such as HDMI, USB, SPI, I2C, UART, MCU, VGA, and others into your display to fulfill your design objective.
