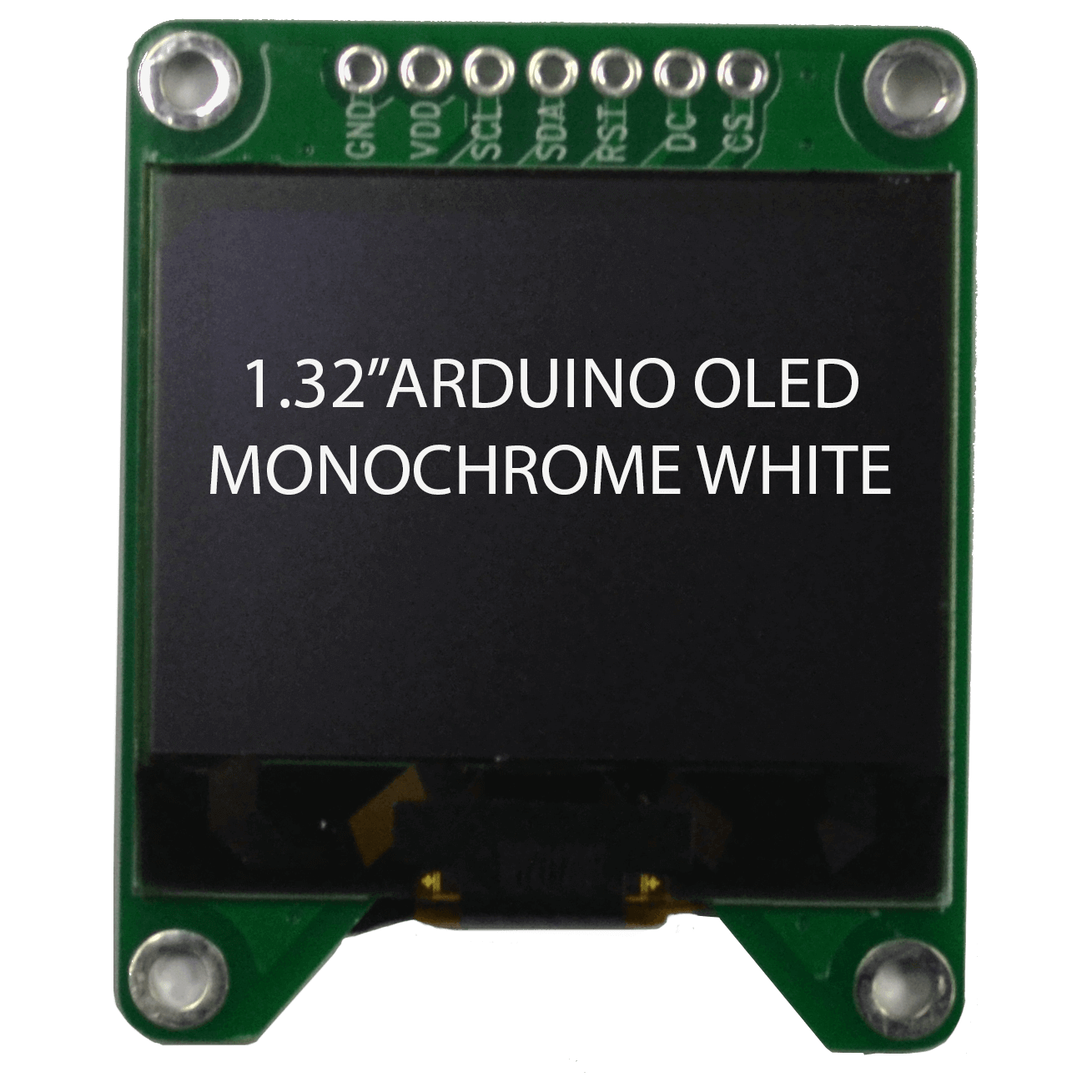

1.32″ Arduino OLED, 128×96, 60 Nits, 4-wire SPI Interface
$13.00CONTACT FOR VOLUME PRICING
15 in stock
Ships from Seattle- Monochrome White
- Diagonal Dimension: 1.32 Inch
- Resolution: 128 x 96 pixels
- Interface: 4-wire SPI + Arduino Compatible
- Luminance: 60 cd/m2
- Viewing Direction: All
- Touch Panel: None
Description
A simple Arduino 1.32″ OLED 128 x 96 dots, Passive Matrix, Monochrome White, 4-wire SPI Interface.
1.32″ Arduino OLED, 128×96, 60 Nits, 4-wire SPI Interface
- 1.32″ OLED, 128x 96
- Monochrome White
- All Viewing Direction
- Operating Temp: -40°C to 70°C
- Storage Temp: -40°C to 85°C
- ROHS Compliant

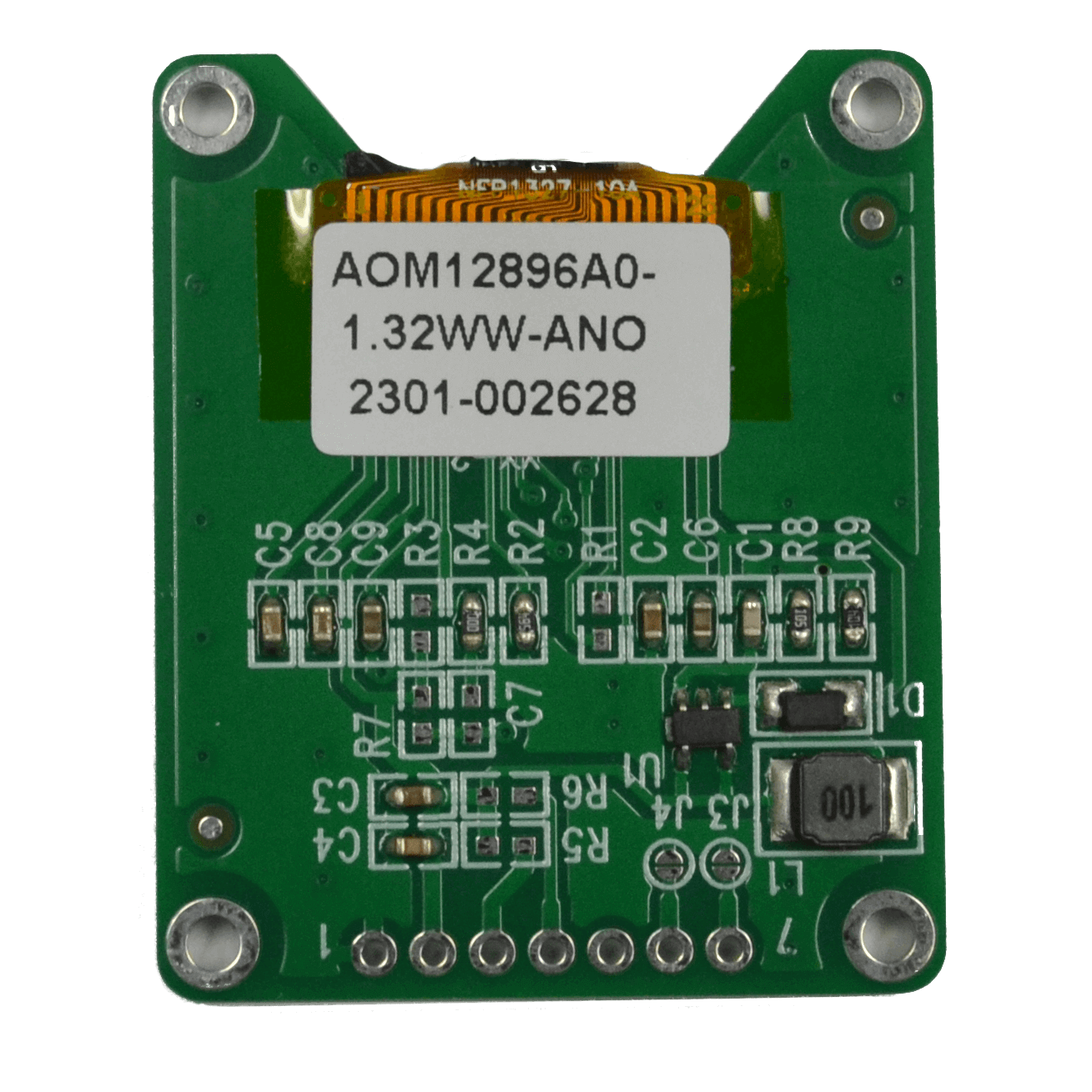

| Model / Series Name | AOM12896A0-1.32WW-ANO |
| Diagonal Dimension (Inches) | 1.32 |
| Dots WxH | 128 x 96 |
| Module Size WxHxD max (mm) | 34.0 x 41.0 x 6.0 |
| Display Mode | Monochrome White |
| IC | SSD1327 |
| Interface Type | 4-wire SPI + Compatible Arduino |
| Logic Power Supply Voltage | 3.0 |
| Backlight | / |
| Luminance | 60 cd/m2 |
| Touch Panel | None |
These are just few of our famous OLED modules; we still have a lot of OLED products to offer.
If none of these part numbers meet your requirements in terms of brightness, interface, or connection method, please email us at info@orientdisplay.com.
Custom Made Options
FPC or Cable Customization
Obtain a customized cable or FPC to enhance the security and efficiency of your connections, by adjusting cable length, position, pinout, or adding extra connectors.
Touch Panel with Optical Bonding
Improve your user experience by incorporating either capacitive or resistive touch screen. We will tailor the thickness, color or shape of the touch panel and cover lens to seamlessly integrate with your design with or without OCA or OCR bonding.
GUI or Interface Customization
Select the most suitable connection or GUI interface. We can integrate various interfaces such as HDMI, USB, SPI, I2C, UART, MCU, VGA, and others into your display to fulfill your design objective.
