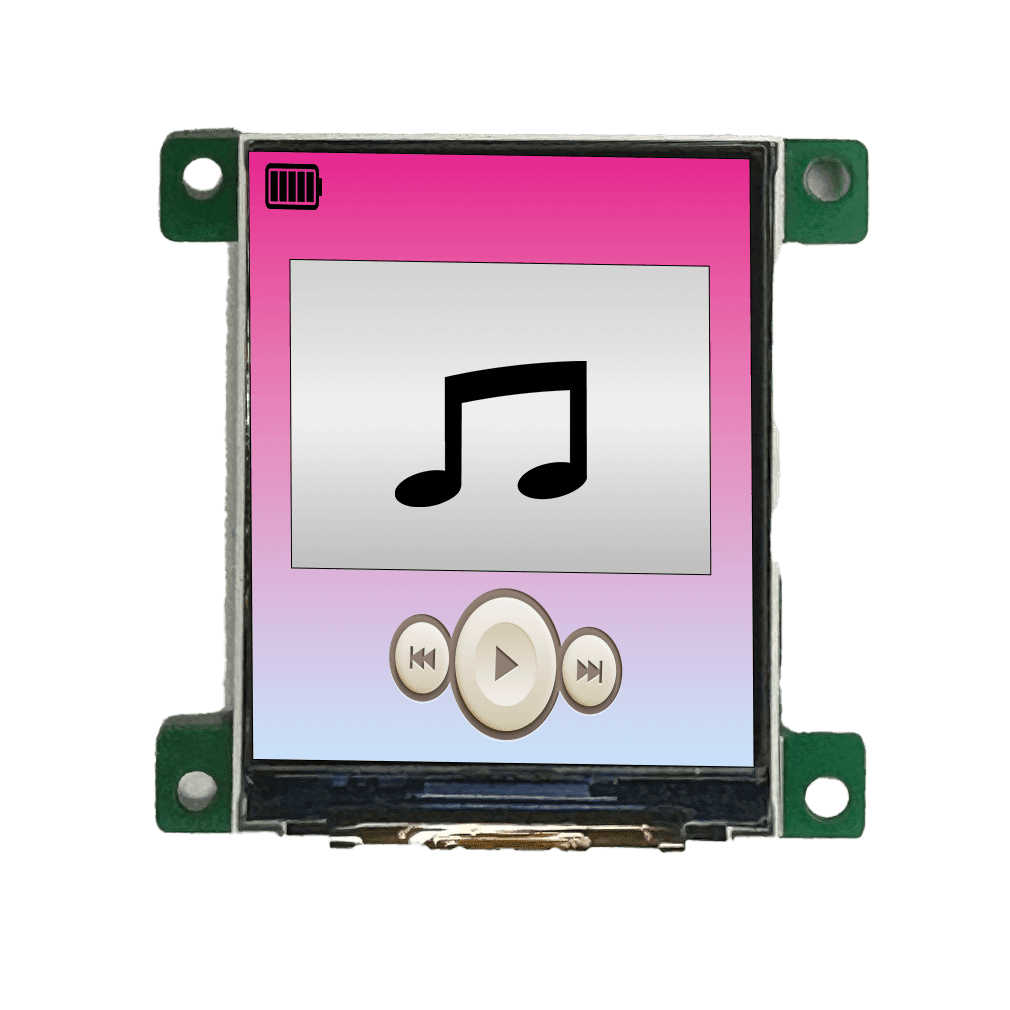

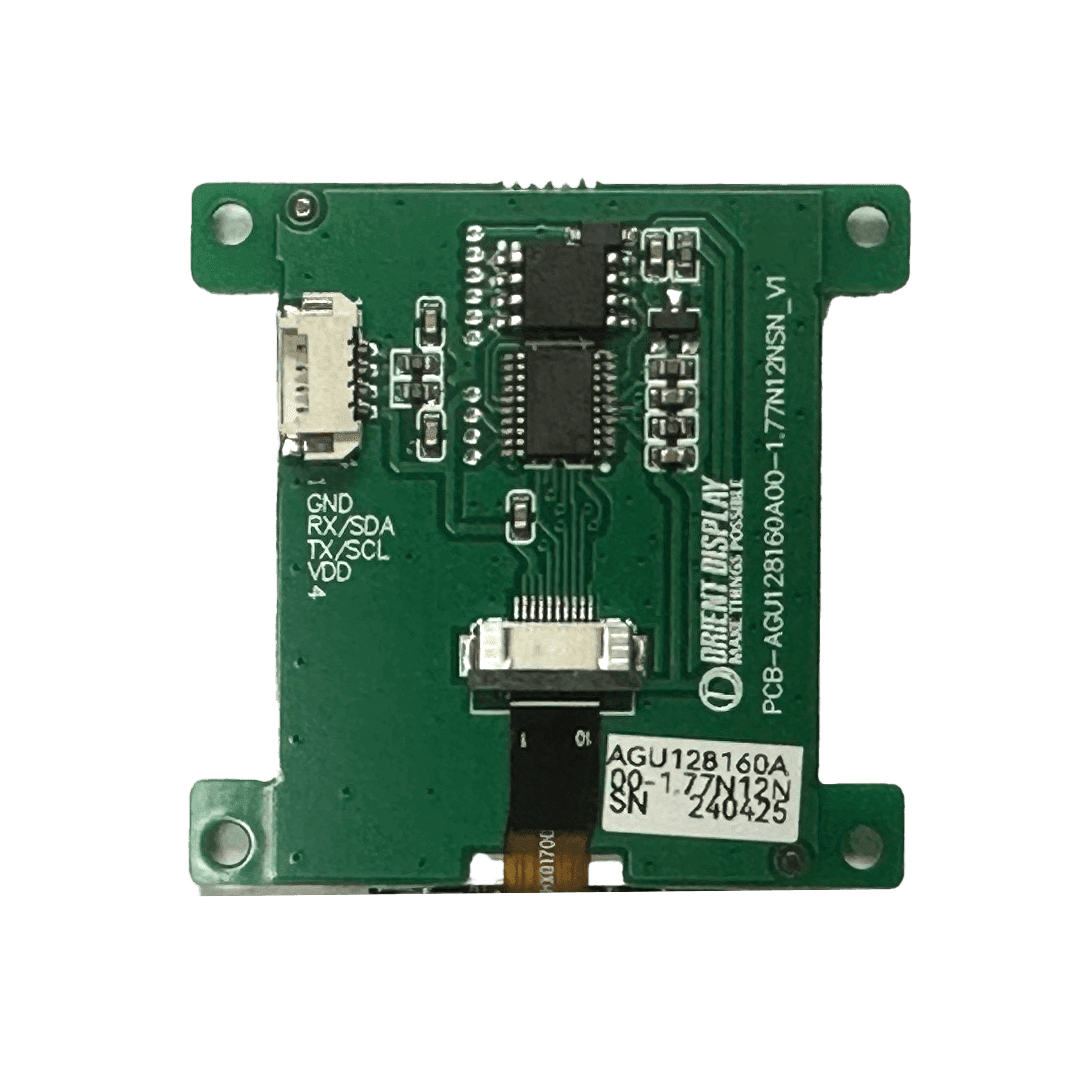

1.77″ TN TFT display with UART interface, 128×160, 280nits
$10.43CONTACT FOR VOLUME PRICING
149 in stock
Ships from SeattleKey specs
- Diagonal Dimension: 1.77Inch
- Resolution: 128x 160 pixels
- Luminance: 280cd/m2
- Viewing Direction: 12 o’clock
- Touch Panel: None
- Interface: UART
- Optional Accessary: Accessary Kit
- Download other documents for AGU series here: Supporting Documents and Software Tools
- Watch Video Tutorial on Youtube
Volume pricing
| Quantity | Unit price | Save |
|---|---|---|
| 1–24 | $10.43 | — |
| 25–49 | $10.03 | −4% |
| 50–99 | $9.63 | −8% |
| 100+ | $8.72 | −16% |
Contact us for larger volume orders and any other enquiries.
Specifications
Downloads & resources
1.77″ TN TFT Display with UART interface, 128×160, Full Color / Normal Brightness TFT Module, Transmissive.
- 1.77″ TN TFT, 128x 160with UART interface
- Full Color / Medium Brightness TFT Module
- 12 o’clock Viewing Direction
- Transmissive
- Operating Temp: -20°C to 70°C
- Storage Temp: -30°C to 80°C
- ROHS Compliant
| Model / Series Name | AGU128160A00-1.77N12NSN |
| Diagonal Dimension (inch) | 1.77 |
| Dots WxH | 128 x 160 |
| Module Size WxHxD max (mm) | 43.90* 42.94* 7.50mm (PCB) |
| Display Mode | TN TFT / Transmissive / Normal White |
| IC | GC9107+STM32G030/NP9158+W25Q32 |
| Interface Type | UART interface |
| Logic Power Supply Voltage | 3.3V |
| Backlight | White LED |
| Luminance | 280 cd/m2 |
| Touch Panel | None |
Custom Made Options
FPC or Cable Customization
Obtain a customized cable or FPC to enhance the security and efficiency of your connections, by adjusting cable length, position, pinout, or adding extra connectors.
Touch Panel with Optical Bonding
Improve your user experience by incorporating either capacitive or resistive touch screen. We will tailor the thickness, color or shape of the touch panel and cover lens to seamlessly integrate with your design with or without OCA or OCR bonding.
GUI or Interface Customization
Select the most suitable connection or GUI interface. We can integrate various interfaces such as HDMI, USB, SPI, I2C, UART, MCU, VGA, and others into your display to fulfill your design objective.
Contact Us
Additional information
| Weight | 0.015 lbs |
|---|---|
| Dimensions | 34 × 43 × 3 mm |
Reviews (0)
Shipping & Delivery
Buy it with Exclusive Accessories
Accessary Kit for AGU and AGN series
- This Accessary Kit is made exclusively for ALL our AGU and AGN series TFT product
-
This Accessary Kit includes below items:
- PCB-USBto232/485_V1: USB to UART, RS232, RS485 Testing and Burn-in Board.
- FFC-1.0-10P-TM-20CM: Flat Flex Cable(FFC): 1.0mm pitch, 10 pins, 200 mm length.
- CAB-1.25-4P-TM-20CM: Cable, 4 pins, 1.25mm pitch, 200mm length.
- CAB-HY2.0-8P-TM-20CM: Cable, 8 pins, 2.0mm pitch, 200mm length.
- CAB-MICUSB-30CM: Cable, USB-A to Micro USB, 300mm length.
