Smart TFT Displays — UART & SPI Interface

Onboard-flash smart TFT modules with a UART (U-series) or SPI (P-series) command interface and integrated font/graphics acceleration — a simpler host interface than the parallel/MCU color-TFT lines on the Color TFT hub table.

UART Smart TFT (U-Series) | SPI Smart TFT (P-Series)

UART Smart TFT (U-Series)

Onboard-flash TFT modules addressed over a UART command interface.

AGU240320A00-2.0INSM smart TFT module, U-series UART interface
Size (inch) Pixels Module Size(mm) B/L Brightness Flash Memory Model Stock
1.44 128×128 44.36×39.93×7.90 240nits 16M AGU128128A00-1.44N6NSN Buy Here
1.77 240×320 46.70×46.70×7.80 400nits 32M AGU240320A00-1.77INSM Buy Here
2.0 240×320 47.80×52.10×7.95 480nits 32M AGU240320A00-2.0INSM Buy Here
2.4 240×320 62.00×69.20×7.76 460nits 32M AGU240320A00-2.4N6NSM Buy Here
2.4 240×320 62.00×69.20×9.01 370nits 32M AGU240320A00-2.4N6NSM-R Buy Here
2.8 240×320 62.00×69.20×9.70 460nits 32M AGU240320A00-2.8N6NSM Buy Here
2.8 240×320 62.00×69.20×8.80 370nits 32M AGU240320A00-2.8N6NSM-R Buy Here

SPI Smart TFT (P-Series)

Onboard-flash TFT modules addressed over an SPI command interface.

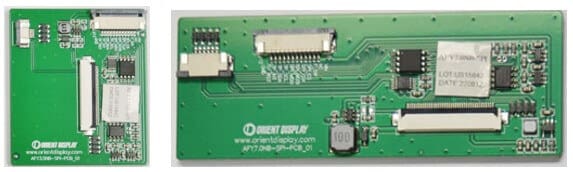

Orient Display P-series smart TFT control boards, front and back
Size (inch) Pixels Module Size(mm) B/L Brightness Flash Memory Model Stock
3.5 320×240 76.9 x 63.9 x 10.7 495nit 64 Mbit flash AFY320240B0-3.5N12NTM-SPI Buy Here
4.3 480×272 105.5 x 67.2 x 10.45 472nit 64 Mbit flash AFY480272B0-4.3N12NTM-SPI Buy Here
5.0 800×480 120.7 x 75.8 x 10.7 427nit 128 Mbit flash AFY800480B1-5.0N12NTM-SPI Buy Here
7.0 800×480 164.9 x 100.0 x 11.0 472nit 128 Mbit flash AFY800480B1-7.0N12NTM-SPI Buy Here

Need a custom configuration? Start a custom project.
