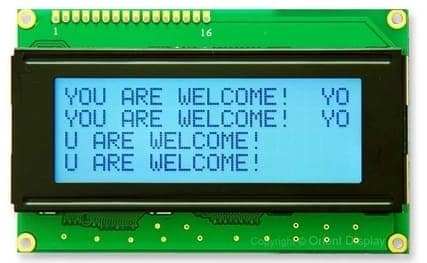

AMC2004AR-B-G6WFDW (20×4 Character LCD Module)
$13.81CONTACT FOR VOLUME PRICING
Free ground shipping on US orders over $50 (excl. AK and HI)
Out of stock · we can still source it
Key specs
- Number of Characters: 20 x 4
- LCD mode: STN Positive Gray
- Polarizer: Transflective
- Backlight: White LED
- Blue Character on Gray Background
- IC Package Type: COB
Volume pricing
| Quantity | Unit price | Save |
|---|---|---|
| 1–24 | $13.81 | — |
| 25–49 | $12.22 | −12% |
| 50+ | $10.63 | −23% |
Email when stock available
Request this part
Tell us how many you need. We reply with price and lead time, and email you when stock lands.
Request sent
Need a display built to your own spec? Start a custom project and our engineers respond within one business day.
Start a Custom ProjectSpecifications
Downloads & resources
A 20×4 dot matrix Character LCD Module display in STN Positive LCD Mode, Six O’clock viewing direction, Wide Temperature Range (Operating Temp: -20°C to 70°C, Storage Temp: -30°C to 80°C), and White LED Backlight. It has a transflective polarizer, recommended for applications that will be used both indoor and outdoor. This product is assembled Chip On Board with 1/16 Duty and a Controller. The interface type is Parallel. This is an ROHS Compliant product manufactured with ISO standards and procedures.
- STN Positive
- 6 o’clock Viewing Direction
- Operating Temp: -20°C to 70°C
- Storage Temp: -30°C to 80°C
- Transflective Polarizer
- White LED Backlight
- COB Type (Chip on Board)
- ROHS Compliant
| Model/Series Name | AMC2004A |
| Characters Displayed x Lines | 20 x 4 |
| LCD Mode | STN Positive Gray |
| Polarizer Type | Transflective |
| Module Size WxHxT max(mm) | 98.0 x 60.0 x 15.0 |
| View Area WxH (mm) | 76.0 x 25.2 |
| Character Size WxH (mm) | 2.95 x 4.75 |
| Backlight | White LED |
| Controller | S6A0069 or equivalent |
| Interface Type | Parallel |
| LCD Assembly | COB (Chip on Board) |
Additional information
| Weight | 0.78 lbs |
|---|---|
| Dimensions | 60 × 98 × 15 mm |
| Backlight color | White |
| Characters × lines | 20 x 4 |
| Display mode | STN – Positive (Gray) |
| Display type | Character LCD |
| Polarizer type | Transflective |
| Touch panel | None |
| Viewing direction | 6 o'clock |
