AMC2002CR-B-G6WFDW (20×2 Character LCD Module)
$11.47CONTACT FOR VOLUME PRICING
165 in stock
Ships from Seattle- Number of Characters: 20 x 2
- LCD mode: STN Positive Gray
- Polarizer: Transflective
- Backlight: White LED
- Blue Character on Gray Background
- IC Package Type: COB
Pricing table
| Quantity | Unit Price |
|---|---|
| 25-49 | $10.14 |
| 50-99 | $8.81 |
| 100-149 | $8.12 |
| 150-199 | $7.55 |
| 200- | $6.98 |
Contact us for larger volume orders and any other enquiries.
Description
A 20×2 Character dot matrix LCD Module display in STN Positive Gray LCD Mode, Six O’clock viewing direction, Wide Temperature Range (Operating Temp: -20°C to 70°C, Storage Temp: -30°C to 80°C), and White LED Backlight. It has a transflective polarizer suitable for indoor and outdoor usage. This product is assembled Chip On board with 1/16 Duty and a Controller IC S6A0069 or equivalent. The interface type is Parallel. This is an ROHS Compliant product manufactured with ISO standards and procedures.
20×2 character LCD display modules
The highest quality product at the lowest price.
- STN Positive Gray
- 6 o’clock Viewing Direction
- Operating Temp: -20°C to 70°C
- Storage Temp: -30°C to 80°C
- Transflective Polarizer
- White LED Backlight
- COB Type (Chip on Board)
- ROHS Compliant
Download Product References Below

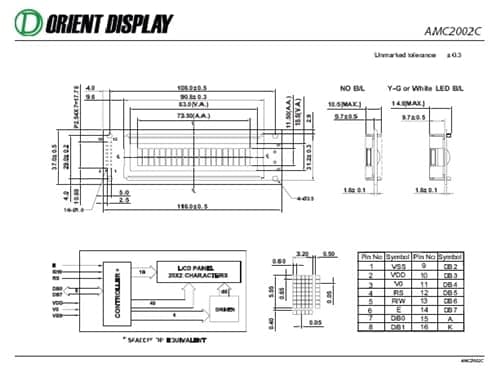

| Model/Series Name | AAMC2002CR-B-G6WFDW-STY |
| Characters Displayed x Lines | 20 x 2 |
| LCD Mode | STN Positive Gray |
| Polarizer Type | Transflective |
| Module Size WxHxT max(mm) | 116.0 x 37.0 x 14.5 |
| View Area WxH (mm) | 83.0 x 18.6 |
| Character Size WxH (mm) | 3.20 x 5.55 |
| Backlight | White LED |
| Controller | ST7066Uv22 or equivalent |
| Interface Type | Parallel |
| LCD Assembly | COB (Chip on Board) |
Please visit Orient Display to see the full range of Character LCD Modules, Graphic LCD Modules, LCD Glass Panels, and Full Colored TFT Modules that we can offer.
Please send your inquiries to info@orientdisplay.com
Additional information
| Weight | 0.57 lbs |
|---|---|
| Dimensions | 37 × 116 × 14.5 mm |
| backlightcolor | White |
| characterxlines | 20×2 |
| displaymode | STN – Positive (Gray) |
| displaytype | Character LCD |
| polarizertype | Transflective |
| touchpanel | None |
| viewingdirection | 6 o'clock |
