AMC2001AR-B-Y6WFDY (20×1 Character LCD Module)
$15.42CONTACT FOR VOLUME PRICING
2 in stock
Ships from SeattleKey specs
- Number of Characters: 20 x 1
- LCD mode: STN Positive Yellow Green
- Polarizer: Transflective
- Backlight: Yellow Green LED
- Dark Character on Yellow Green Background
- IC Package Type: COB
Volume pricing
| Quantity | Unit price | Save |
|---|---|---|
| 1–24 | $15.42 | — |
| 25–49 | $14.75 | −4% |
| 50–99 | $14.07 | −9% |
| 100–149 | $13.46 | −13% |
| 150–199 | $13.09 | −15% |
| 200+ | $12.72 | −18% |
Contact us for larger volume orders and any other enquiries.
Need a display built to your own spec? Start a custom project and our engineers respond within one business day.
Start a Custom ProjectSpecifications
Downloads & resources
A 20×1 Character dot matrix LCD Module display in STN Positive Yellow Green LCD Mode, Six O’clock viewing direction, Wide Temperature Range (Operating Temp: -20°C to 70°C, Storage Temp: -30°C to 80°C), and Yellow Green LED Backlight. It has a transflective polarizer, recommended for applications that will be used both indoor and outdoor. This product is assembled Chip On board with 1/16 Duty and a Controller IC AiP31066L or equivalent. The interface type is Parallel. This is an ROHS Compliant product manufactured with ISO standards and procedures.
- STN Positive Yellow Green
- 6 o’clock Viewing Direction
- Operating Temp: -20°C to 70°C
- Storage Temp: -30°C to 80°C
- Transflective Polarizer
- Yellow Green LED Backlight

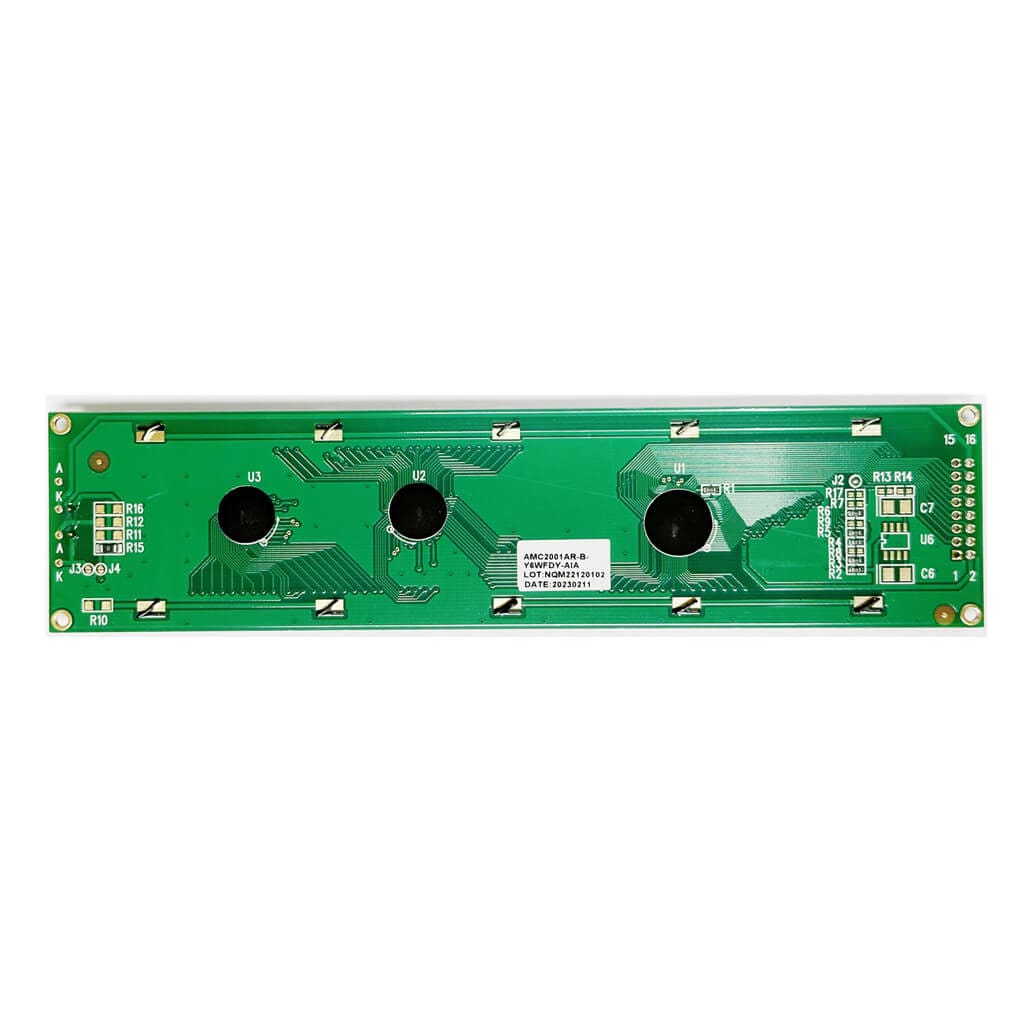

- COB Type (Chip on Board)
- ROHS Compliant
| Model/Series Name | AMC2001AR-B-Y6WFDY-AIA |
| Characters Displayed x Lines | 20 x 1 |
| LCD Mode | STN Positive Yellow Green |
| Polarizer Type | Transflective |
| Module Size WxHxT max(mm) | 182.0 x 43.5 x 14.0 |
| View Area WxH (mm) | 147.0 x 18.7 |
| Character Size WxH (mm) | 5.90 x 12.70 |
| Backlight | Yellow Green LED |
| Controller | AiP31066L or equivalent |
| Interface Type | Parallel |
| LCD Assembly | COB (Chip on Board) |
Additional information
| Weight | 0.57 lbs |
|---|---|
| Dimensions | 43.5 × 182 × 14 mm |
| Backlight color | Yellow-Green |
| Characters × lines | 20 x 1 |
| Display mode | STN – Positive (Yellow Green) |
| Display type | Character LCD |
| Polarizer type | Transflective |
| Touch panel | None |
| Viewing direction | 6 o'clock |
