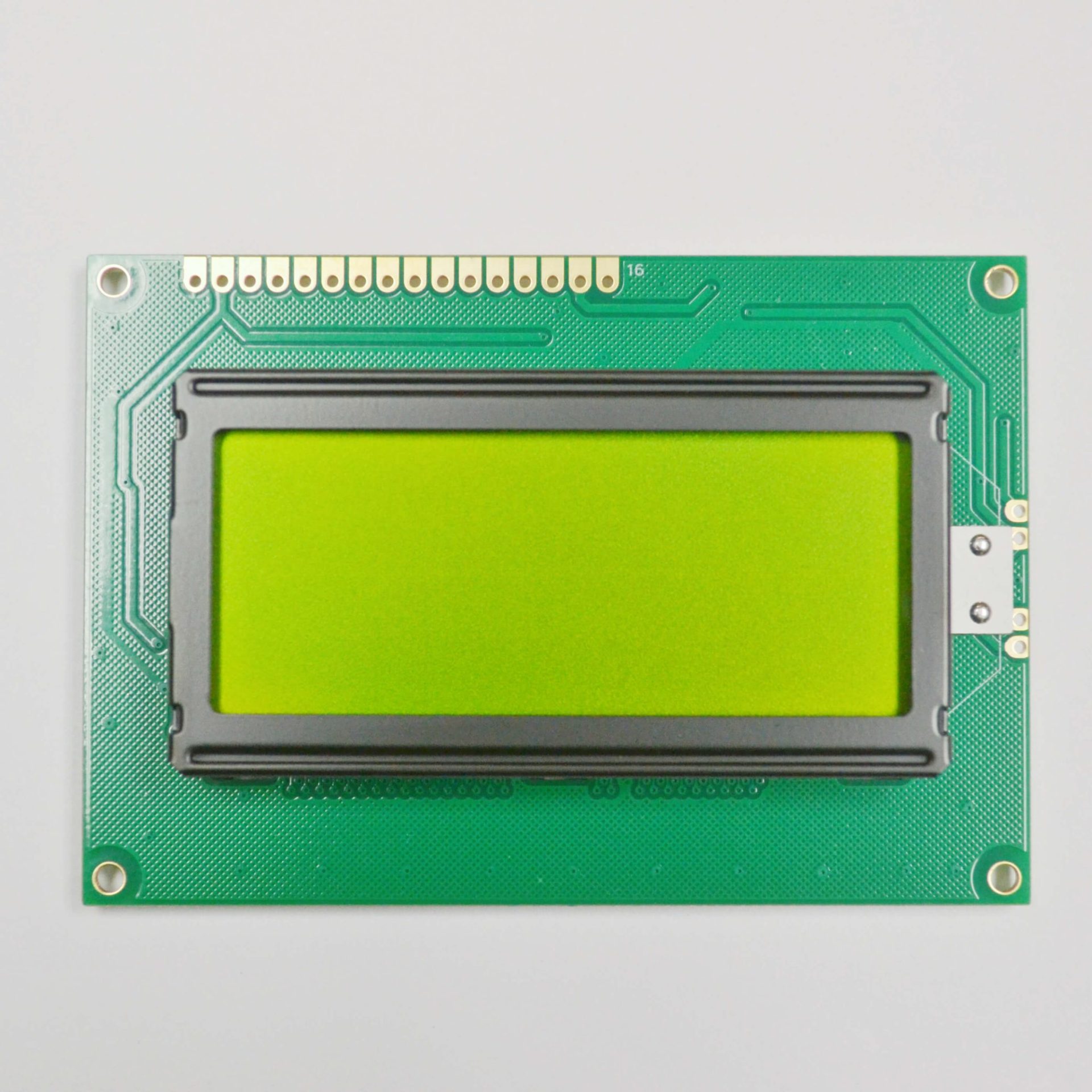

AMC1604CR-B-Y6WFDY-AIA (16×4 Character LCD Module)
$10.22CONTACT FOR VOLUME PRICING
43 in stock
Ships from SeattleKey specs
- Number of Characters: 16 x 4
- LCD mode: STN Positive Yellow Green
- Polarizer: Transmissive
- Backlight: Yellow Green LED
- Dark Character on Yellow Green Background
- IC Package Type: COB
Volume pricing
| Quantity | Unit price | Save |
|---|---|---|
| 1–24 | $10.22 | — |
| 25–49 | $9.06 | −11% |
| 50–99 | $7.90 | −23% |
| 100–149 | $7.30 | −29% |
| 150–199 | $6.81 | −33% |
| 200+ | $6.31 | −38% |
Contact us for larger volume orders and any other enquiries.
Need a display built to your own spec? Start a custom project and our engineers respond within one business day.
Start a Custom ProjectSpecifications
Downloads & resources
A 16×4 dot matrix Character LCD Module display in STN Positive Yellow Green LCD Mode, Six O’clock viewing direction, Wide Temperature Range (Operating Temp: -20°C to 70°C, Storage Temp: -30°C to 80°C), and Yellow Green LED Backlight. It has a transflective polarizer, recommended for applications that will be used both indoor and outdoor. This product is assembled Chip On board with 1/16 Duty and a Controller IC AIP31066L-001 or equivalent. The interface type is Parallel. This is an ROHS Compliant product manufactured with ISO standards and procedures.
- STN Positive Yellow Green
- 6 o’clock Viewing Direction
- Operating Temp: -20°C to 70°C
- Storage Temp: -30°C to 80°C
- Transflective Polarizer
- Yellow Green LED Backlight

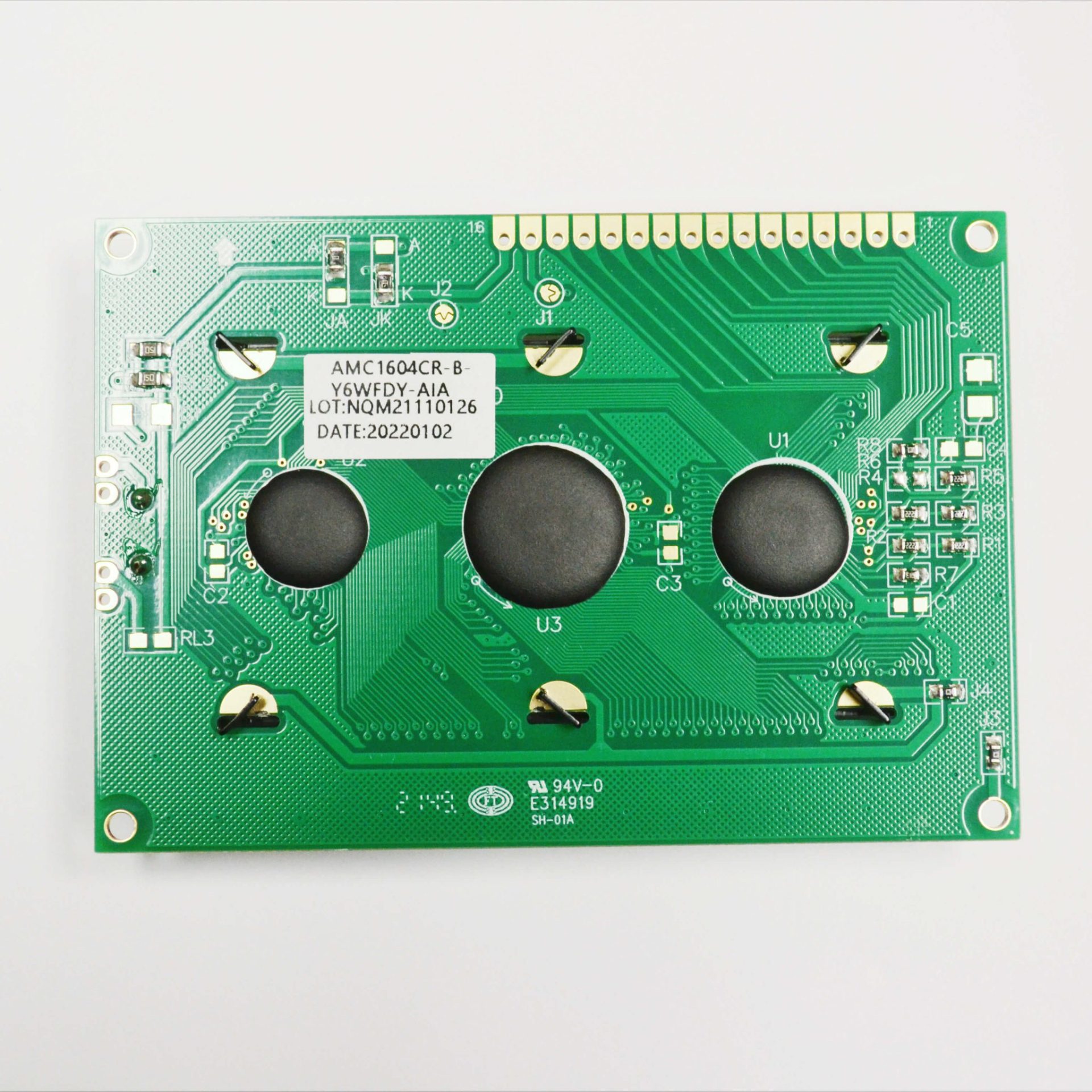

- COB Type (Chip on Board)
- ROHS Compliant
| Model/Series Name | AMC1604CR-B-Y6WFDY-AIA |
| Characters Displayed x Lines | 16 x 4 |
| LCD Mode | STN Positive Yellow Green |
| Polarizer Type | Transmissive |
| Module Size WxHxT max(mm) | 87.0 x 60.0 x 14.5 |
| View Area WxH (mm) | 61.8 x 25.2 |
| Character Size WxH (mm) | 2.96 x 4.76 |
| Backlight | Yellow Green LED |
| Controller | AiP31066LÂ or equivalent |
| Interface Type | Parallel |
| LCD Assembly | COB (Chip on Board) |
Additional information
| Weight | 0.54 lbs |
|---|---|
| Dimensions | 60 × 87 × 14.5 mm |
| Backlight color | Yellow-Green |
| Characters × lines | 16 x 4 |
| Display mode | STN – Positive (Yellow Green) |
| Display type | Character LCD |
| Polarizer type | Transmissive |
| Touch panel | None |
| Viewing direction | 6 o'clock |
