AMC1601AR-B-Y6WFDY-STY
AMC1601AR-B-Y6WFDY-STY (16×1 Character LCD Module)
$6.03CONTACT FOR VOLUME PRICING
216 in stock
Ships from SeattleNo MOQ on standard partsFree shipping over $5024-hour sample shipping from US stock
Key specs
- Number of Characters: 16 x 1
- LCD mode: STN Positive
- Polarizer: Transflective
- Backlight: Yellow Green LED
- Dark Character on Yellow Green Background
- IC Package Type: COB
Volume pricing
| Quantity | Unit price | Save |
|---|---|---|
| 1–99 | $6.03 | — |
| 100+ | $5.42 | −10% |
Contact us for larger volume orders and any other enquiries.
Need a display built to your own spec? Start a custom project and our engineers respond within one business day.
Start a Custom ProjectSpecifications
Downloads & resources
A 16×1 dot matrix Character LCD Module display in STN Positive LCD Mode, Six O’clock viewing direction, Wide Temperature Range (Operating Temp: -20°C to 70°C, Storage Temp: -30°C to 80°C), and Yellow Green LED Backlight. It has a transflective polarizer, recommended for applications that will be used both indoor and outdoor. This product is assembled Chip On Board with 1/16 Duty and a Controller. The interface type is Parallel. This is an ROHS Compliant product manufactured with ISO standards and procedures.
- STN Positive
- 6 o’clock Viewing Direction
- Operating Temp: -20°C to 70°C
- Storage Temp: -30°C to 80°C
- Transflective Polarizer
- Yellow Green LED Backlight

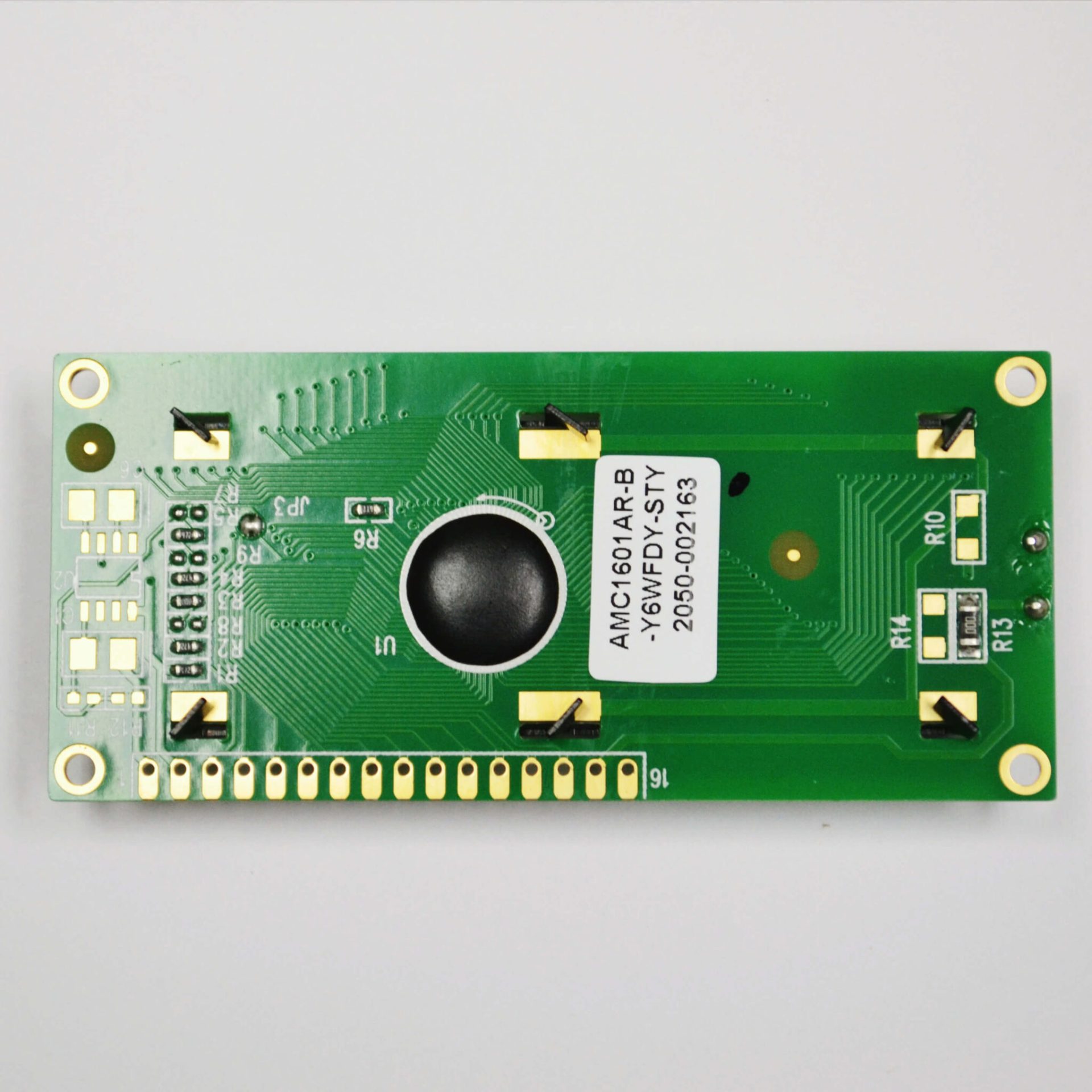

- COB Type (Chip on Board)
- ROHS Compliant
| Model/Series Name | AMC1601AR-B-Y6WFDY |
| Characters Displayed x Lines | 16 x 1 |
| LCD Mode | STN Positive |
| Polarizer Type | Transflective |
| Module Size WxHxT max(mm) | 80.0 x 36.0 x 14.0（MAX) |
| View Area WxH (mm) | 64.5 x 13.8 |
| Character Size WxH (mm) | 3.07 x 6.56 |
| Backlight | Yellow Green LED |
| Controller | ST7066Uv22 or equivalent |
| Interface Type | Parallel |
| LCD Assembly | COB (Chip on Board) |
Check out our Character LCD Module Evaluation Kit
Additional information
| Weight | 0.08 lbs |
|---|---|
| Dimensions | 80 × 36 × 13 mm |
| Backlight color | Yellow-Green |
| Characters × lines | 16×1 |
| Display mode | STN – Positive (Gray) |
| Display type | Character LCD |
| Polarizer type | Transflective |
| Touch panel | None |
| Viewing direction | 6 o'clock |
