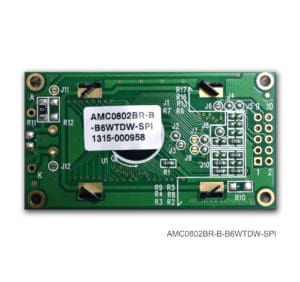

AMC0802BR-B-B6WTDW-SPI (8×2 Character LCD Module – SPI Interface)
$6.56CONTACT FOR VOLUME PRICING
204 in stock
Ships from SeattleKey specs
- Number of Characters: 8 x 2
- LCD mode: STN Negative Blue
- Polarizer: Transmissive
- Backlight: White LED
- White Character on Blue Background
- IC Package Type: COB
Volume pricing
| Quantity | Unit price | Save |
|---|---|---|
| 1–24 | $6.56 | — |
| 25–49 | $5.85 | −11% |
| 50–99 | $5.13 | −22% |
| 100–149 | $4.76 | −27% |
| 150–199 | $4.45 | −32% |
| 200+ | $4.14 | −37% |
Contact us for larger volume orders and any other enquiries.
Need a display built to your own spec? Start a custom project and our engineers respond within one business day.
Start a Custom ProjectSpecifications
Downloads & resources
An 8×2 dot matrix Character LCD Module display(AMC0802BR-B-B6WTDW-SPI) in STN Negative Blue LCD Mode, Six O’clock viewing direction, Wide Temperature Range (Operating Temp: -20°C to 70°C, Storage Temp: -30°C to 80°C), and White LED Backlight. It has a transmissive polarizer suitable for darker environment. This product is assembled Chip On board with 1/16 Duty and a Controller IC AC780S or equivalent. The interface type is Serial with SPI compatibility. This is an ROHS Compliant product manufactured with ISO standards and procedures.
- STN Negative Blue
- 6 o’clock Viewing Direction
- Operating Temp: -20°C to 70°C
- Storage Temp: -30°C to 80°C
- Transmissive Polarizer
- White LED Backlight
- COB Type (Chip on Board)
- SPI Interface
- ROHS Compliant
| Model/Series Name | AMC0802BR-B-B6WTDW-SPI |
| Characters Displayed x Lines | 8 x 2 |
| LCD Mode | STN Negative Blue |
| Polarizer | Transmissive |
| Module Size WxHxT max(mm) | 58.0 x 32.0 x 14.0 |
| View Area WxH (mm) | 38.0 x 16.0 |
| Character Size WxH (mm) | 2.96 x 5.56 |
| Backlight | White LED |
| Controller | AC780S or equivalent |
| Interface Type | SPI |
| LCD Assembly | COB (Chip on Board) |
Additional information
| Weight | 0.27 lbs |
|---|---|
| Dimensions | 32 × 58 × 14 mm |
| Backlight color | White |
| Characters × lines | 8×2 |
| Display mode | STN – Negative (Blue) |
| Display type | Character LCD |
| Polarizer type | Transmissive |
| Touch panel | None |
| Viewing direction | 6 o'clock |
