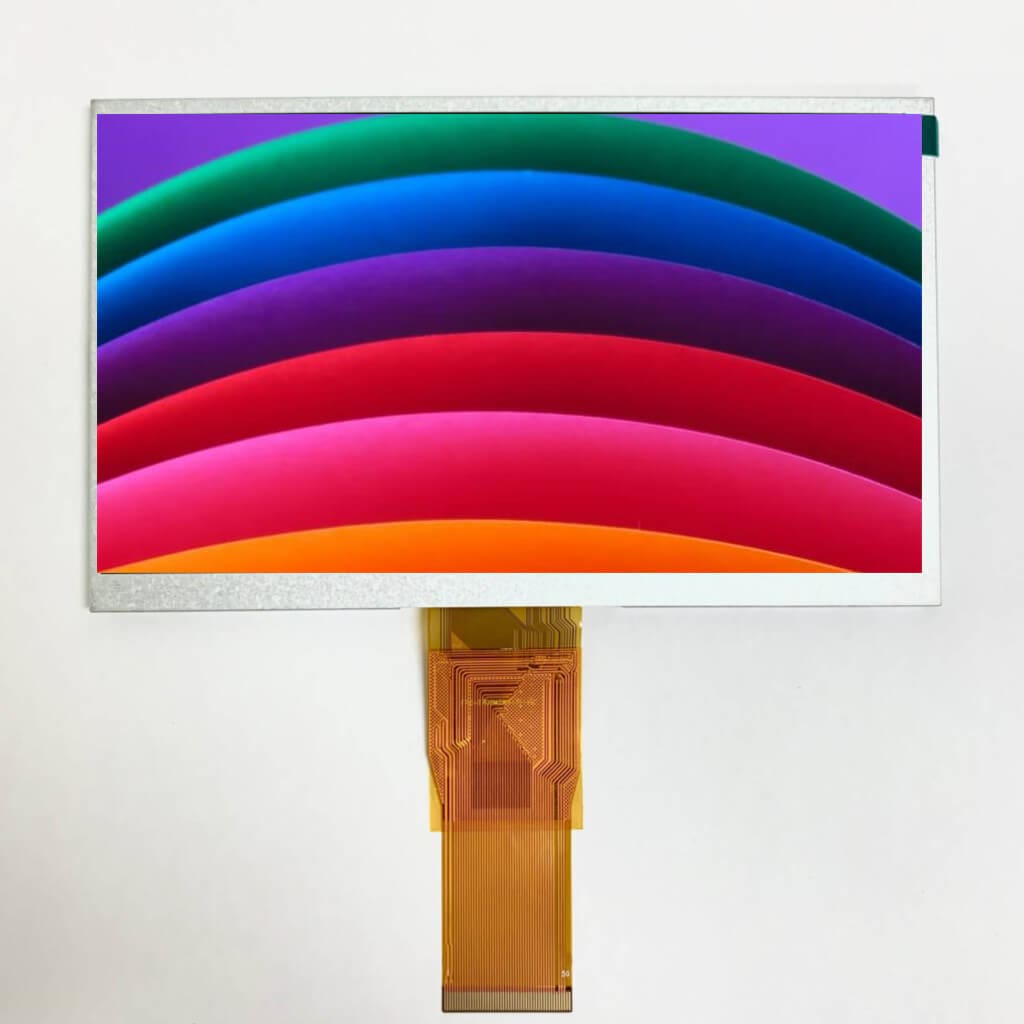

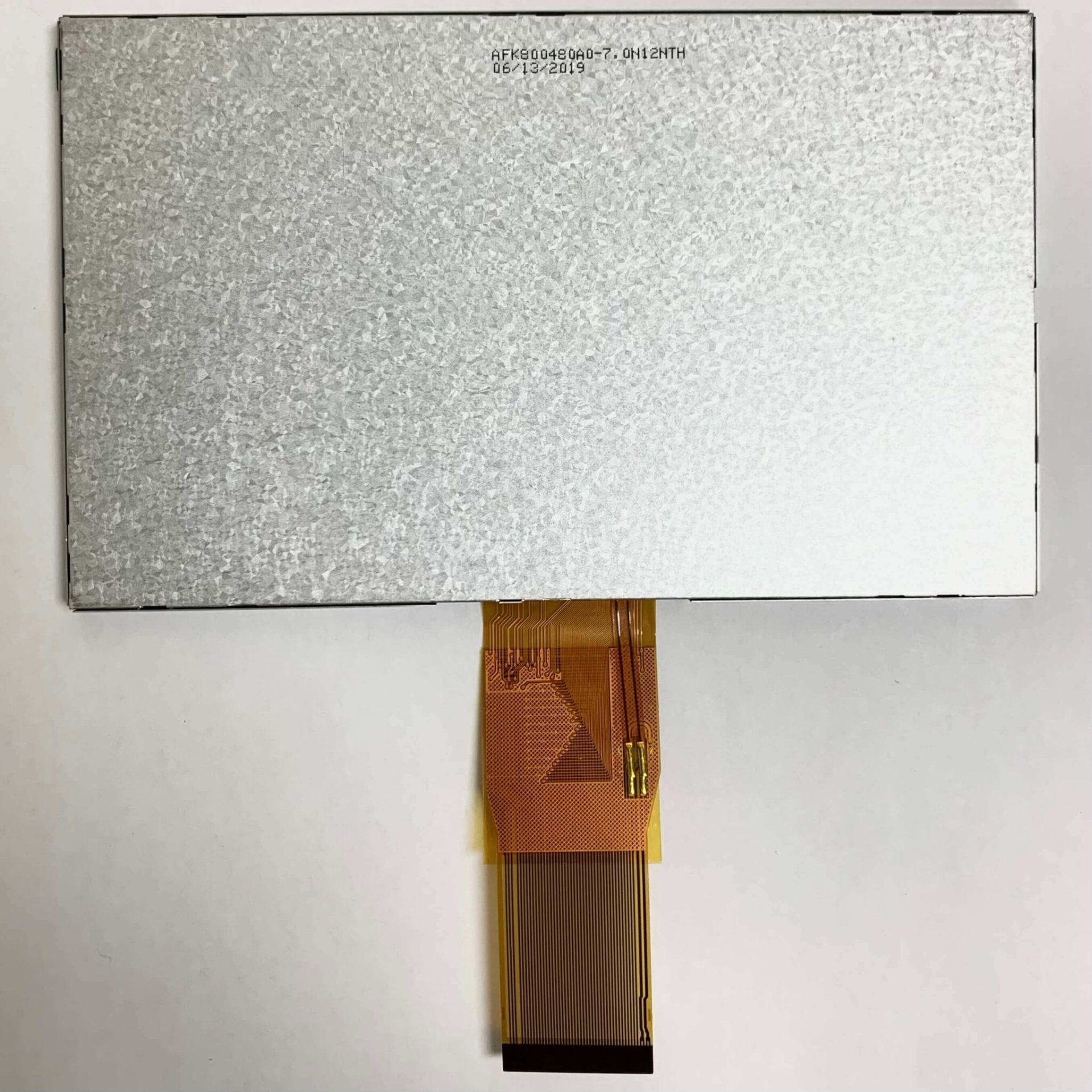

7.0″ TFT, 800×480, High Brightness 1000 Nits
$38.00CONTACT FOR VOLUME PRICING
29 in stock
Ships from SeattleKey specs
- Diagonal Dimension: 7 Inch
- Resolution: 800 x 480 pixels
- Interface: 24BIT RGB
- Luminance: 1000 cd/m2
- Viewing Direction: 12 o’clock
- Touch Panel: None
Volume pricing
| Quantity | Unit price | Save |
|---|---|---|
| 1–24 | $38.00 | — |
| 25–49 | $36.67 | −3% |
| 50+ | $35.34 | −7% |
Contact us for larger volume orders and any other enquiries.
Specifications
A simple 7.0″ TFT Display 800×480 Full Color / High Brightness TFT Module, Transmissive/ Normal White.
- 7.0″ TFT, 800 x (RGB) x 480
- Full Color / High Brightness TFT Module
- 12 o’clock Viewing Direction
- Transmissive / Normal White
- Operating Temp: -20°C to 70°C
- Storage Temp: -30°C to 80°C
- ROHS Compliant
| Model / Series Name | AFK800480A0-7.0N12NTH |
| Diagonal Dimension (inch) | 7.0 |
| Dots WxH | 800 x 480 |
| Module Size WxHxD max (mm) | 164.8 x 99.8 x 5.5 |
| Display Mode | 1670K TFT / Transmissive / Normal White |
| IC | EK9713 and EK73002 |
| Interface Type | 24-BIT RGB |
| Logic Power Supply Voltage | 3.3V |
| Backlight | 24 Chip White LED |
| Luminance | 1000 cd/m2 |
| Touch Panel | None |
Custom Made Options
FPC or Cable Customization
Obtain a customized cable or FPC to enhance the security and efficiency of your connections, by adjusting cable length, position, pinout, or adding extra connectors.
Touch Panel with Optical Bonding
Improve your user experience by incorporating either capacitive or resistive touch screen. We will tailor the thickness, color or shape of the touch panel and cover lens to seamlessly integrate with your design with or without OCA or OCR bonding.
GUI or Interface Customization
Select the most suitable connection or GUI interface. We can integrate various interfaces such as HDMI, USB, SPI, I2C, UART, MCU, VGA, and others into your display to fulfill your design objective.
Contact Us
Additional information
| Weight | 2.04 lbs |
|---|---|
| Dimensions | 99.8 × 164.80 × 7.10 mm |
| Backlight color | White |
| Diagonal size | 7.0 |
| Display type | TFT – TN |
| Polarizer type | Transmissive |
| Resolution | 800×480 |
| Touch panel | None |
| Viewing direction | 12 o'clock |
| Interface | RGB |
