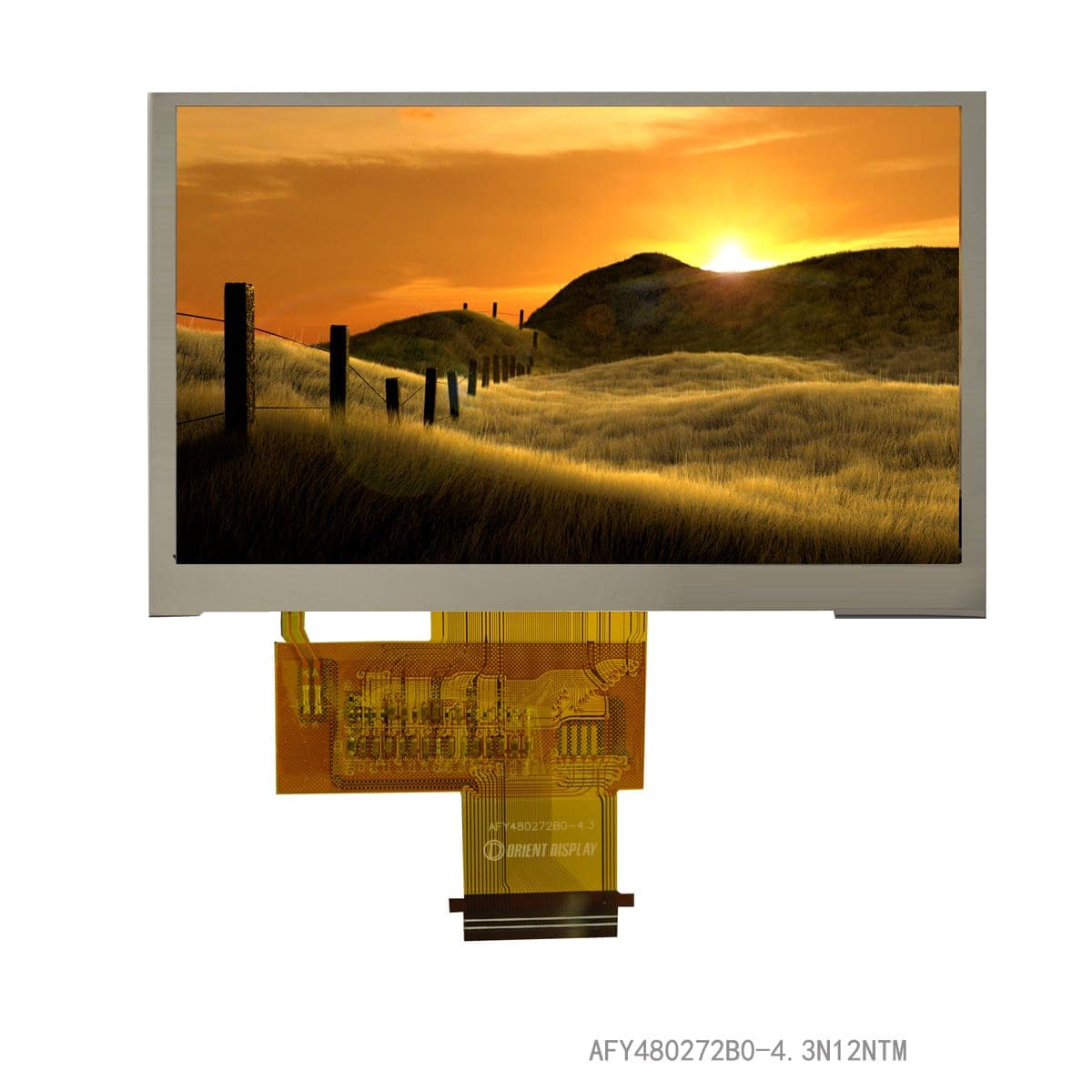

4.3″ TN TFT, 480×272, 520Nits, 12 o’clock Viewing Angle
$23.81CONTACT FOR VOLUME PRICING
Out of stock · we can still source it
Key specs
- Diagonal Dimension: 4.3 Inch
- Resolution: 480 x 272 pixels
- Interface: RGB
- Luminance: 520 cd/m2
- Viewing Direction: 12 o’clock
- Touch Panel: None
Volume pricing on quote. Tell us the quantity and we reply with a price.
Email when stock available
Specifications
A simple 4.3″ Full Color / Medium Brightness TFT Module, Transmissive/ Normal White with 480 x (RGB) x 272 dots.
- 4.3″ TFT, 480 x (RGB) x 272
- Full Color / Medium Brightness TFT Module
- Transmissive / Normal White
- 12 o’clock Viewing Direction
- Operating Temp: -20°C to 70°C
- Storage Temp: -30°C to 80°C
- ROHS Compliant
| Model / Series Name | AFY480272B0-4.3N12NTM |
| Diagonal Dimension (inch) | 4.3 |
| Dots WxH | 480 x 272 |
| Module Size WxHxD max (mm) | 105.40 x 67.10 x 2.95 |
| Display Mode | 1670K TFT / Transmissive / Normal White |
| IC | ILI6480BQ |
| Interface Type | RGB |
| Logic Power Supply Voltage | 3.3V |
| Backlight | LED/White/Edge |
| Luminance | 520 cd/m2 |
| Touch Panel | None |
Custom Made Options
FPC or Cable Customization
Obtain a customized cable or FPC to enhance the security and efficiency of your connections, by adjusting cable length, position, pinout, or adding extra connectors.
Touch Panel with Optical Bonding
Improve your user experience by incorporating either capacitive or resistive touch screen. We will tailor the thickness, color or shape of the touch panel and cover lens to seamlessly integrate with your design with or without OCA or OCR bonding.
GUI or Interface Customization
Select the most suitable connection or GUI interface. We can integrate various interfaces such as HDMI, USB, SPI, I2C, UART, MCU, VGA, and others into your display to fulfill your design objective.
Contact Us
Additional information
| Weight | 0.57 lbs |
|---|---|
| Dimensions | 67.10 × 105.40 × 4.15 mm |
| Backlight color | White |
| Diagonal size | 4.3 |
| Display type | TFT – TN |
| Polarizer type | Transmissive |
| Resolution | 480×272 |
| Touch panel | None |
| Viewing direction | 12 o'clock |
| Interface | RGB |
