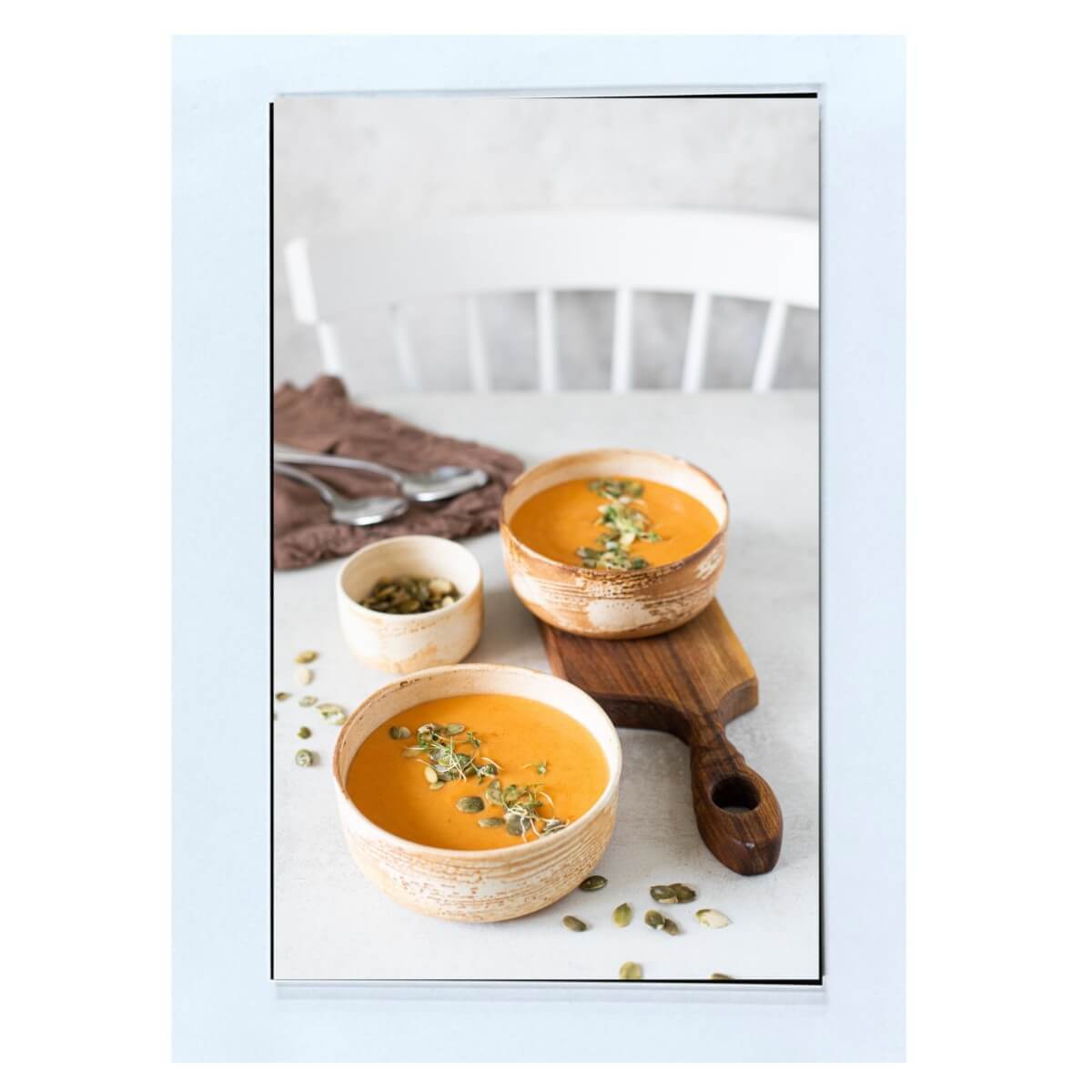

10.1″ IPS TFT with Capacitive Touch Panel, 800×1280, All Viewing Angle, Medium Brightness, MIPI Interface
$86.66CONTACT FOR VOLUME PRICING
Free ground shipping on US orders over $50 (excl. AK and HI)
Out of stock · we can still source it
Key specs
- Diagonal Dimension: 10.1 Inch
- Resolution: 800 x 1280 pixels
- Interface: MIPI
- Luminance: 400 cd/m2
- Viewing Direction: ALL
- Touch Panel: Capacitive
Email when stock available
Request this part
Tell us how many you need. We reply with price and lead time, and email you when stock lands.
Request sent
Specifications
Downloads & resources
A simple 10.1″ IPS TFT Display 800×1280 Full Color / Medium Brightness TFT Module, Transmissive/ Normal Black / IPS All Viewing Angle.
- 10.1″ TFT, 800 x (RGB) x 1280
- Full Color / Medium Brightness TFT Module
- ALL Viewing Direction
- Transmissive / Normal Black
- Operating Temp: -20°C to 70°C
- Storage Temp: -30°C to 80°C
- ROHS Compliant
| Model / Series Name | AFC8001280A1-10.1INTM-I-C |
| Diagonal Dimension (inch) | 10.1 |
| Dots WxH | 800 x 1280 |
| Module Size WxHxD max (mm) | 145.5 * 231.0 * 4.86mm |
| Display Mode | IPS TFT / Transmissive / Normal Black |
| IC | ILI9881C |
| Interface Type | MIPI |
| Logic Power Supply Voltage | 3.3V |
| Backlight | White LED |
| Luminance | 400 cd/m2 |
| Touch Panel | None |
Custom Made Options
FPC or Cable Customization
Obtain a customized cable or FPC to enhance the security and efficiency of your connections, by adjusting cable length, position, pinout, or adding extra connectors.
Touch Panel with Optical Bonding
Improve your user experience by incorporating either capacitive or resistive touch screen. We will tailor the thickness, color or shape of the touch panel and cover lens to seamlessly integrate with your design with or without OCA or OCR bonding.
GUI or Interface Customization
Select the most suitable connection or GUI interface. We can integrate various interfaces such as HDMI, USB, SPI, I2C, UART, MCU, VGA, and others into your display to fulfill your design objective.
Contact Us
Additional information
| Weight | 0.47 lbs |
|---|---|
| Dimensions | 228 × 143 × 3 mm |
| Backlight color | White |
| Diagonal size | 10.1 |
| Display type | TFT – IPS |
| Polarizer type | Transmissive |
| Resolution | 800×1280 |
| Touch panel | Capacitive Touch Panel |
| Viewing direction | All |
| Interface | MIPI |
