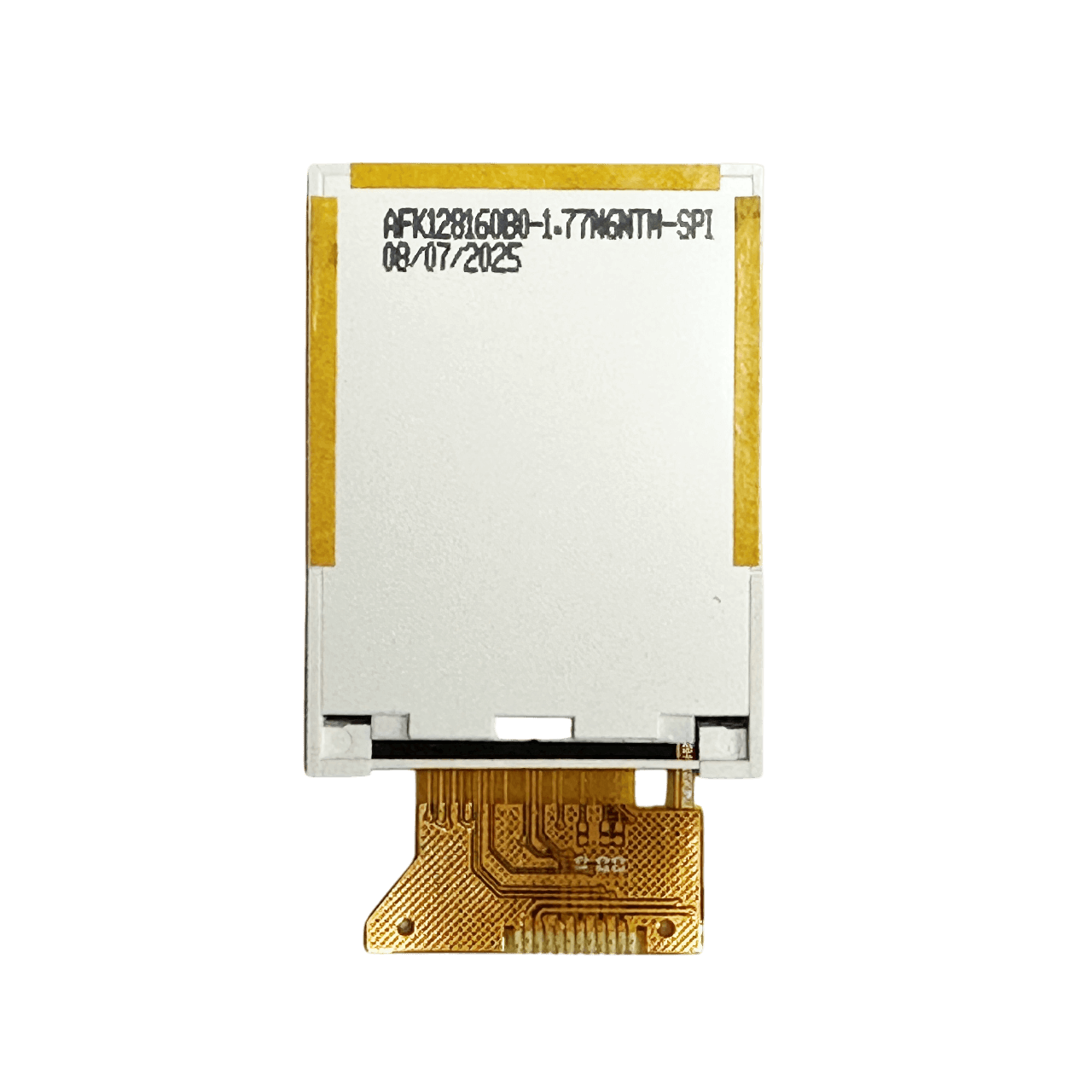

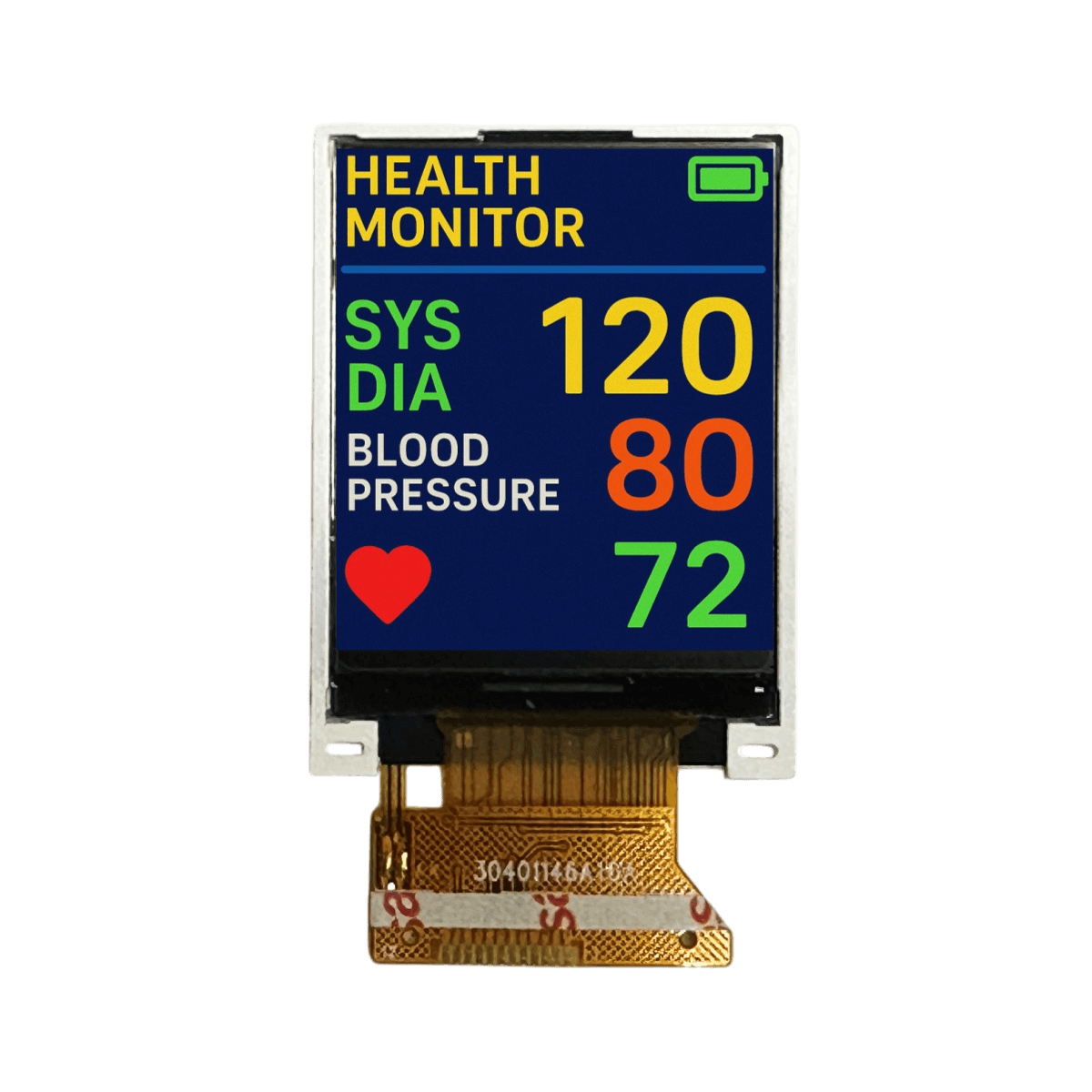

1.77″ TN display, 128×160, 320 Nits, SPI Interface
$5.59CONTACT FOR VOLUME PRICING
300 in stock
Ships from SeattleKey specs
- Medium Brightness / TN display
- Diagonal Dimension: 1.77 Inch
- Resolution: 128 x 160 pixels
- Interface: SPI
- Luminance: 320 cd/m2
- Viewing Direction: 6 o’clock
- Touch Panel: None
Volume pricing
| Quantity | Unit price | Save |
|---|---|---|
| 1–24 | $5.59 | — |
| 25–49 | $4.93 | −12% |
| 50+ | $4.26 | −24% |
Contact us for larger volume orders and any other enquiries.
Specifications
A simple 1.77″ Medium Brightness / TN Module, Transmissive / 6 o’clock Viewing Direction / Normal White with 128 x 160 dots.
-
- 1.77″ TN, 128 x 160
- Medium Brightness / TN
- Transmissive / Normal White
- 6 o’clock Viewing Direction
- Operating Temp: -20°C to 70°C
- Storage Temp: -30°C to 80°C
- ROHS Compliant
| Model / Series Name | AFK128160B0-1.77N6NTM-SPI |
| Diagonal Dimension (Inches) | 1.77 |
| Dots WxH | 128 x 160 |
| Module Size WxHxD max (mm) | 34.70 x 46.70 x 2.50 |
| Display Mode | TN / Normal White / Transmissive |
| IC | ST7735S |
| Interface Type | SPI Interface |
| Logic Power Supply Voltage | 3.3 |
| Backlight | 2-LED, WHITE, If=40mA |
| Luminance | 320 cd/m2 |
| Touch Panel | None |
Custom Made Options
FPC or Cable Customization
Obtain a customized cable or FPC to enhance the security and efficiency of your connections, by adjusting cable length, position, pinout, or adding extra connectors.
Touch Panel with Optical Bonding
Improve your user experience by incorporating either capacitive or resistive touch screen. We will tailor the thickness, color or shape of the touch panel and cover lens to seamlessly integrate with your design with or without OCA or OCR bonding.
GUI or Interface Customization
Select the most suitable connection or GUI interface. We can integrate various interfaces such as HDMI, USB, SPI, I2C, UART, MCU, VGA, and others into your display to fulfill your design objective.
