1.3″ IPS display, 240×240, 470 Nits, MCU/SPI/RGB Interface
$9.85CONTACT FOR VOLUME PRICING
121 in stock
Ships from Seattle- Model / Series Name: AFR240240A1-1.3INTM
- Diagonal Dimension (Inches): 1.3
- Dots WxH: 240 x 240
- Module Size WxHxD max (mm): 26.16 x 29.22 x 1.39
- Display Mode: IPS / Normal black / Transmissive
Pricing table
| Quantity | Unit Price |
|---|---|
| 25-49 | $8.71 |
| 50- | $7.56 |
Contact us for larger volume orders and any other enquiries.
Description

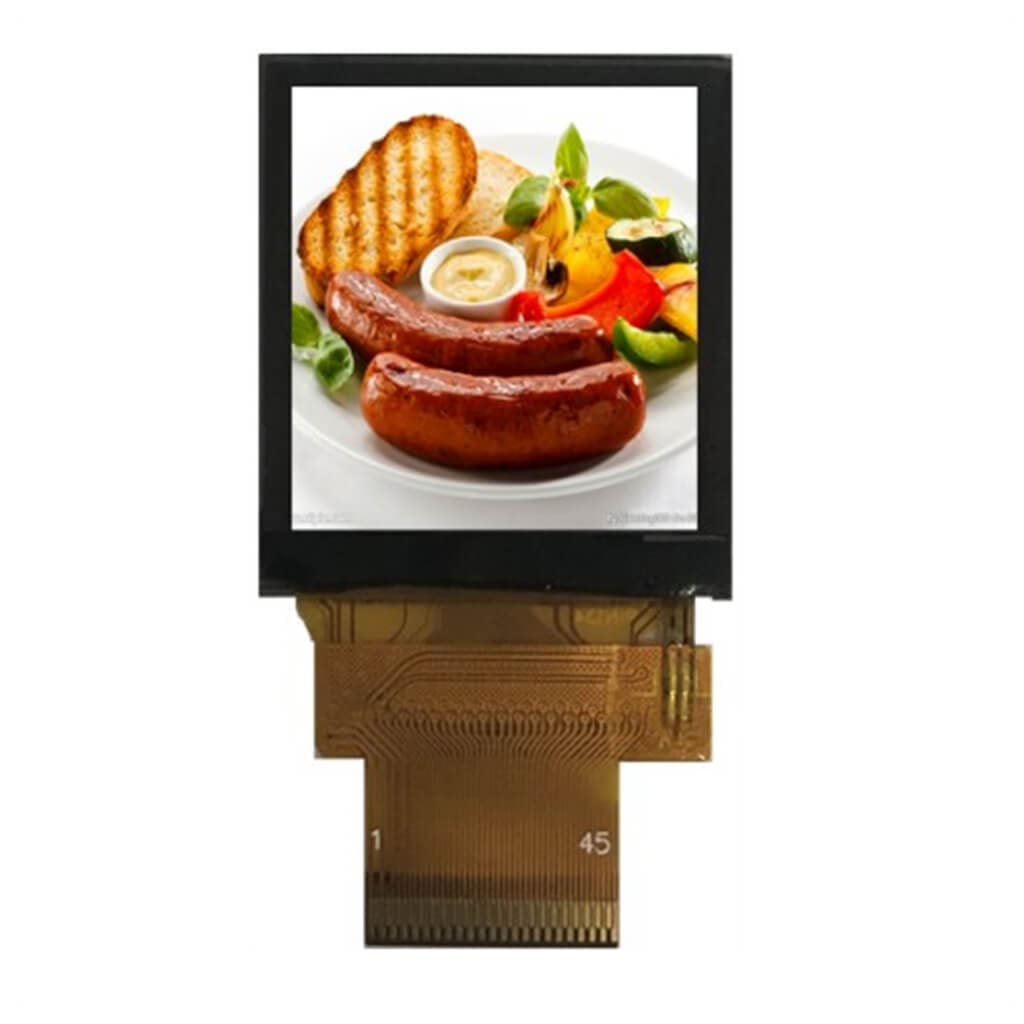

A simple 1.3″ Medium Brightness / IPS Module, Transmissive / All Viewing Direction / Normal Black with 240 x 240 dots.
- 1.3″ IPS, 240 x 240
- Medium Brightness / IPS
- Transmissive / Normal Black
- ALL Viewing Direction
- Operating Temp: -20°C to 70°C
- Storage Temp: -30°C to 80°C
- ROHS Compliant
These are just few of our famous TFT modules; we still have a lot of TFT products to offer.
If none of these part numbers meet your requirements in terms of brightness, interface, or connection method, please email us at info@orientdisplay.com.
| Model / Series Name | AFR240240A1-1.3INTM |
| Diagonal Dimension (Inches) | 1.3 |
| Dots WxH | 240 x 240 |
| Module Size WxHxD max (mm) | 26.16 x 29.22 x 1.39 |
| Display Mode | IPS / Normal black / Transmissive |
| IC | ST7789V |
| Interface Type | MCU/SPI/RGB Interface |
| Logic Power Supply Voltage | 3.3 |
| Backlight | 2 LED, WHITE, If=40mA |
| Luminance | 470 cd/m2 |
| Touch Panel | None |
Custom Made Options
FPC or Cable Customization
Obtain a customized cable or FPC to enhance the security and efficiency of your connections, by adjusting cable length, position, pinout, or adding extra connectors.
Touch Panel with Optical Bonding
Improve your user experience by incorporating either capacitive or resistive touch screen. We will tailor the thickness, color or shape of the touch panel and cover lens to seamlessly integrate with your design with or without OCA or OCR bonding.
GUI or Interface Customization
Select the most suitable connection or GUI interface. We can integrate various interfaces such as HDMI, USB, SPI, I2C, UART, MCU, VGA, and others into your display to fulfill your design objective.
