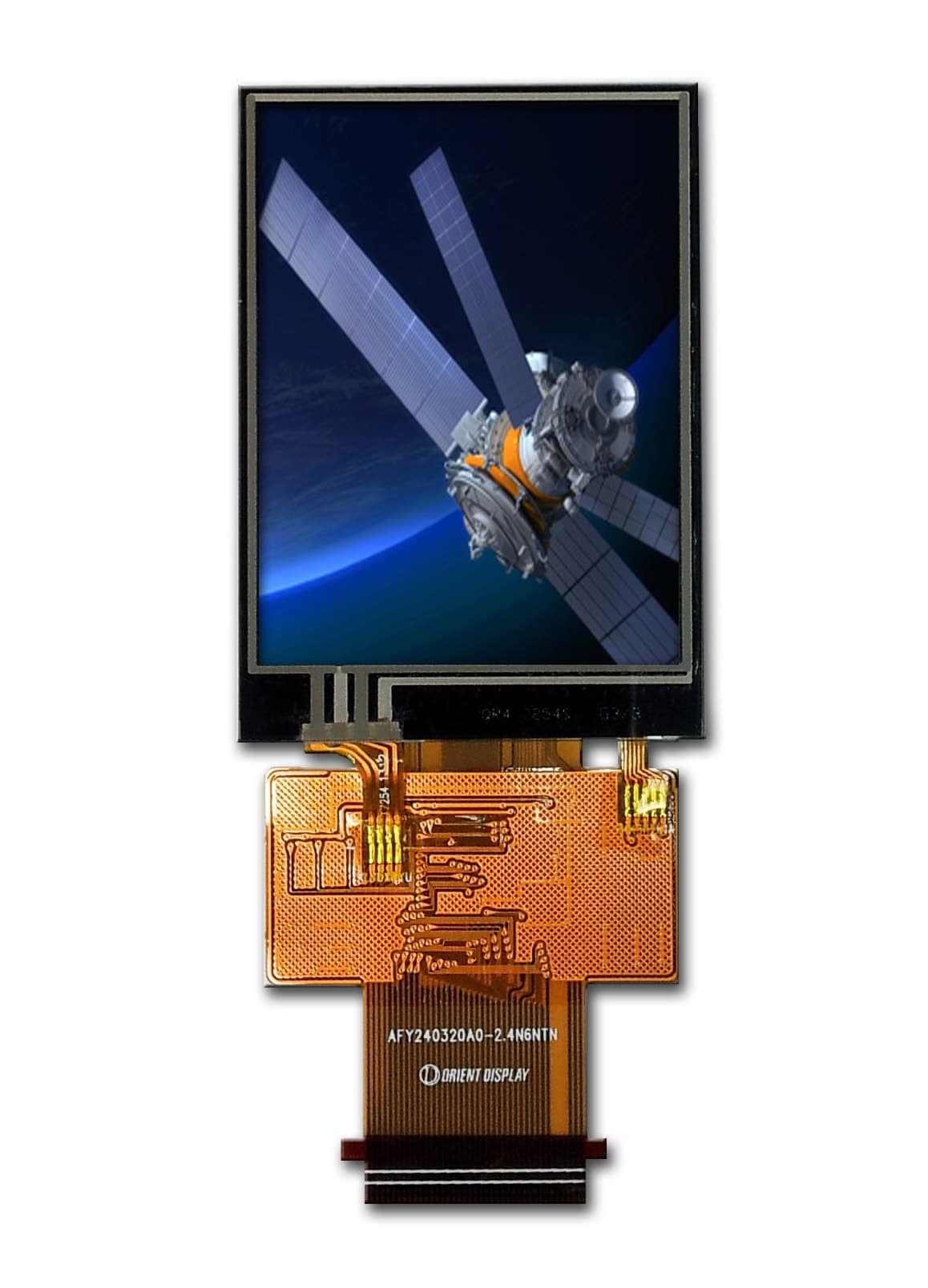

2.4″ TFT, 240×320, 220 Nits with Resistive Touch Panel
Original price was: $15.36.$7.68Current price is: $7.68.CONTACT FOR VOLUME PRICING
428 in stock
Ships from Seattle- Final sale: Non-refundable.
- Product is EOL, Do not suggest for new design.
- Diagonal Dimension: 2.4 Inch
- Resolution: 240 x 320 pixels
- Interface: MCU 16BITS
- Luminance: 220 cd/m2
- Viewing Direction: 6 o’clock
- Touch Panel: Resistive (RTP)
Description
(Final Sale)
A simple 2.4″ Full Color / Medium Brightness TFT Module, Transmissive / Normal White with 240 x (RGB) x 320 dots.
- 2.4″ TFT, 240 x (RGB) x 320
- Full Color / Medium Brightness TFT Module
- Transmissive / Normal White / Resistive Touch Panel (RTP)
- Six o’clock Viewing Direction
- Operating Temp: -20°C to 70°C
- Storage Temp: -30°C to 80°C
- ROHS Compliant
| Model / Series Name | AFY240320A0-2.4N6NTN-R |
| Diagonal Dimension (inch) | 2.4 |
| Dots WxH | 240 x 320 |
| Module Size WxHxT max (mm) | 42.7 x 60.26 x 3.75 |
| Display Mode | 262K TFT / Transmissive / Normal White |
| IC | ILI9341 (see IC Controller Example Codes) |
| Interface Type | MCU 18 BITS |
| Logic Power Supply Voltage | 2.8V |
| Backlight | 4 Chip White LED, lf = 60 mA |
| Luminance | 220 cd/m2 |
| Touch Panel | Resistive |
These are just few of our famous TFT modules; we still have a lot of TFT products to offer.
If none of these part numbers meet your requirements in terms of brightness, interface, or connection method, please email us at info@orientdisplay.com.
Custom Made Options
FPC or Cable Customization
Obtain a customized cable or FPC to enhance the security and efficiency of your connections, by adjusting cable length, position, pinout, or adding extra connectors.
Touch Panel with Optical Bonding
Improve your user experience by incorporating either capacitive or resistive touch screen. We will tailor the thickness, color or shape of the touch panel and cover lens to seamlessly integrate with your design with or without OCA or OCR bonding.
GUI or Interface Customization
Select the most suitable connection or GUI interface. We can integrate various interfaces such as HDMI, USB, SPI, I2C, UART, MCU, VGA, and others into your display to fulfill your design objective.
Contact Us
Additional information
| Weight | 0.18 lbs |
|---|---|
| Dimensions | 60.26 × 42.70 × 3.75 mm |
| backlightcolor | White |
| diagonal-size | 2.4 |
| displaytype | TFT – TN |
| polarizertype | Transmissive |
| resolution | 240×320 |
| touchpanel | Resistive Touch Panel |
| viewingdirection | 6 o'clock |
| interface | MCU |
