Methods for Securing TFT and OLED Display Panels in an Enclosure

Most Common Mounting Methods (Consumer Displays / Laptops)

1. Front Bezel Snap-Fit

Principle

• The panel is inserted from the front
• A plastic front bezel uses snap-fit clips to hold the panel around its perimeter
• The rear cover is then assembled as a whole

Pros

• Low cost and fast assembly
• No screws required (or very few)

Cons

• Moderate impact resistance
• Snap clips are prone to damage after repeated disassembly

Commonly Used In

• Laptop computers
• Low-cost monitors
• All-in-one PC front housings

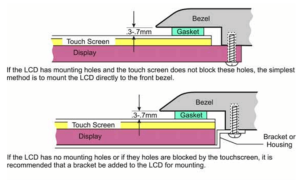

2. Screw + Bracket Mounting (Most Secure)

Principle

• The four corners and/or edges of the panel have VESA or M2/M3 mounting holes
• The panel is fastened to the rear housing using PCB, metal, or plastic brackets
• The front bezel is used only for decoration and dust protection

Pros

• High structural strength
• Controlled load on the panel (prevents glass damage)
• Easy to service and repair

Cons

• Slightly higher cost
• More assembly steps

Commonly Used In

• Desktop monitors
• Industrial displays
• Medical / commercial equipment

Thin and Bezel-Less Display Solutions

3. Double-Sided Tape / Adhesive Bonding

Principle

• High-strength double-sided tape (such as 3M VHB) or high-strength adhesives are applied along the panel edges
• The panel is bonded directly to the mid-frame or metal backplate

Pros

• Ultra-thin and minimalist design
• Excellent appearance (narrow bezels)

Cons

• Difficult to repair or rework
• High requirements for assembly precision
• Thermal expansion and contraction must be carefully considered

Commonly Used In

• Ultra-thin displays
• OLED displays
• Tablets / high-end all-in-one PCs

4. Metal Mid-Frame Clamping (High-End Approach)

Principle

• The panel is placed into a CNC-machined metal mid-frame
• Slight clamping lips are formed around the perimeter
• Screws secure the backplate, creating an overall clamping structure

Pros

• Extremely high rigidity
• Even stress distribution on the panel
• Good thermal dissipation

Cons

• High cost
• Complex mechanical design

Commonly Used In

• High-end professional monitors
• Industrial control displays
• High-brightness outdoor displays

Industrial / Automotive / Vibration-Resistant Applications

5. Backplate Tray + Shock-Absorbing Pads

Principle

• The panel is placed on a metal tray
• Silicone or foam shock-absorbing pads are added around the perimeter
• Screws are used to secure the assembly without directly pressing on the panel

Characteristics

• Excellent vibration and impact resistance
• Prevents stress concentration on the glass
• Long service life

Cons

• Thicker overall structure

Commonly Used In

• Automotive displays
• Military / industrial equipment
• Outdoor devices

A Typical “Combined Structure” of a Display

• Front Bezel (snap-fit / decorative)
• Panel (LCD / OLED)
• Foam / Double-Sided Tape / Brackets
• Metal Mid-Frame / Plastic Frame
• Main PCB + Backplate

In real products, multiple methods are almost always combined, for example:

• Snap-fit + screws
• Adhesive bonding + mid-frame
• Tray + shock-absorbing pads + screws

Common Design Pitfalls (Very Important)

1. Never press directly on the glass with screws

• Brackets or pressure plates must be used

2. Leave clearance at the edges for thermal expansion

• LCD panels can deform under temperature changes

3. Avoid localized stress

• Otherwise, “Newton rings / mura / dark spots” may appear

4. Provide strain relief for flex cables

• FPCs must have sufficient bend radius
