A High Transparent LCD Display without a polarizer has been developed. Its name is Polymer Nematic Liquid Crystal Display (PNLC).  A PNLC is a nematic liquid crystal system lightly cross-linked with a polymer network formed by in-situ photopolymerization so that the Liquid Crystal will present off and on states in the electrified state. This puts PNLC between:  Conventional nematic LCDs (TN / IPS / VA) and Polymer-dispersed systems (PDLC).

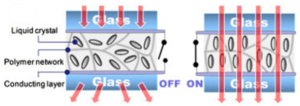

Diagram of a PNLC cell between glass and conducting layers, with liquid crystal in a polymer network in OFF and ON states

How PNLC Works (Step-by-Step)

  1. Material Structure

  • Nematic LC host (high birefringence is common)
  • ~1–5 wt% polymerizable monomer
  • UV curing forms a continuous but sparse polymer network
  1. Optical States

OFF state (no field):

  • LC director is distorted by polymer anchoring
  • Produces:
    • Controlled scattering, or
    • Randomized birefringence

ON state (electric field applied):

  • LC aligns with the field
  • Polymer network limits flow but allows reorientation
  • Optical state becomes uniform

Two transparent PNLC segment displays showing time, humidity and temperature readings

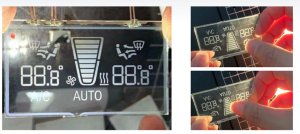

Transparent PNLC climate control segment display with temperature digits and fan bars, held up and lit in two close-ups

Key Features

  • Transparent with transmission rate: ~90% (without polarizer used)
  • Fast response: ~20ms at 10V, ~120ms at 5V
  • Contrast Rate (CR): ~3.
  • Vop: 3.3-10V
  • Current consumption: 1mA/3.3V
  • Interface: Parallel, SPI or I2C
  • Temperature range: Storage: -30℃~80℃, Operating: -20℃~70℃
  • Dyes can be added to produce different high transparent color displays.

Applications

Driver's view of a head up display projecting speed onto the windshield above the dashboard

Vehicular Head Up Display



Illustration of a transparent PNLC display panel showing simple segment icons in front of a window at home

Smart Home



Aircraft head up display with green flight symbology over a view of the sky

Aviation



Outdoor digital watch with a segment display showing time and compass bezel, a wearable application

Wearable



For more information about our PNLC capabilities, please checkout our newsletter.

If you have any questions, please contact our engineering.

Frequently asked questions

What is a PNLC display?

Polymer Nematic Liquid Crystal Display (PNLC) is a high-transparency LCD that works without a polarizer. It is a nematic liquid crystal lightly cross-linked with a polymer network formed by in-situ photopolymerization, sitting between conventional nematic LCDs (TN, IPS, VA) and polymer-dispersed systems (PDLC).

How does a PNLC display work?

With no field, the LC director is distorted by polymer anchoring, producing controlled scattering or randomized birefringence. When an electric field is applied, the LC aligns with the field and the optical state becomes uniform.

What are the key specs of a PNLC display?

Transmission is about 90% with no polarizer, and contrast ratio is about 3. Response is about 20 ms at 10 V and 120 ms at 5 V, with Vop of 3.3 to 10 V and 1 mA at 3.3 V. It supports parallel, SPI or I2C and operates from -20℃ to 70℃.

Where can PNLC displays be used?

Vehicular head up displays, smart home, aviation and wearables. Dyes can be added to produce different high-transparency color displays.
