Touch Panels

More information

Orient Display- offering touch panels, touch displays and touch control boards with top-notch products at attractive prices.

Orient Display is a company that specializes in manufacturing touch panels, touch screen display, touch screen display board and many more. The company was founded in 1996 by specializing in fields of production, R&D, quality controls. Thanks for the management and employee’s continuous hardworking and enormous effort and shareholder continuous investment over years, Orient Display factory is now the world’s lead touch panel display manufacturer in flat panel industry and is listed as a public company in China stock market. Orient Display factory started the effort in research and development capacitive touch panel in 2008. Now, Orient Display factory has 3 plants that can produce touch screen sensors around 500,000 sqm/year. Factories have complete quality and environment management system, ISO9001, ISO/IATF16949, ISO14001, IECQ QC080000. It is also No.1 in the world for automotive capacitive touch screen which took around 18% market share in the world automotive market.

In the touch screen display area, Orient Display is specialized in the following area,

Touch Panel Technology Generations

  • 1st generation: with flat display area and flat touch area, the border can be curved. Orient Display uses glass touch sensor and IML (In-Mold Lamination) technology to produce the products.
  • 2nd generation: with flat display area and flat touch area, the border area can be flat or cuver in the middle. Orient Display still uses glass touch sensor and cold bending lens to produce this kind of products.
  • 3rd generation: with flat display area and curve touch area, the border area can be flat or cuver in the middle. Orient Display uses glass or film touch sensor and hot bending lens to produce this kind of products.
  • 4th generation: with curve display area and curve touch area, the border area can be flat. Orient Display uses flexible touch sensor to produce this kind of products.

Main Stream Capacitive Touch Panel Technologies

Orient can provide the traditional GG (Glass Glass) touch screen, OGS (One Glass Solution) touch screen, PG (Plastic Glass) touch screen. GF (Glass Film) touch screen, GFF (Glass Film Film) touch screen.

Based on the above five types of touch panel technology, Orient Display can also add different kinds of features like different material glove or stylus or pencil touch, water environment touch, salt water environment touch, hover touch, force (3 dimensional) touch, haptic touch etc. Orient Display can also provide from very low-cost fixed area button touch, single (one) finger touch, double finger (finger+ gesture) touch, 5 finger touch, 10 points touch or even 16 points touch.

Considering the different shapes of the touch surface requirements, Orient Display can produce different shapes of 2D touch panel (rectangle, round, octagon etc.), or 2.5D touch screen (round edge and flat surface to create edge-less impression) or 3D (totally curved surface) touch panel.

Considering different strength requirements, Orient Display can provide low-cost chemical tampered soda-lime glass, Asahi (AGC) Dragontrail glass and Corning highest generation Gorilla glass. With different thickness requirement, Orient Display can provide the thinnest 0.5mm OGS touch panel, to thickness more than 10mm tempered glass to prevent vandalizing, or different kinds of plastic touch panel to provide glass piece free (fear) or flexible substrates need.

Different Kinds of Surface Treatments and Assembly

Orient Display can also provide full customized or part customized solutions for our customers to enhance the viewing experience. Orient Display can provide all the different kinds of surface treatments, such as AR (Anti-reflection); AG (Anti-glare), AF (Anti-finger print or Anti-smudge); AS (Anti-smashing); AM (Anti-microbial), IMITO (Index Matching Indium Tin Oxide), Anti Sparkling etc.

Orient Display can also provide both dry bonding (OCA, Optical Clear Adhesive), or wet bonding (OCR, Optical Clear Resin and OCG, Optical Clear Glue) to get rid of light reflective in air bonding products to produce high end touch screen monitor much more readable under sunlight and much more robust as well.

Full Integration Solution

Touch panels have been a much better human machine interface which become widely popular. Orient Display has been investing heavy for capacitive touch screen sensor manufacturing capacity and LCD module production ability. With Orient huge production capacity, top notch quality, and competitive pricing, Orient has been working with top LCD panel manufacturers ,AUO, BOE, LG, Innolux and top touch controller manufacturers , Atmel (Microchip, Cypress, Synaptics, Elan, NXP, Goodix, Sharp, Hydis etc. to provide the best touch display technology in the market, such as IPS, MVA, in-cell, on-cell, automotive grade etc.

  • Panda BlackTM Cluster Len

It is a new technology replace ink printing cover plate with visual area and black border area are integrated with seamless black design using AG/AR surface treatment. Non ink printing AR/AR seamless black optical cover plate can be customized to match touch display module to achieve the best integrated seamless black solution.

  • 30” Cover Laminated Capacitive Touch Panel for Home Application

Orient uses GG (Glass-Glass) technology to provide 30” fascia. Large size OCR bonding breask the size limit of OCA bonding platform.

  • Large Size Curved Lamination

With high transmittance rate of over 90% low optical delay, no interference and Moore fringe phenomenon, low square resistance ITO of lower than 20 ohms , white and clear with yellow index Yi around 1, bending resistance which can last 200,000 times with bending radius R6.5.

  • Flexible Touch Screen

With high transmittance rate of over 90% low optical delay, no interference and Moore fringe phenomenon, low square resistance ITO of lower than 20 ohms, white and clear with yellow index Yi around 1, bending resistance which can last 200,000 times with bending radius R6.5.

  • Smoke Film

Orient Display developed a special smoke film which is very low cost but gives the customer a optical bonding performance. Smoke film uses optical interference to reduce the glass-air interface reflection for air (perimeter) bonding between LCD and touch screen.

  • Large-Scale Flexible Mini-LED Touch Display

With resolution 4K or FHD or HD, refresh frequency of 60Hz, contrast is bigger than 10,000:1, pitch is 0.1mm.

  • Black-light Oriented Naked-eye 3D Display

With 3D resolution of 1920 (RGB) x 1080, refresh frequency of 120Hz, contrast ratio of 1,000:1 and viewing angle of 25/25/25/25

If you have any questions about Orient Display technologies and products, feel free to contact our engineers for details.

Showing 1–24 of 40 results

Show sidebar

2.4″ Sunlight Readable IPS, 240×320, 800 Nits with Resistive Touch Panel

$15.37
  • Model / Series Name: AFY240320A0-2.4INTH-R
  • Diagonal Dimension: 2.4 inch
  • Dots WxH: 240 x 320
  • Module Size WxHxT max (mm): 42.72 x 58.50 x 3.30
  • Display Mode IPS / Normal black / Transmissive / Anti-glare

2.4″ Sunlight Readable IPS, 240×320, 900 Nits with Capacitive Touch Panel

$26.52
  • Model / Series Name: AFY240320A0-2.4INTH-C
  • Diagonal Dimension (inch): 2.4
  • Dots WxH: 240 x 320
  • Module Size WxHxT max (mm): 43.22 x 60.31 x 3.93
  • Display Mode: IPS / Normal black / Transmissive / Anti-glare

2.4″ TFT, 240×320, 370 Nits with Resistive Touch Panel

$18.08
  • Diagonal Dimension: 2.4 Inch
  • Resolution: 240 x 320 pixels
  • Interface: MCU/RGB SPI
  • Luminance: 370 cd/m2
  • Viewing Direction: 6 o'clock
  • Touch Panel: Resistive (RTP)

2.8″ Sunlight Readable IPS, 240×320, 800 Nits with Resistive Touch Panel

$22.18
  • Model / Series Name: AFY240320A0-2.8INTH-R
  • Diagonal Dimension (inch): 2.8
  • Dots WxH: 240 x 320
  • Module Size WxHxT max (mm): 50.00 x 69.20 x 3.54
  • Display Mode: IPS / Normal black / Transmissive / Anti-glare

2.8″ Sunlight Readable IPS, 240×320, 900 Nits with Capacitive Touch Panel

$32.76
  • Model / Series Name: AFY240320A0-2.8INTH-C
  • Diagonal Dimension (inch): 2.8
  • Dots WxH: 240 x 320
  • Module Size WxHxT max (mm): 50.45 x 69.90 x 4.21
  • Display Mode: IPS / Normal black / Transmissive / Anti-glare

2.8″ TFT, 240×320, 370 Nits with Resistive Touch Panel

$24.72
  • Diagonal Dimension: 2.8 Inch
  • Resolution: 240 x 320 pixels
  • Interface: MCU/RGB SPI
  • Luminance: 370 cd/m2
  • Viewing Direction: 6 o'clock
  • Touch Panel: Resistive (RTP)

3.5″ Sunlight Readable IPS, 320×240, 800 Nits with Resistive Touch Panel

$24.25
  • Model / Series Name: AFY320240A0-3.5INTH-R
  • Diagonal Dimension (inch): 3.5
  • Dots WxH: 320 x 240
  • Module Size WxHxT max (mm): 76.90 x 63.90 x 3.92
  • Display Mode: IPS / Normal black / Transmissive / Anti-glare

3.5″ Sunlight Readable IPS, 320×240, 900 Nits with Capacitive Touch Panel (new IC)

$32.07
  • Model / Series Name: AFY320240A0-3.5INTH-C2
  • Diagonal Dimension (inch): 3.5
  • Dots WxH: 320 x 240
  • Module Size WxHxT max (mm): 76.90 x 63.90 x 4.67
  • Display Mode: IPS / Normal black / Transmissive / Anti-glare

3.5″ TFT, 320×240, 440 Nits with Resistive Touch Panel

$24.95
  • Diagonal Dimension: 3.5 Inch
  • Resolution: 320 x 240 pixels
  • Interface: RGB
  • Luminance: 440 cd/m2
  • Viewing Direction: 12 o'clock
  • Touch Panel: Resistive (RTP)

3.5″ TFT, 320×240, 495 Nits with Capacitive Touch Panel (new CTP IC)

$35.92
  • Diagonal Dimension: 3.5 Inch
  • Resolution: 320 x 240 pixels
  • Interface: RGB
  • Luminance: 495 cd/m2
  • Viewing Direction: 12 o'clock
  • Touch Panel: Capacitive (CTP)

3.5” Capacitive Touch Panel CTP035B0

$16.00
  • Diagonal Dimension: 3.5 Inch
  • Resolution: 320 x 240pixels
  • Interface: I2C
  • Touch Panel: Capacitive

4.3″ Sunlight Readable IPS, 480×272, 800 Nits with Resistive Touch Panel

$35.19
  • Model / Series Name: AFY480272A0-4.3INTH-R
  • Diagonal Dimension (inch): 4.3
  • Dots WxH: 480 x 272
  • Module Size WxHxD max (mm): 105.40 x 67.10 x 4.15
  • Display Mode: IPS / Normal black / Transmissive

4.3″ Sunlight Readable IPS, 480×272, 900 Nits with Capacitive Touch Panel

$39.35
  • Model / Series Name: AFY480272A0-4.3INTH-C
  • Diagonal Dimension (inch): 4.3
  • Dots WxH: 480 x 272
  • Module Size WxHxD max (mm): 105.50 x 67.20 x 4.85
  • Display Mode: IPS / Normal black / Transmissive

4.3″ TFT, 480×272, 260 Nits with Resistive Touch Panel

$17.16
  • Diagonal Dimension: 4.3 Inch
  • Resolution: 480 x 272 pixels
  • Interface: 24BIT RGB
  • Luminance: 260 cd/m2
  • Viewing Direction: 12 o'clock
  • Touch Panel: Resistive (RTP)

4.3″ TFT, 480×272, 420 Nits with Capacitive Touch Panel

$43.85
  • Diagonal Dimension: 4.3 Inch
  • Resolution: 480 x 272 pixels
  • Interface: RGB
  • Luminance: 420 cd/m2
  • Viewing Direction: 12 o'clock
  • Touch Panel: Capacitive (CTP)

4.3″ TFT, 480×272, 420 Nits, with Resistive Touch Panel

$32.36
  • Diagonal Dimension: 4.3 Inch
  • Resolution: 480 x 272 pixels
  • Interface: RGB
  • Luminance: 420 cd/m2
  • Viewing Direction: 12 o'clock
  • Touch Panel: Resistive (RTP)

4.3″ TFT, 480×272, High Brightness 1000 Nits, RGB Interface

$25.00
  • Diagonal Dimension: 4.3 Inch
  • Resolution: 480 x 272 pixels
  • Interface: 24BIT RGB
  • Luminance: 1000 cd/m2
  • Viewing Direction: 12 o'clock
  • Touch Panel: None

4.3” Capacitive Touch Panel CTP043B0

$17.45
  • Diagonal Dimension: 4.3 Inch
  • Resolution: 800 x 480 pixels
  • Interface: I2C
  • Touch Panel: Capacitive

4.3″ Raspberry Pi TFT with PCAP, 800×480, 680 Nits, HDMI/USB Interface

$70.88
  • TFT and HDMI Board will be shipped UNASSEMBLED
  • Model / Series Name: AFK800480A0-4.3INTH-C-HDMI
  • Diagonal Dimension (inch): 4.3
  • Dots WxH: 800 x 480
  • Module Size WxH max (mm): 105.50 x 83.40
  • Display Mode: IPS / Normal black / Transmissive

5.0″ Raspberry Pi TFT with RTP, 800×480, 800 Nits, VGA/HDMI/USB Interface

$81.88
  • TFT and HDMI Board will be shipped UNASSEMBLED
  • High Brightness / Sunlight Readable IPS
  • Diagonal Dimension: 5 Inch
  • Resolution: 800 x 480 pixels
  • Interface: VGA /HDMI / USB
  • Luminance: 800 cd/m2
  • Viewing Direction: ALL
  • Touch Panel: Resistive

5.0″ Sunlight Readable IPS, 800×480, 800 Nits with Resistive Touch Panel

$36.07
  • Model / Series Name: AFY800480A0-5.0INTH-R
  • Diagonal Dimension (inch): 5.0
  • Dots WxH: 800 x 480
  • Module Size WxHxD max (mm): 120.7 × 75.8 × 3.95
  • Display Mode: IPS / Normal black / Transmissive

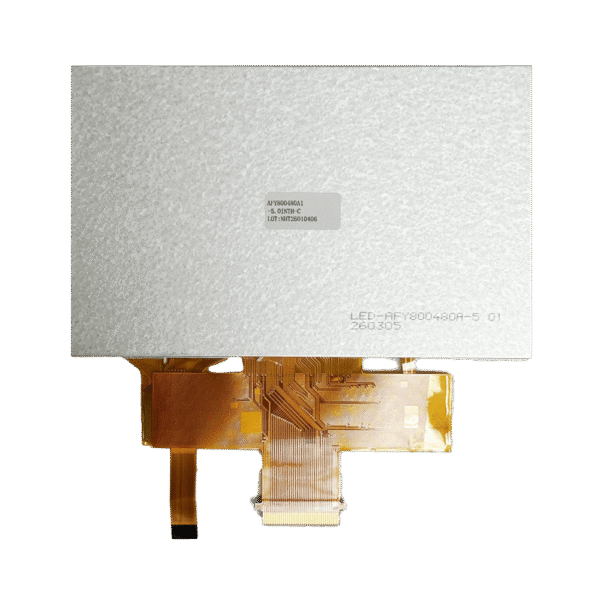

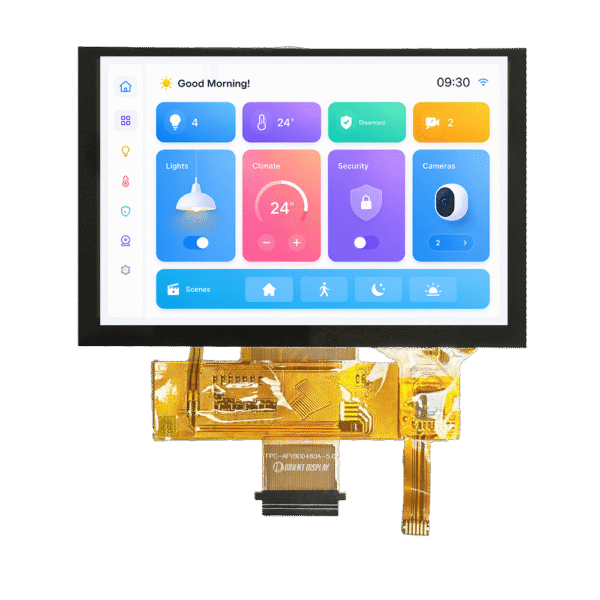

5.0″ Sunlight Readable IPS, 800×480, 900 Nits with Capacitive Touch Panel

$45.86
  • High Brightness / Sunlight Readable IPS
  • Diagonal Dimension: 5 Inch
  • Resolution: 800 x 480 pixels
  • Interface: 24bit RGB
  • Luminance: 900 cd/m2
  • Viewing Direction: ALL
  • Touch Panel: Capacitive

5.0” Capacitive Touch Panel CTP050B0

$18.35
  • Diagonal Dimension: 5.0 Inch
  • Resolution: 800 x 480 pixels
  • Interface: I2C
  • Touch Panel: Capacitive
