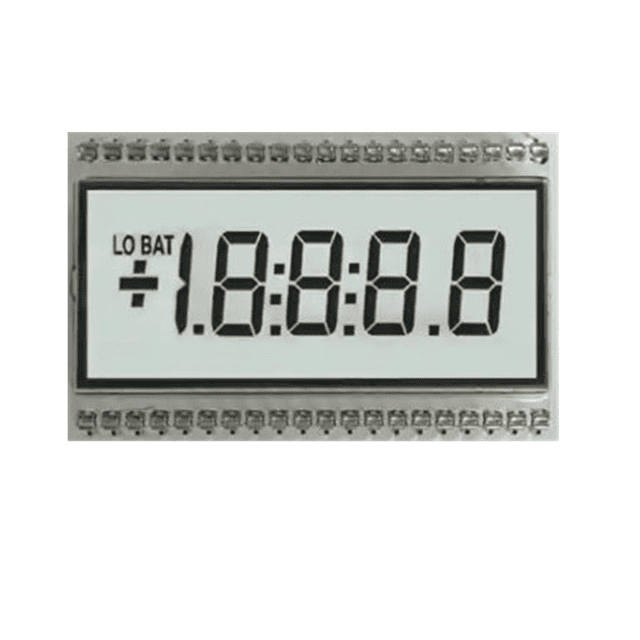

A simple TN LCD Glass Panel with pin connection. This LCD Glass has a Pin Connection for easy mounting to a socket or for soldering it directly to the circuit board.
Download Product References Below
Product Datasheet: OD-454
OD-454 (LCD Glass Panel)
$3.07CONTACT FOR VOLUME PRICING
500 in stock
- TN LCD Glass Panel
- Positive Display
- 6 o’clock Viewing Direction
- Operating Temp: -30°C to 80°C
- Storage Temp: -30°C to 80°C
- Reflective Polarizer
- ROHS Compliant
Pricing table
| Quantity | Unit Price |
|---|---|
| 25-49 | $2.65 |
| 50-99 | $2.23 |
| 100-199 | $2.07 |
| 200- | $1.86 |
Contact us for larger volume orders and any other enquiries.
Description
| Model / Series Name | OD-454 |
| No. of Digitals | 4.5 |
| Glass Size WxH (mm) | 50.80 x 30.50 |
| View Area WxH (mm) | 45.70 x 17.70 |
| No of Segments (each digit) | 7 |
| Digital Height (mm) | 10.20 |
| Connector | Pin |
Please also check out our other products under this category – LCD Glass Panels. If none of these products meet your needs, we can customize it according to your technical specifications. Please send your inquiries to info@orientdisplay.com
Additional information
| Weight | 0.21 lbs |
|---|---|
| Dimensions | 46.36 × 137.16 × 0.1 mm |
| displaytype | |
| displaymode |
