Accessary Kit for AGU and AGN series
$20.00CONTACT FOR VOLUME PRICING
86 in stock
- This Accessary Kit is made exclusively for ALL our AGU and AGN series TFT product
-

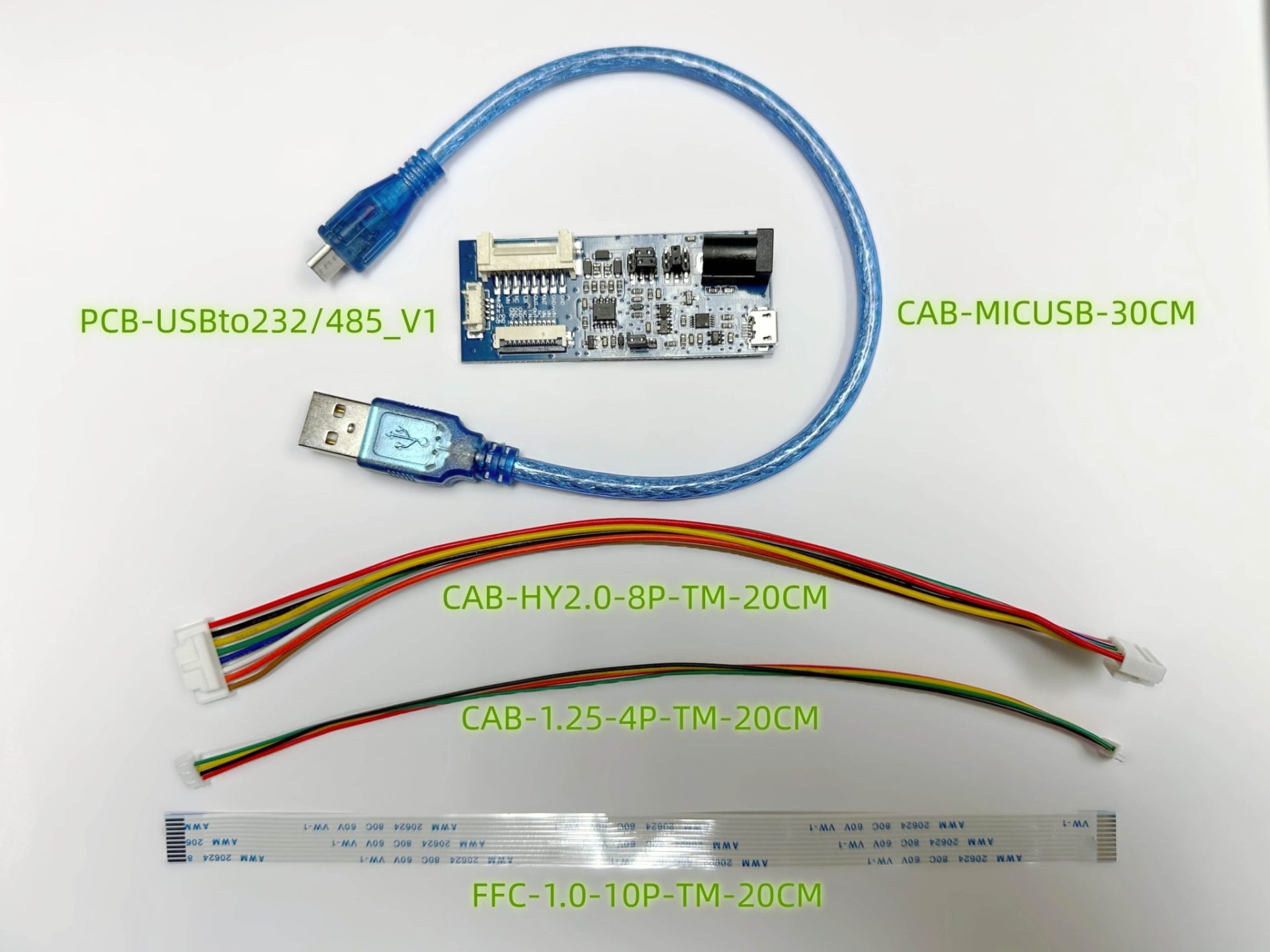

This Accessary Kit includes below items:
- PCB-USBto232/485_V1: USB to UART, RS232, RS485 Testing and Burn-in Board.
- FFC-1.0-10P-TM-20CM: Flat Flex Cable(FFC): 1.0mm pitch, 10 pins, 200 mm length.
- CAB-1.25-4P-TM-20CM: Cable, 4 pins, 1.25mm pitch, 200mm length.
- CAB-HY2.0-8P-TM-20CM: Cable, 8 pins, 2.0mm pitch, 200mm length.
- CAB-MICUSB-30CM: Cable, USB-A to Micro USB, 300mm length.
Description
This Accessary Kit is made exclusively for ALL our AGU and AGN series TFT product. The highest quality product at the lowest price. Ships from the USA.
This Accessary Kit includes below items: (Click here to download Specification of Evaluation Kit)

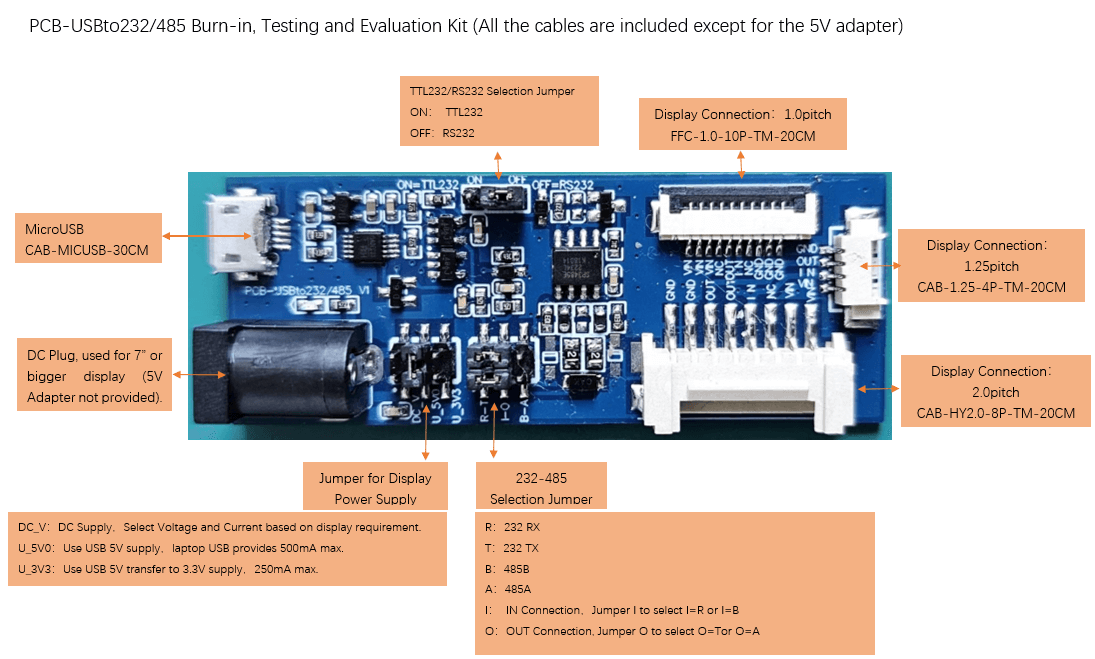

- 1pc x PCB-USBto232/485_V1: USB to UART, RS232, RS485 Testing and Burn-in Board (Click here to download the driver file).
- 1pc x FFC-1.0-10P-TM-20CM: Flat Flex Cable(FFC): 1.0mm pitch, 10 pins, 200 mm length.
- 1pc x CAB-1.25-4P-TM-20CM: Cable, 4 pins, 1.25mm pitch, 200mm length.
- 1pc x CAB-HY2.0-8P-TM-20CM: Cable, 8 pins, 2.0mm pitch, 200mm length.
- 1pc x CAB-MICUSB-30CM: Cable, USB-A to Micro USB, 300mm length.
This Accessary Kit can be used on below TFTs:
AGU series:
Download other documents for AGU series below
User Manual and Supporting Document: Download here
Tools: Download here
Other Documents: Download here
AGN series:
Please contact info@orientdisplay.com if you have questions about this product.
Additional information
| Weight | 0.05 lbs |
|---|---|
| Dimensions | 54 × 25 × 3 mm |
| displaytype |
Reviews (0)
Shipping & Delivery
