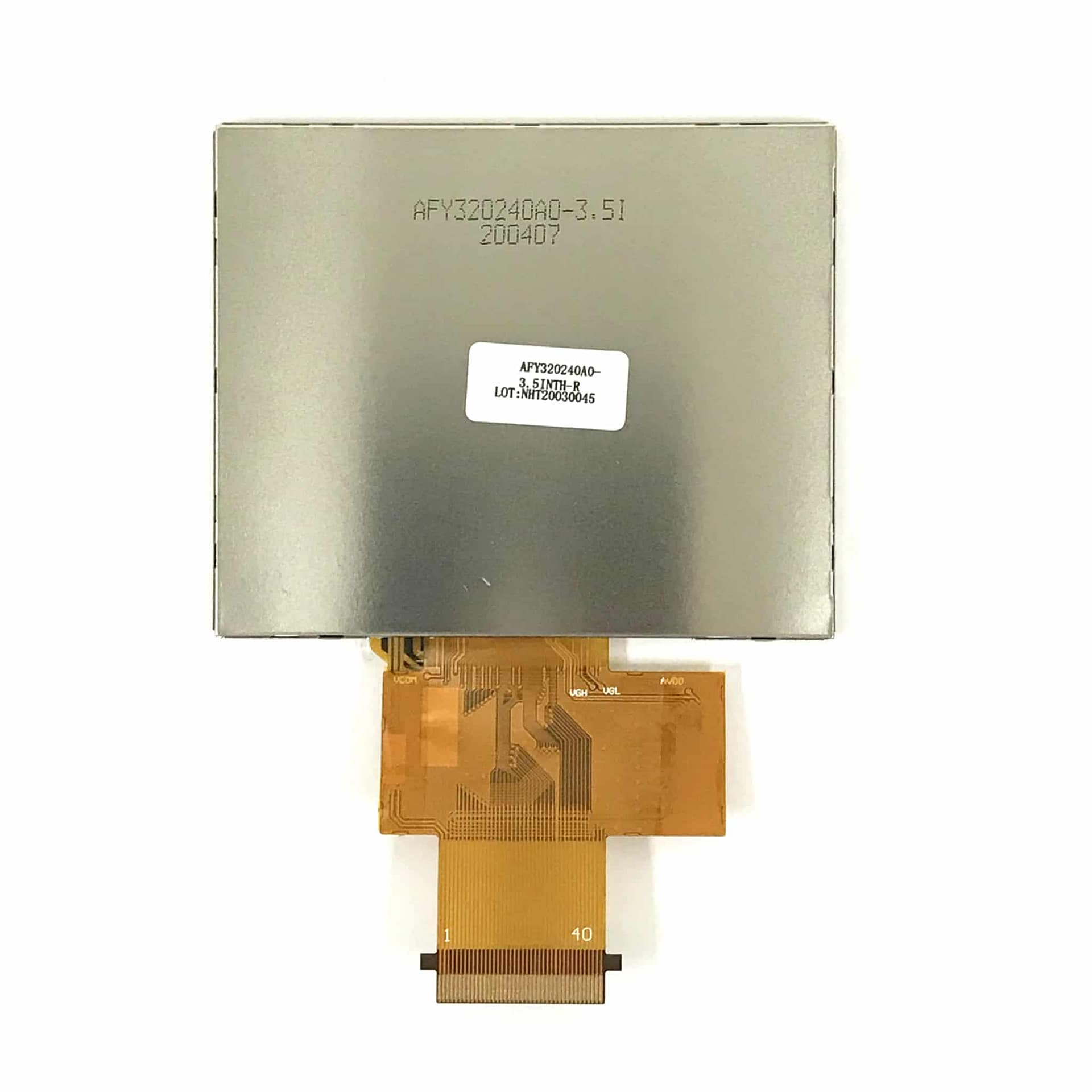

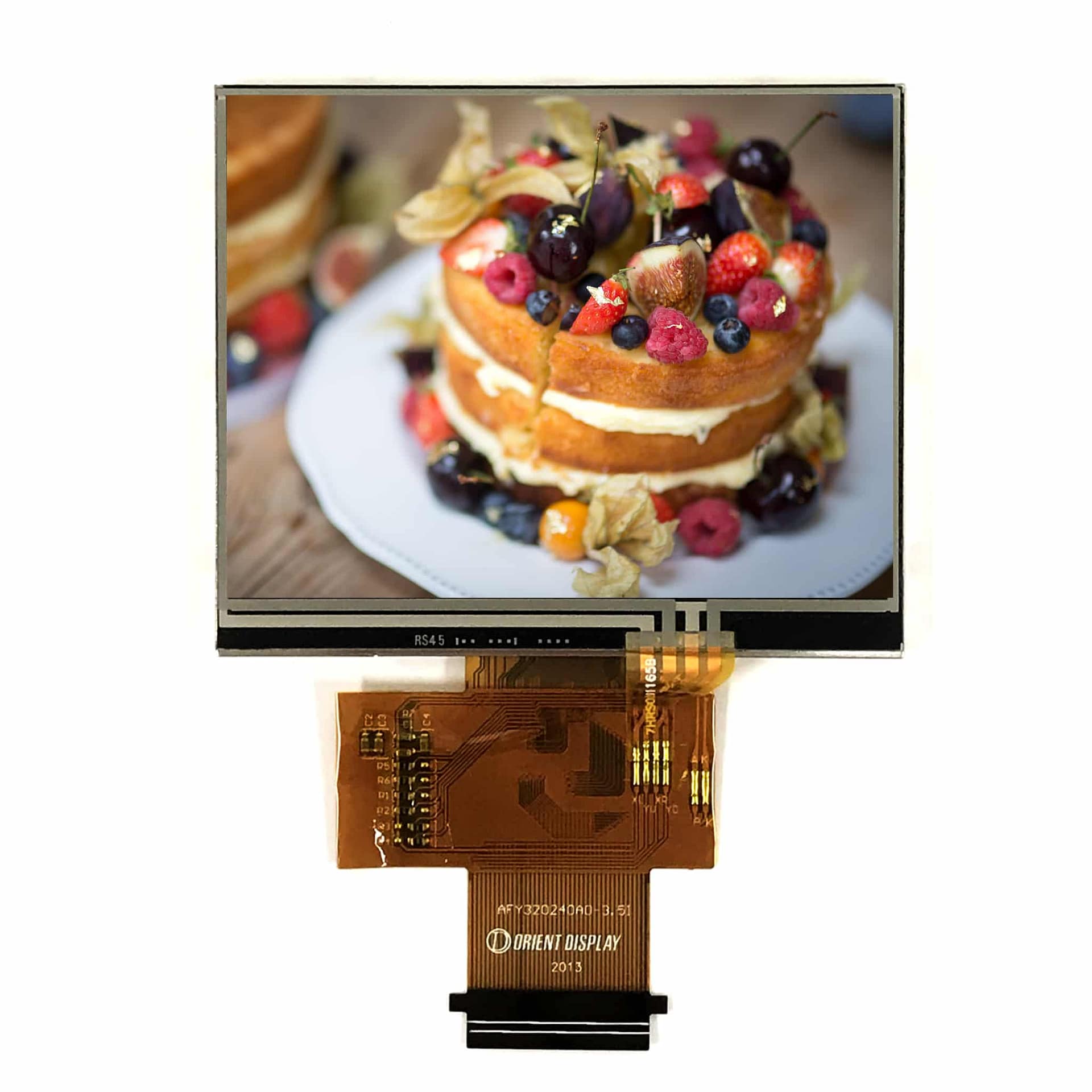

3.5″ Sunlight Readable IPS, 320×240, 800 Nits with Resistive Touch Panel

Out of stock

Model / Series Name: AFY320240A0-3.5INTH-R
Diagonal Dimension (inch): 3.5
Dots WxH: 320 x 240
Module Size WxHxT max (mm): 76.90 x 63.90 x 3.92
Display Mode: IPS / Normal black / Transmissive / Anti-glare

Pricing table

Quantity	Unit Price
25-49	$23.33
50-	$22.42

Compare

Add to wishlist

SKU: AFY320240A0-3.5INTH-R Categories: Color TFT, Resistive Touch Panels Displays, High Brightness TFT Panels, Sunlight Readable IPS TFT Panels, TFT with Touch Panels, Touch Panels

Description

A simple 3.5″ High Brightness / Sunlight Readable IPS Module, Transmissive / All Viewing Direction / Normal Black with 320 x (RGB) x 240 dots.

The highest quality product at the lowest price. Ships from the USA.

3.5″ IPS, 320 x (RGB) x 240

High Brightness / Sunlight Readable IPS

Transmissive / Normal Black / Resistive Touch Panel

ALL Viewing Direction

Operating Temp: -20°C to 70°C

Storage Temp: -30°C to 80°C

ROHS Compliant

Download Product References Below

Product Datasheet: AFY320240A0-3.5INTH-R

Controller Datasheet: ST7272A

Optional Accessory: TBD

Model / Series Name	AFY320240A0-3.5INTH-R
Diagonal Dimension (inch)	3.5
Dots WxH	320 x 240
Module Size WxHxT max (mm)	76.90 x 63.90 x 3.92
Display Mode	IPS / Normal black / Transmissive / Anti-glare
IC	ST7272A
Interface Type	SPI 24bit RGB
Logic Power Supply Voltage	3.3V
Backlight	6 Chip White LED, lf = 40 mA
Luminance	800 cd/m²
Touch Panel	Resistive

These are just few of our famous TFT modules; we still have a lot of TFT products to offer.

If none of these part numbers meet your requirements in terms of brightness, interface, or connection method, please email us at info@orientdisplay.com.

Custom Made Options

FPC or Cable Customization

Obtain a customized cable or FPC to enhance the security and efficiency of your connections, by adjusting cable length, position, pinout, or adding extra connectors.

Touch Panel with Optical Bonding

Improve your user experience by incorporating either capacitive or resistive touch screen. We will tailor the thickness, color or shape of the touch panel and cover lens to seamlessly integrate with your design with or without OCA or OCR bonding.

GUI or Interface Customization

Select the most suitable connection or GUI interface. We can integrate various interfaces such as HDMI, USB, SPI, I2C, UART, MCU, VGA, and others into your display to fulfill your design objective.

Contact Us

Additional information

Weight	0.42 lbs
Dimensions	63.90 × 76.90 × 4.4 mm
backlightcolor	White
diagonal-size	3.5
displaytype	TFT – IPS
polarizertype	Transmissive
resolution	320×240
touchpanel	Resistive Touch Panel
viewingdirection	All
interface	SPI
