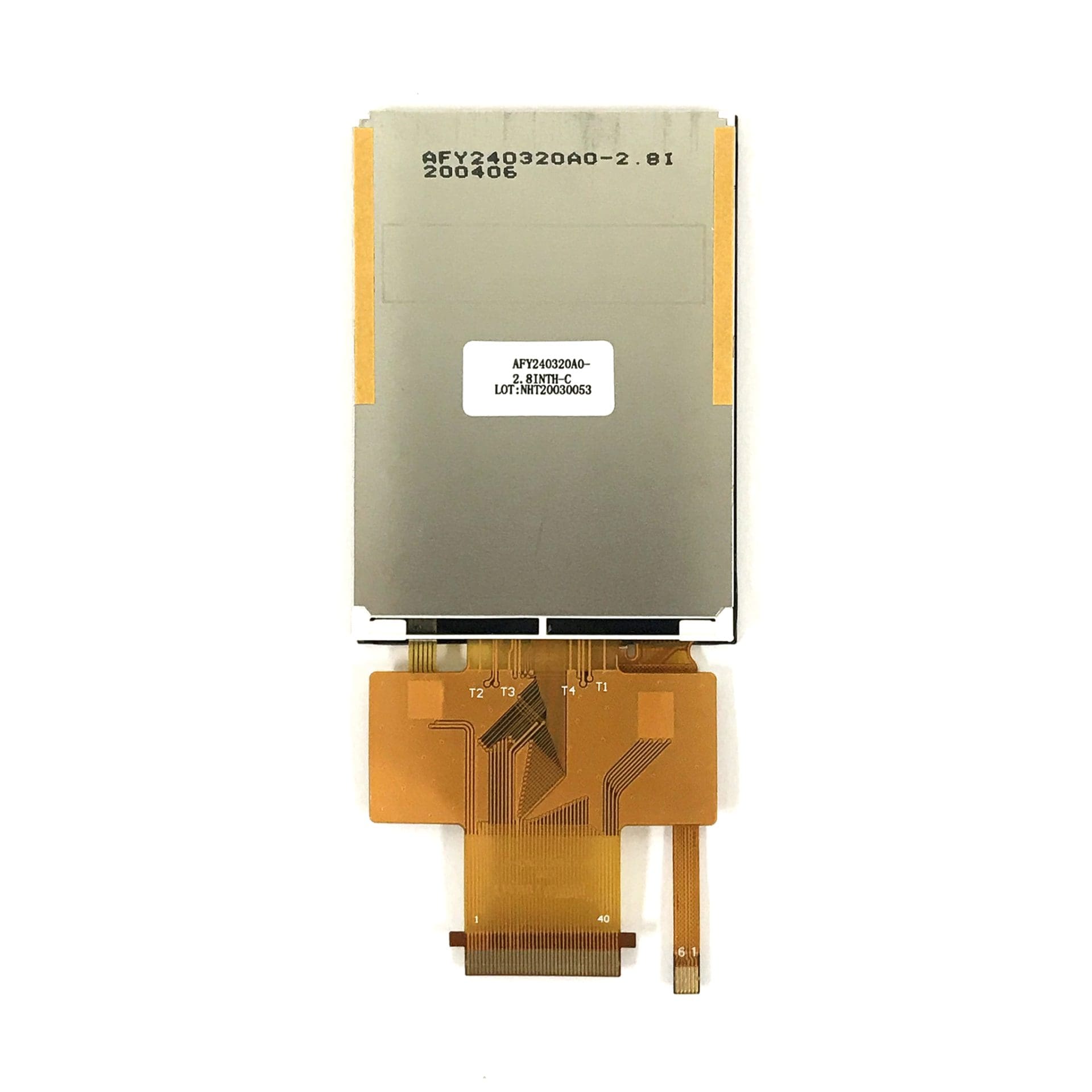

2.8″ Sunlight Readable IPS, 240×320, 900 Nits with Capacitive Touch Panel

8 in stock

Model / Series Name: AFY240320A0-2.8INTH-C
Diagonal Dimension (inch): 2.8
Dots WxH: 240 x 320
Module Size WxHxT max (mm): 50.45 x 69.90 x 4.21
Display Mode: IPS / Normal black / Transmissive / Anti-glare

Pricing table

Quantity	Unit Price
25-49	$28.79
50-	$24.82

Compare

Add to wishlist

SKU: AFY240320A0-2.8INTH-C Categories: Sunlight Readable IPS TFT Panels, TFT with Touch Panels, Color TFT, Capacitive Touch Panels Displays, Touch Panels, High Brightness TFT Panels

Description

A simple 2.8″ High Brightness / Sunlight Readable IPS Module, Transmissive / All Viewing Direction / Normal Black with 240 x (RGB) x 320 dots.

The highest quality product at the lowest price. Ships from the USA.

2.8″ IPS, 240 x (RGB) x 320

High Brightness / Sunlight Readable IPS

Transmissive / Normal Black / Capacitive Touch Panel,

ALL Viewing Direction

Operating Temp: -20°C to 70°C

Storage Temp: -30°C to 80°C

ROHS Compliant

Download Product References Below

Product Datasheet: AFY240320A0-2.8INTH-C

Controller Datasheet: ST7789VI

Optional Accessory: TBD

These are just few of our famous TFT modules; we still have a lot of TFT products to offer.

If none of these part numbers meet your requirements in terms of brightness, interface, or connection method, please email us at info@orientdisplay.com.

Model / Series Name	AFY240320A0-2.8INTH-C
Diagonal Dimension (inch)	2.8
Dots WxH	240 x 320
Module Size WxHxT max (mm)	50.45 x 69.90 x 4.21
Display Mode	IPS / Normal black / Transmissive / Anti-glare
IC	ST7789VI (see IC Controller Example Codes here)
Interface Type	SPI
Logic Power Supply Voltage	2.8V
Backlight	5 Chip White LED, lf = 100 mA
Luminance	900 cd/m²
Touch Panel	Capacitive

Custom Made Options

FPC or Cable Customization

Obtain a customized cable or FPC to enhance the security and efficiency of your connections, by adjusting cable length, position, pinout, or adding extra connectors.

Touch Panel with Optical Bonding

Improve your user experience by incorporating either capacitive or resistive touch screen. We will tailor the thickness, color or shape of the touch panel and cover lens to seamlessly integrate with your design with or without OCA or OCR bonding.

GUI or Interface Customization

Select the most suitable connection or GUI interface. We can integrate various interfaces such as HDMI, USB, SPI, I2C, UART, MCU, VGA, and others into your display to fulfill your design objective.

Contact Us

Additional information

Weight	0.21 lbs
Dimensions	69.20 × 50.00 × 3.55 mm
backlightcolor	White
diagonal-size	2.8
displaytype	TFT – IPS
polarizertype	Transmissive
resolution	240×320
touchpanel	Capacitive Touch Panel
viewingdirection	All
interface	SPI
