$14.06CONTACT FOR VOLUME PRICING
220 in stock
| Quantity | Unit Price |
|---|---|
| 25-49 | $12.36 |
| 50- | $10.66 |
Contact us for larger volume orders and any other enquiries.

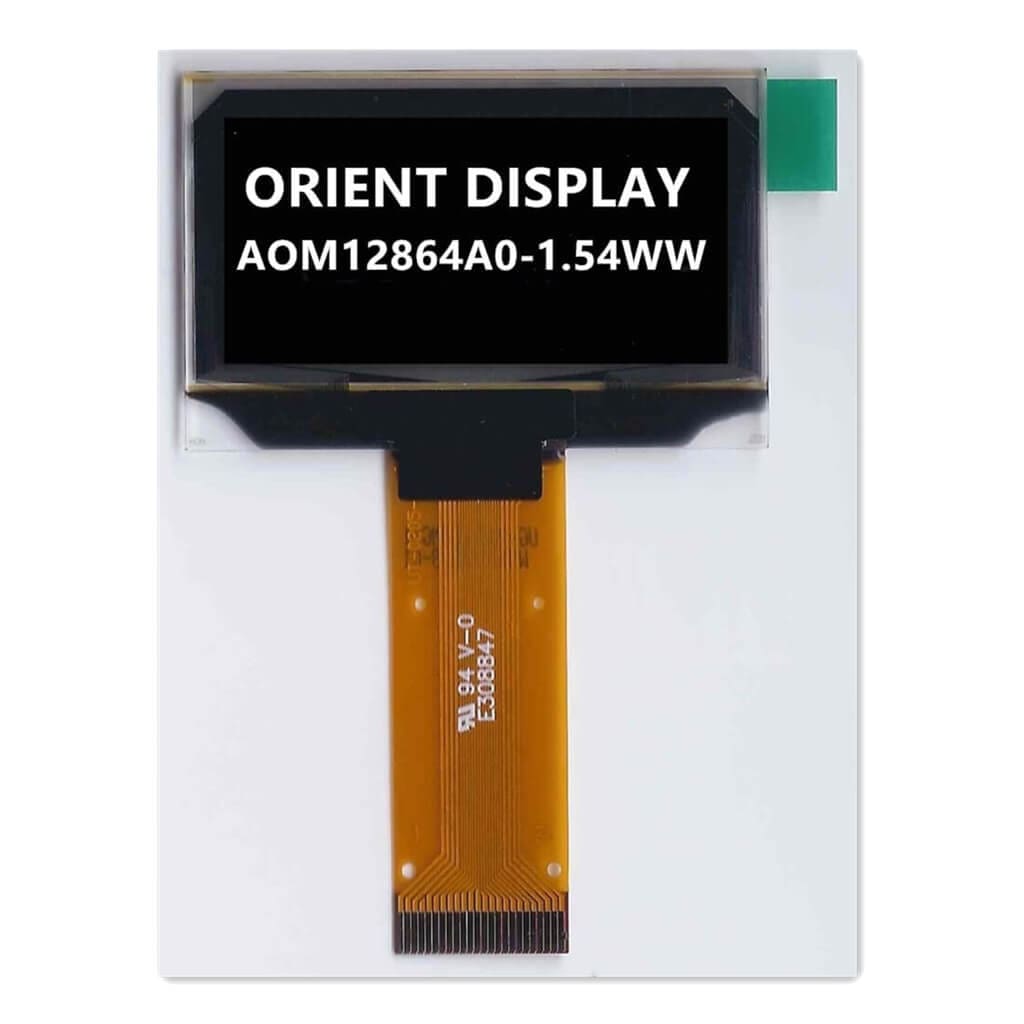

A simple 1.54″ Passive Matrix OLED, Monochrome with White display color / All viewing direction / with 128 x 64 dots.
| Model / Series Name | AOM12864A0-1.54WW |
| Diagonal Dimension (Inches) | 1.54 |
| Dots WxH | 128 x 64 |
| Module Size WxHxD max (mm) | 42.04 x 27.22 x 1.45 |
| Display Mode | OLED |
| IC | SSD1309 |
| Interface Type | 8-bit Parallel, 4-wire SPI, I2C Interface |
| Logic Power Supply Voltage | 2.8V |
| Backlight | / |
| Luminance | 120 cd/m2 |
| Touch Panel | None |
These are just few of our famous OLED modules; we still have a lot of OLED products to offer.
If none of these part numbers meet your requirements in terms of brightness, interface, or connection method, please email us at info@orientdisplay.com.
Obtain a customized cable or FPC to enhance the security and efficiency of your connections, by adjusting cable length, position, pinout, or adding extra connectors.
Improve your user experience by incorporating either capacitive or resistive touch screen. We will tailor the thickness, color or shape of the touch panel and cover lens to seamlessly integrate with your design with or without OCA or OCR bonding.
Select the most suitable connection or GUI interface. We can integrate various interfaces such as HDMI, USB, SPI, I2C, UART, MCU, VGA, and others into your display to fulfill your design objective.
