2.4″ IPS display, 240×320, 550 Nits, MIPI Interface
- Medium Brightness / IPS
- Diagonal Dimension: 2.4 Inch
- Resolution: 240 x 320 pixels
- Interface: MIPI
- Luminance: 550 cd/m2
- Viewing Direction: ALL
- Touch Panel: None
2.4″ Sunlight Readable IPS, 240×320, 1000 Nits, RGB/MCU/SPI Interface
- High Brightness / Sunlight Readable IPS
- Diagonal Dimension: 2.4 Inch
- Resolution: 240 x 320 pixels
- Interface: RGB/MCU/SPI
- Luminance: 1000 cd/m2
- Viewing Direction: ALL
- Touch Panel: None
2.4″ Sunlight Readable IPS, 240×320, 800 Nits with Resistive Touch Panel
Sunlight Readable IPS TFT Panels, TFT with Touch Panels, Color TFT, Resistive Touch Panels Displays, Touch Panels, High Brightness TFT Panels
- Model / Series Name: AFY240320A0-2.4INTH-R
- Diagonal Dimension: 2.4 inch
- Dots WxH: 240 x 320
- Module Size WxHxT max (mm): 42.72 x 58.50 x 3.30
- Display Mode IPS / Normal black / Transmissive / Anti-glare
2.4″ Sunlight Readable IPS, 240×320, 800 Nits with Resistive Touch Panel, RGB/MCU/SPI Interface
- High Brightness / Sunlight Readable IPS
- Diagonal Dimension: 2.4 Inch
- Resolution: 240 x 320 pixels
- Interface: RGB/MCU/SPI
- Luminance: 800 cd/m2
- Viewing Direction: ALL
- Touch Panel: Resistive
2.4″ Sunlight Readable IPS, 240×320, 900 Nits with Capacitive Touch Panel
TFT with Touch Panels, Color TFT, Capacitive Touch Panels Displays, Touch Panels, High Brightness TFT Panels, Sunlight Readable IPS TFT Panels
- Model / Series Name: AFY240320A0-2.4INTH-C
- Diagonal Dimension (inch): 2.4
- Dots WxH: 240 x 320
- Module Size WxHxT max (mm): 43.22 x 60.31 x 3.93
- Display Mode: IPS / Normal black / Transmissive / Anti-glare
2.4″ Sunlight Readable IPS, 240×320, 900 Nits with Capacitive Touch Panel (new IC), RGB/MCU/SPI Interface
- High Brightness / Sunlight Readable IPS
- Diagonal Dimension: 2.4 Inch
- Resolution: 240 x 320 pixels
- Interface: RGB/MCU/SPI
- Luminance: 900 cd/m2
- Viewing Direction: ALL
- Touch Panel: Capacitive
2.4″ Sunlight Readable IPS, 240×320, 900 Nits with Capacitive Touch Panel, RGB/MCU/SPI Interface
- High Brightness / Sunlight Readable IPS
- Diagonal Dimension: 2.4 Inch
- Resolution: 240 x 320 pixels
- Interface: RGB/MCU/SPI
- Luminance: 900 cd/m2
- Viewing Direction: ALL
- Touch Panel: Capacitive
2.4″ TFT, 240×320, 370 Nits with Resistive Touch Panel
TFT with Touch Panels, Color TFT, Touch Panels, Resistive Touch Panels Displays, Medium Brightness TFT Panels
- Diagonal Dimension: 2.4 Inch
- Resolution: 240 x 320 pixels
- Interface: MCU/RGB SPI
- Luminance: 370 cd/m2
- Viewing Direction: 6 o'clock
- Touch Panel: Resistive (RTP)
2.4″ TFT, 240×320, 460 Nits
- Diagonal Dimension: 2.4 Inch
- Resolution: 240 x 320 pixels
- Interface: MCU/RGB SPI
- Luminance: 460 cd/m2
- Viewing Direction: 6 o'clock
- Touch Panel: None

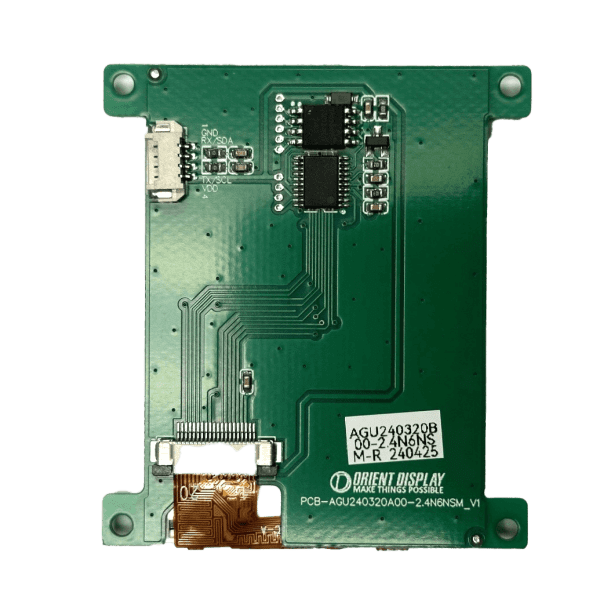

2.4” TN TFT display with UART interface, 240×320, 370nits, with Resistive Touch Panel
Embedded TFT Modules, Medium Brightness TFT Panels, AGU, AGN series UART Interface, TFT with Touch Panels, Color TFT
- Diagonal Dimension: 2.4 Inch
- Resolution: 240 x 320 pixels
- Luminance: 370cd/m2
- Viewing Direction: 6 O'clock
- Touch Panel: Resistive
- Interface: UART
- Optional Accessary: Accessary Kit
- Download other documents for AGU series here: Supporting Documents and Software Tools
2.4” TN TFT display with UART interface, 240×320, 460nits
- Diagonal Dimension: 2.4 Inch
- Resolution: 240 x 320 pixels
- Luminance: 460cd/m2
- Viewing Direction: 6 O'clock
- Touch Panel: None
- Interface: UART
- Optional Accessary: Accessary Kit
- Download other documents for AGU series here: Supporting Documents and Software Tools
2.4” IPS TFT, 240×320, MCU Interface, 300nits
- Medium Brightness / IPS
- Diagonal Dimension: 2.4 Inch
- Resolution: 240 x 320 pixels
- Interface: MCU 8/9/16/18-bit
- Luminance: 300 cd/m2
- Viewing Direction: ALL
- Touch Panel: None
2.4” TN TFT, 240×320, MCU Parallel Interface, 900nits
- High Brightness / TN
- Diagonal Dimension: 2.4 Inch
- Resolution: 240 x 320 pixels
- Interface: 18 BITS MCU Parallel
- Luminance: 900 cd/m2
- Viewing Direction: 6 o'clock
- Touch Panel: None
2.4″ TN TFT display with UART interface, 240×320, 300nits with Resistive Touch Panel
Embedded TFT Modules, Medium Brightness TFT Panels, AGU, AGN series UART Interface, TFT with Touch Panels, Color TFT
- Diagonal Dimension: 2.4Inch
- Resolution: 240 x 320 pixels
- Luminance: 300cd/m2
- Viewing Direction: 12 o'clock
- Touch Panel: Resistive
- Interface: UART
- Optional Accessary: Accessary Kit
- Download other documents for AGU series here: Supporting Documents and Software Tools
- Watch Video Tutorial on Youtube
2.4″ TFT, 240×320, 220 Nits
- Final sale: Non-refundable.
- Product is EOL, Do not suggest for new design.
- Diagonal Dimension: 2.4 Inch
- Resolution: 240 x 320 pixels
- Interface: MCU 18 BITS
- Luminance: 220 cd/m2
- Viewing Direction: 6 o'clock
- Touch Panel: None
2.4″ TFT, 240×320, 220 Nits with Resistive Touch Panel
TFT with Touch Panels, Color TFT, Resistive Touch Panels Displays, On sale, Touch Panels, Special Size TFT Panels
- Final sale: Non-refundable.
- Product is EOL, Do not suggest for new design.
- Diagonal Dimension: 2.4 Inch
- Resolution: 240 x 320 pixels
- Interface: MCU 16BITS
- Luminance: 220 cd/m2
- Viewing Direction: 6 o'clock
- Touch Panel: Resistive (RTP)
